Instrument and control functions
4-12
4
5. Wait a few seconds, and then in-
stall the bleed screws.
6. Install the protector.
EAU84212
Adjusting the shock absorber
assembly
This shock absorber assembly is
equipped with a spring preload adjust-
ing nut, a rebound damping force ad-
justing screw and a compression
damping force adjusting screw.
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Spring preload
Adjust the spring preload as follows.
1. Remove the seat. (See page 4-8.)
2. Loosen the clamp bolt.
3. Remove the bolts, and then take
the panels off.

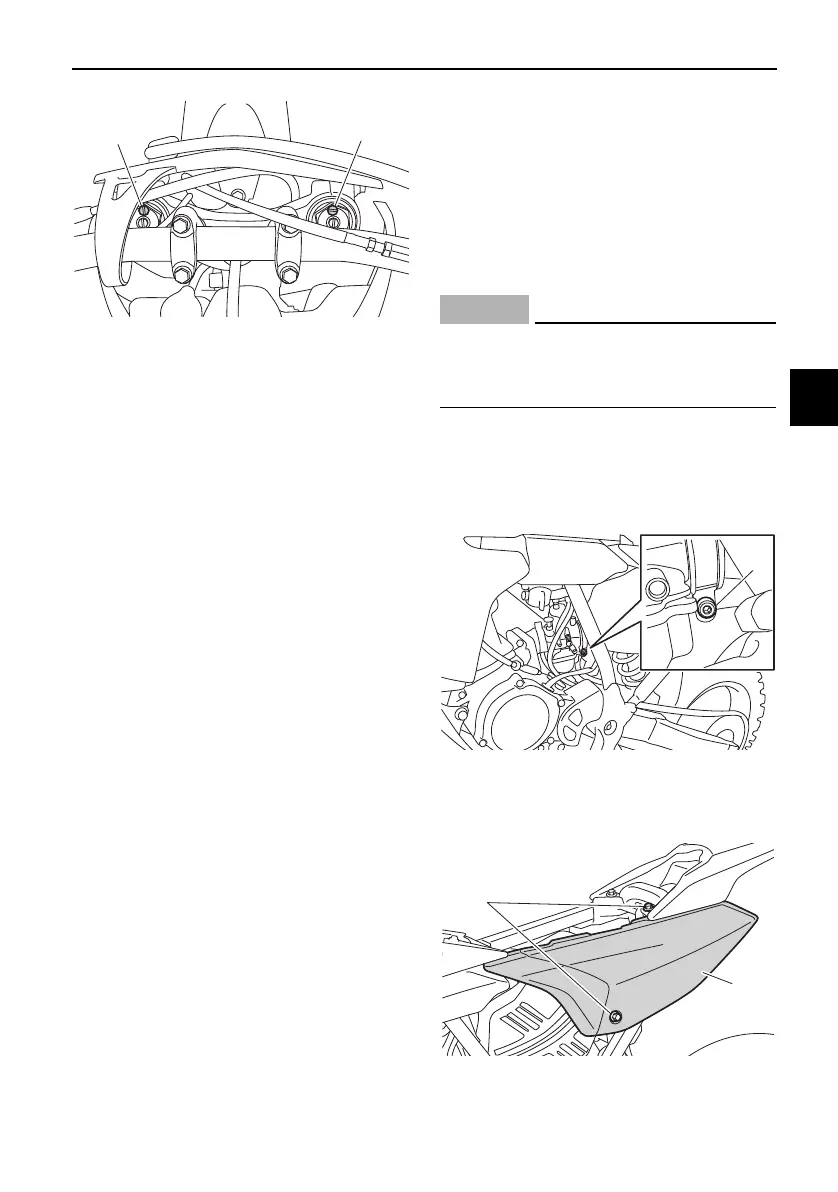

1. Bleed screw
1. Clamp bolt
1. Bolt
2. Panel
UBR811E0.book Page 12 Thursday, March 21, 2019 10:27 AM
