DESCRIPTION

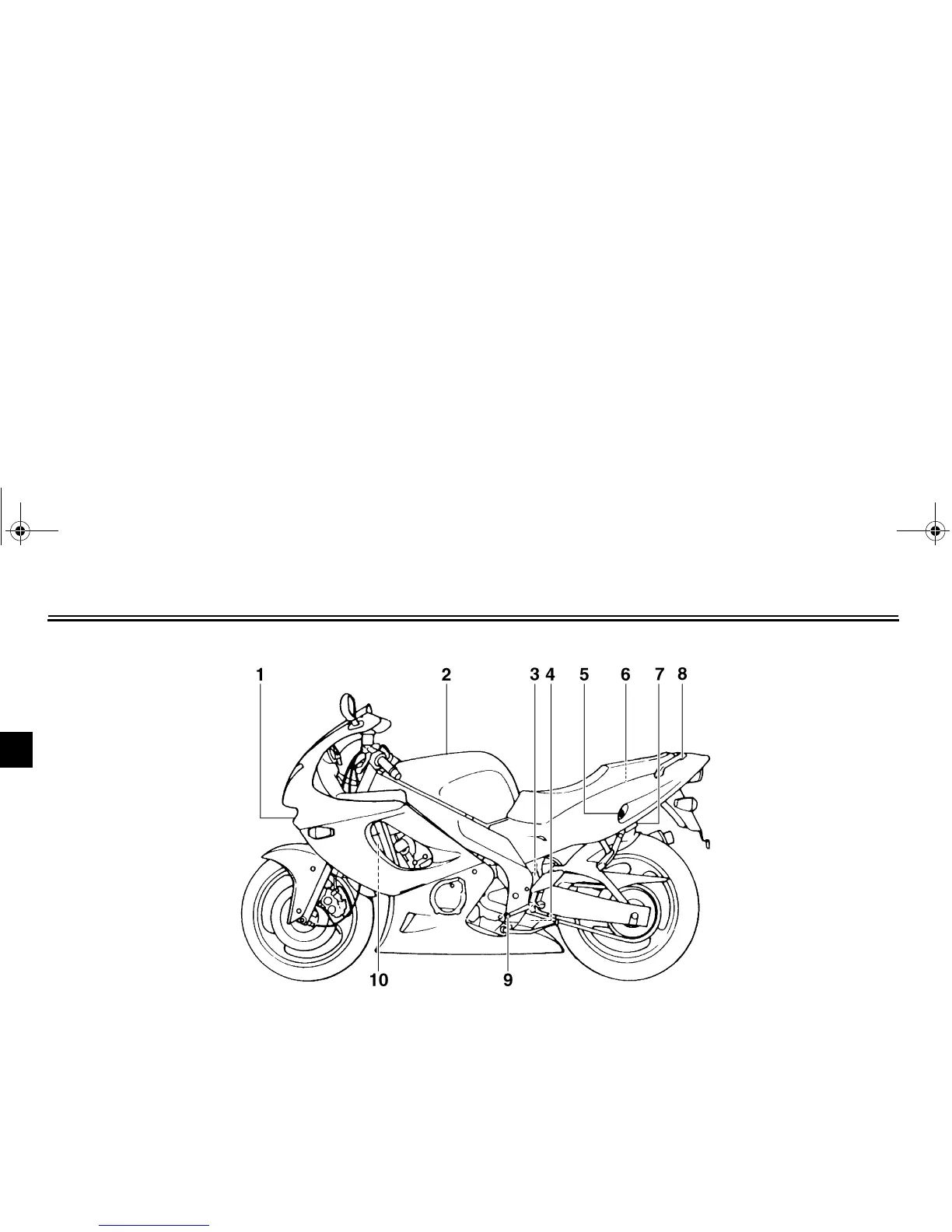

Left view
1. Air intake duct (page 6-21)
2. Fuel tank (page 3-7)
3. Shock absorber assembly spring preload adjusting ring (page 3-14)
4. Shock absorber assembly rebound damping force adjusting knob (page 3-14)
5. Shock absorber assembly compression damping force adjusting screw (page 3-15)
6. Storage compartment (page 3-11)
7. Helmet holder (page 3-10)
8. Grab bar
9. Shift pedal (page 3-6)
10. Radiator
