Indicator and warning lights
EAU00061
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU03201
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Set the engine stop switch to “”
and turn the key to “ON”.
2. Shift the transmission into the neu-
tral position or pull the clutch lever.
3. Push the start switch. If the warn-
ing light does not come on while
pushing the start switch, have a
Yamaha dealer check the electri-
cal circuit.
NOTE:
@
Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function.
@
EAU03509
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.1 L (0.7 Imp gal, 0.8 US gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Set the engine stop switch to “”
and turn the key to “ON”.
2. Shift the transmission into the neu-
tral position or pull the clutch lever.
3. Push the start switch. If the warn-
ing light does not come on, have a
Yamaha dealer check the electri-
cal circuit.
NOTE:
@
This model is equipped with a self-di-
agnosis device for the fuel level warn-
ing light circuit. (See page 3-3 for an
explanation of the self-diagnosis
device.)
@
EAU00057
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU00063
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.

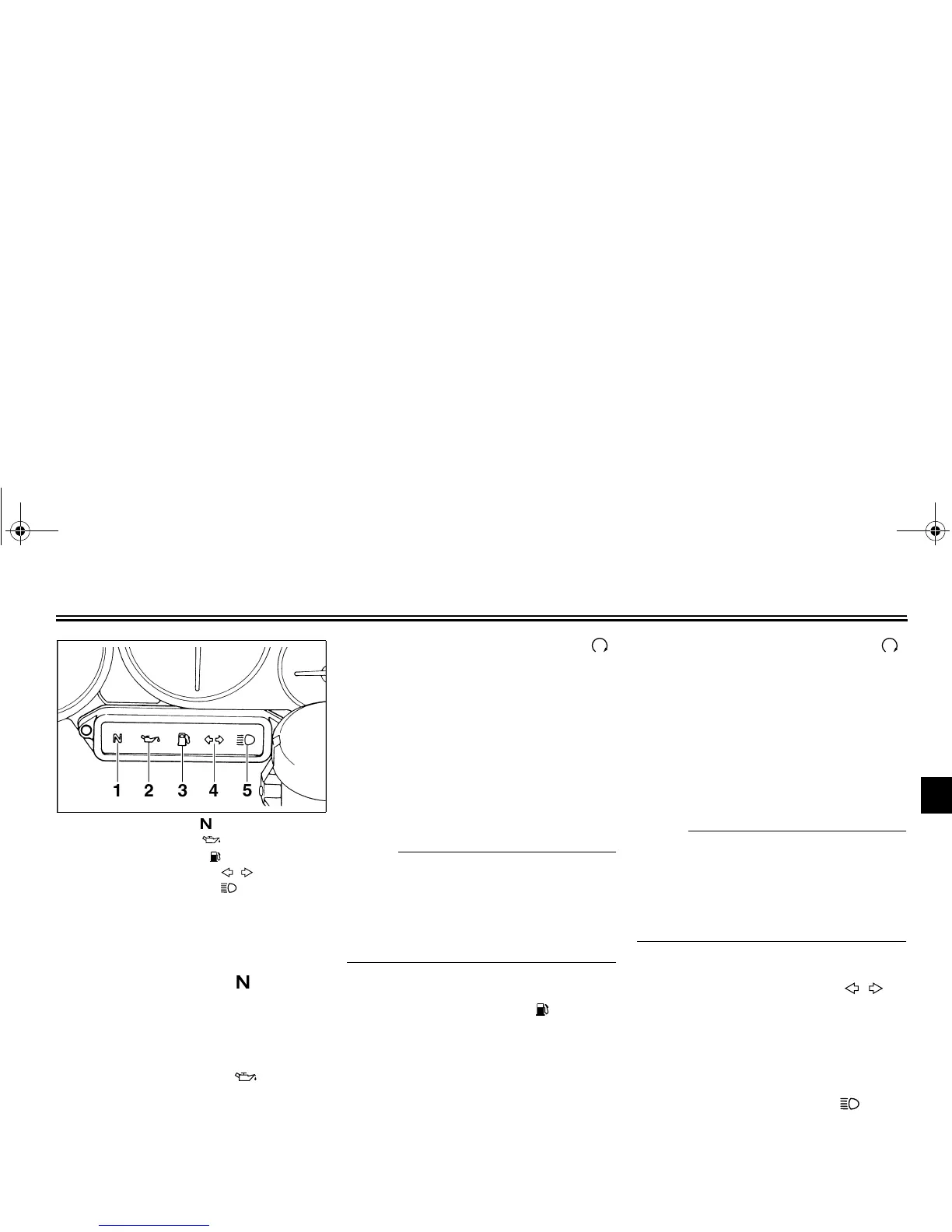

1. Neutral indicator light “”
2. Oil level warning light “”
3. Fuel level warning light “”
4. Turn signal indicator light “”
5. High beam indicator light “”
