INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU00095
Speedometer unit
The speedometer unit is equipped with
a speedometer, an odometer and a
tripmeter. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeter
shows the distance traveled since it
was last set to zero with the reset knob.
The tripmeter can be used to estimate
the distance that can be traveled with a
full tank of fuel. This information will en-
able you to plan future fuel stops.
EAU00101
Tachometer
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
EC000003
CAUTION:
@
Do not operate the engine in the ta-
chometer red zone.
Red zone: 13,200 r/min and above
@
EAU00105
Self-diagnosis device
This model is equipped with a self-di-
agnosis device for the following electri-
cal circuits:
●
throttle position sensor
●
fuel level warning light
If any of those circuits are defective,
the tachometer will repeatedly display
the following error code:
CB-11E
Use the table below to identify the
faulty electrical circuit.
CB-12E

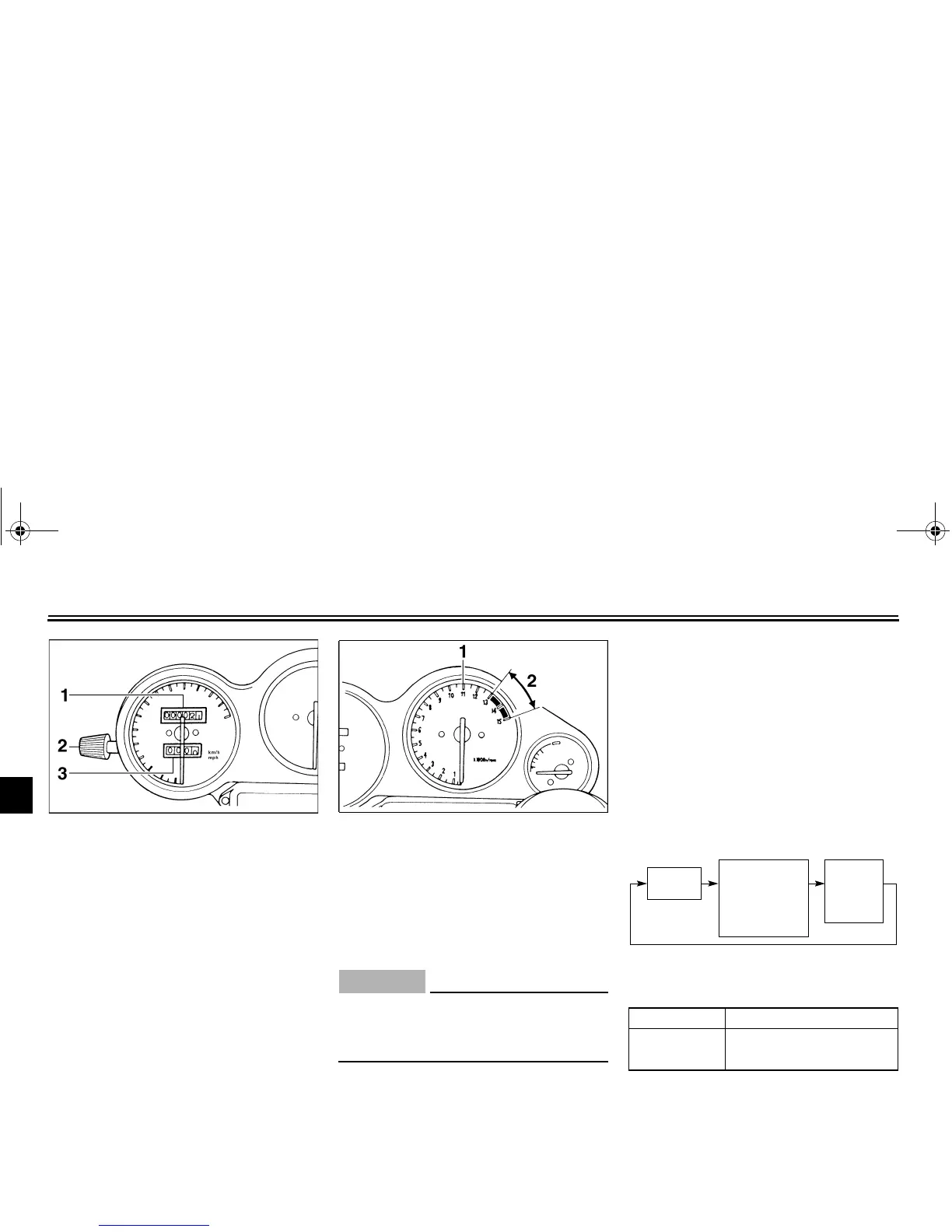

1. Odometer
2. Tripmeter reset knob
3. Tripmeter
1. Tachometer
2. Tachometer red zone
Specific r/min Faulty electrical circuit
3,000 r/min Throttle position sensor
8,000 r/min Fuel level warning light
