Yamaha YZF - Description

DESCRIPTION
2-3
2

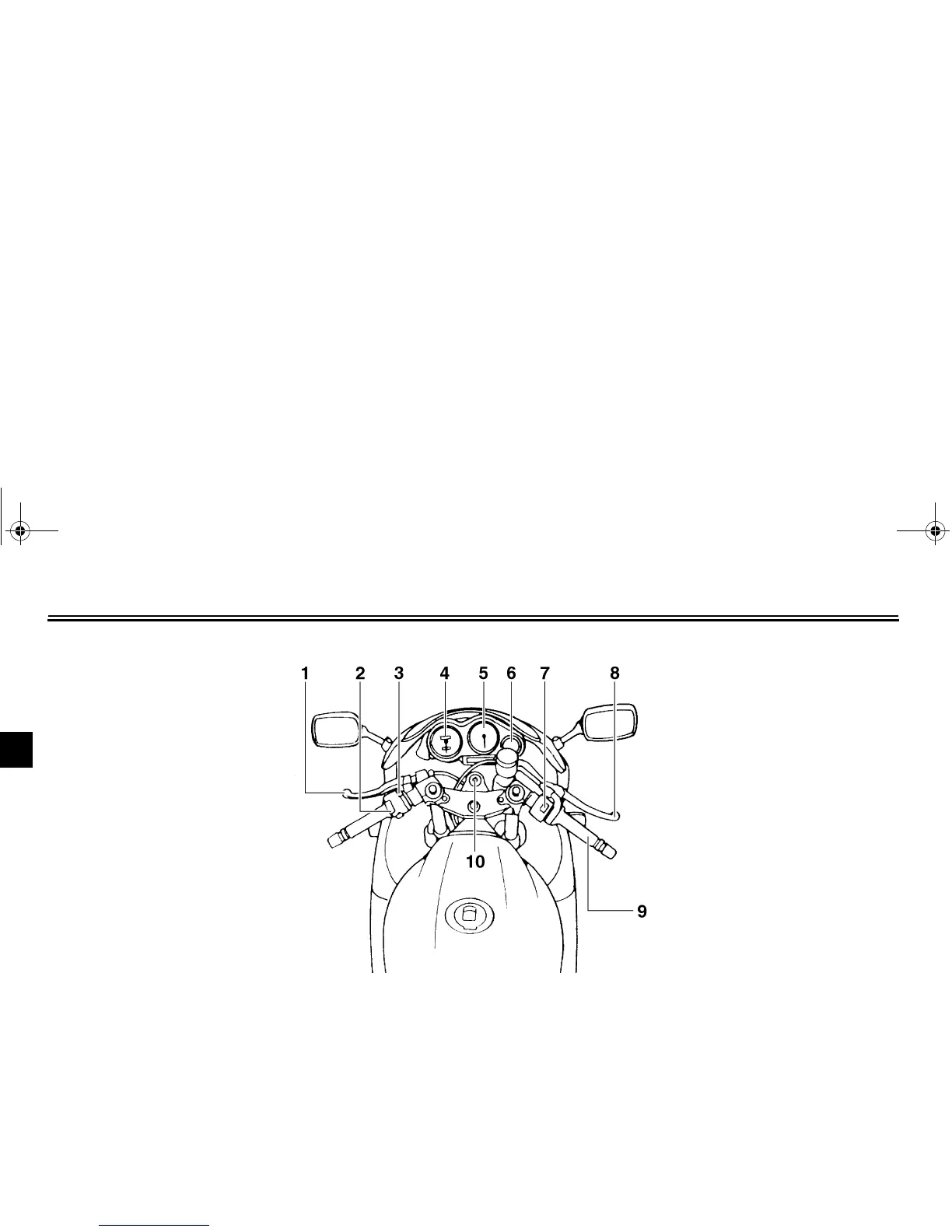

Controls and instruments
1. Clutch lever (page 3-6)
2. Left handlebar switches (page 3-5)
3. Starter (choke) lever (page 3-9)
4. Speedometer unit (page 3-3)
5. Tachometer (page 3-3)
6. Coolant temperature gauge (page 3-4)
7. Right handlebar switches (page 3-5)
8. Brake lever (page 3-6)
9. Throttle grip (page 6-22)
10. Main switch/steering lock (page 3-1)
