INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
Compression damping force
To increase the compression damping
force and thereby harden the compres-
sion damping, turn the adjusting screw
on each fork leg in direction
a
. To de-
crease the compression damping force
and thereby soften the compression
damping, turn the adjusting screw on
each fork leg in direction
b
.
CI-02E
EC000015
CAUTION:
@
Never attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings.
@
NOTE:
@
Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-
ber of clicks of each damping force ad-
justing mechanism and to modify the
specifications as necessary.
@
EAU03643
Adjusting the shock absorber
assembly
This shock absorber assembly is
equipped with a spring preload adjust-
ing ring, a rebound damping force ad-
justing knob and a compression
damping force adjusting screw.
ECA00071
@
Never attempt to turn the spring pre-
load and rebound damping force ad-
justing mechanisms beyond the
maximum or minimum settings.
@

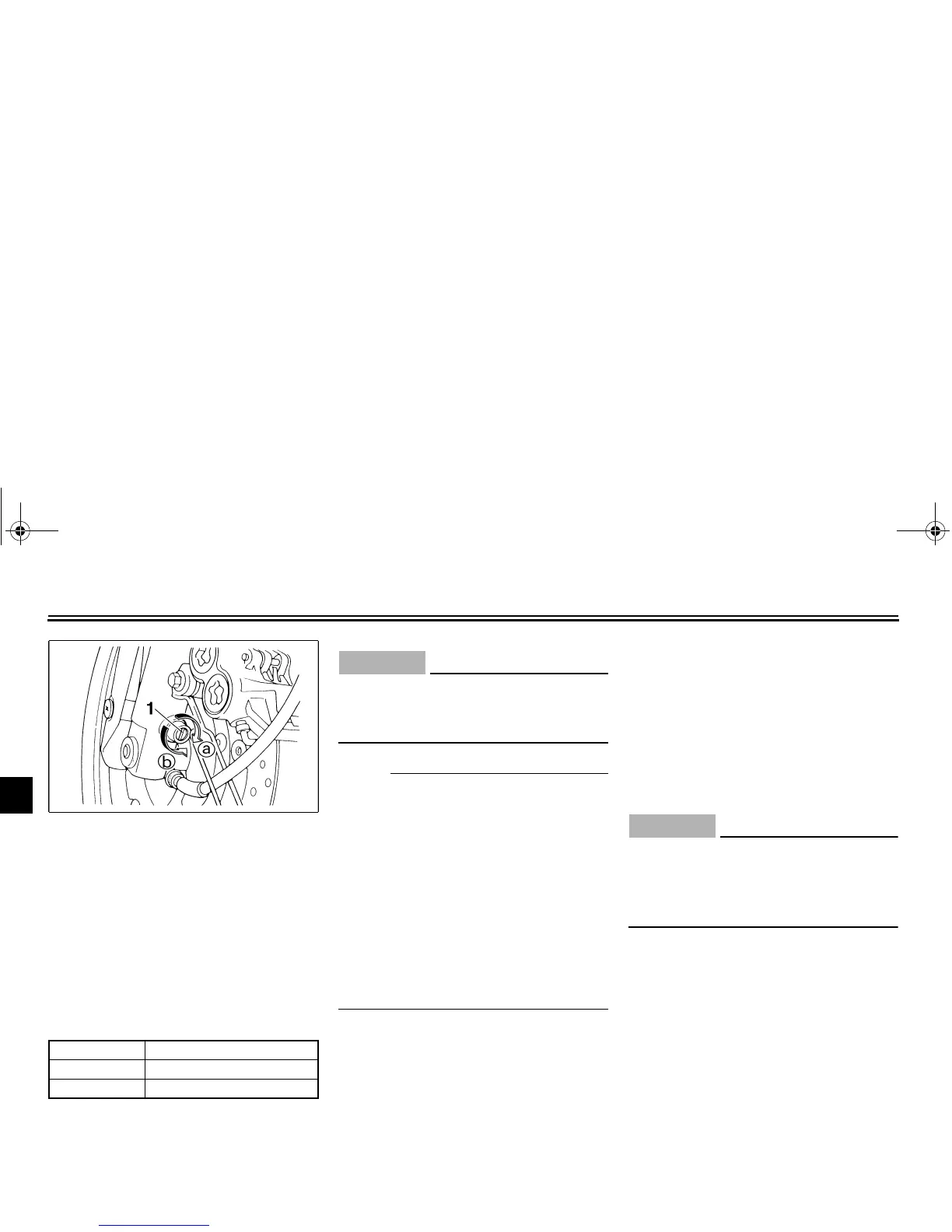

1. Compression damping force adjusting screw
Minimum (soft) 10 clicks in direction
b
*
Standard 7 clicks in direction
b
*
Maximum (hard) 1 click in direction
b
*
* With the adjusting screw fully turned in direction
a
U5AH16.book Page 13 Wednesday, May 8, 2002 9:16 AM
