PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
EAU01065
Removing and installing
cowlings
The cowlings shown above need to be
removed to perform some of the main-
tenance jobs described in this chapter.
Refer to this section each time a cowl-
ing needs to be removed and installed.
EAU04277
Cowlings A and C
To remove one of the cowlings
1. Remove the bolts.

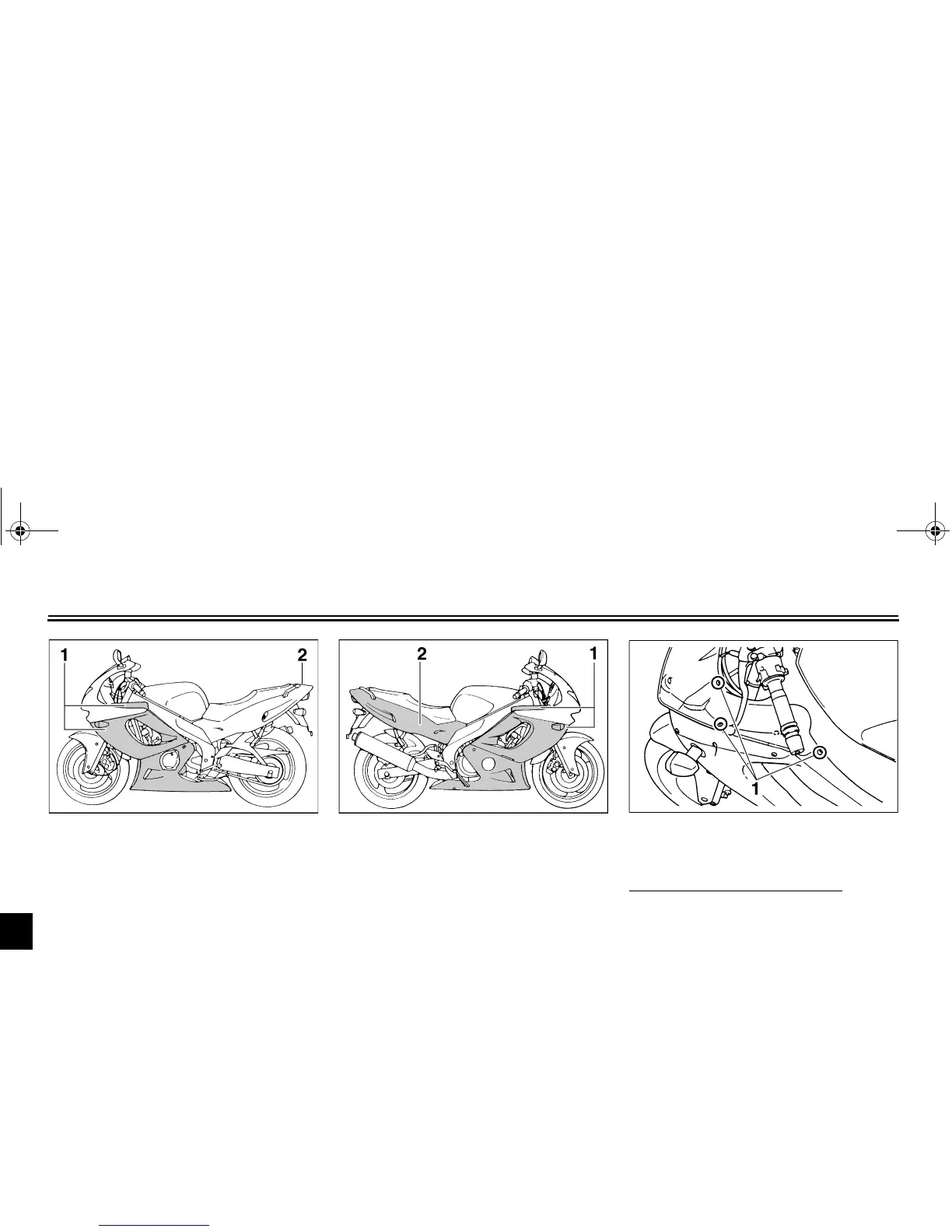

1. Cowling A
2. Cowling B
1. Cowling C
2. Cowling D
1. Bolt (× 3 on each side)
U5AH16.book Page 7 Wednesday, May 8, 2002 9:16 AM
