Compression damping force
To harden the compression damping,
decrease the setting by turning the ad-
justing screw. To soften the compres-
sion damping, increase the setting by
turning the adjusting screw. Make sure
that the position indicator is aligned
with the appropriate setting.
CI-10E
EAU00315
WARNING
@
This shock absorber contains high-
ly pressurized nitrogen gas. For
proper handling, read and under-
stand the following information be-
fore handling the shock absorber.
The manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.
●
Do not tamper with or attempt to
open the gas cylinder.
●
Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.
●
Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.
●
Always have a Yamaha dealer
service the shock absorber.
@

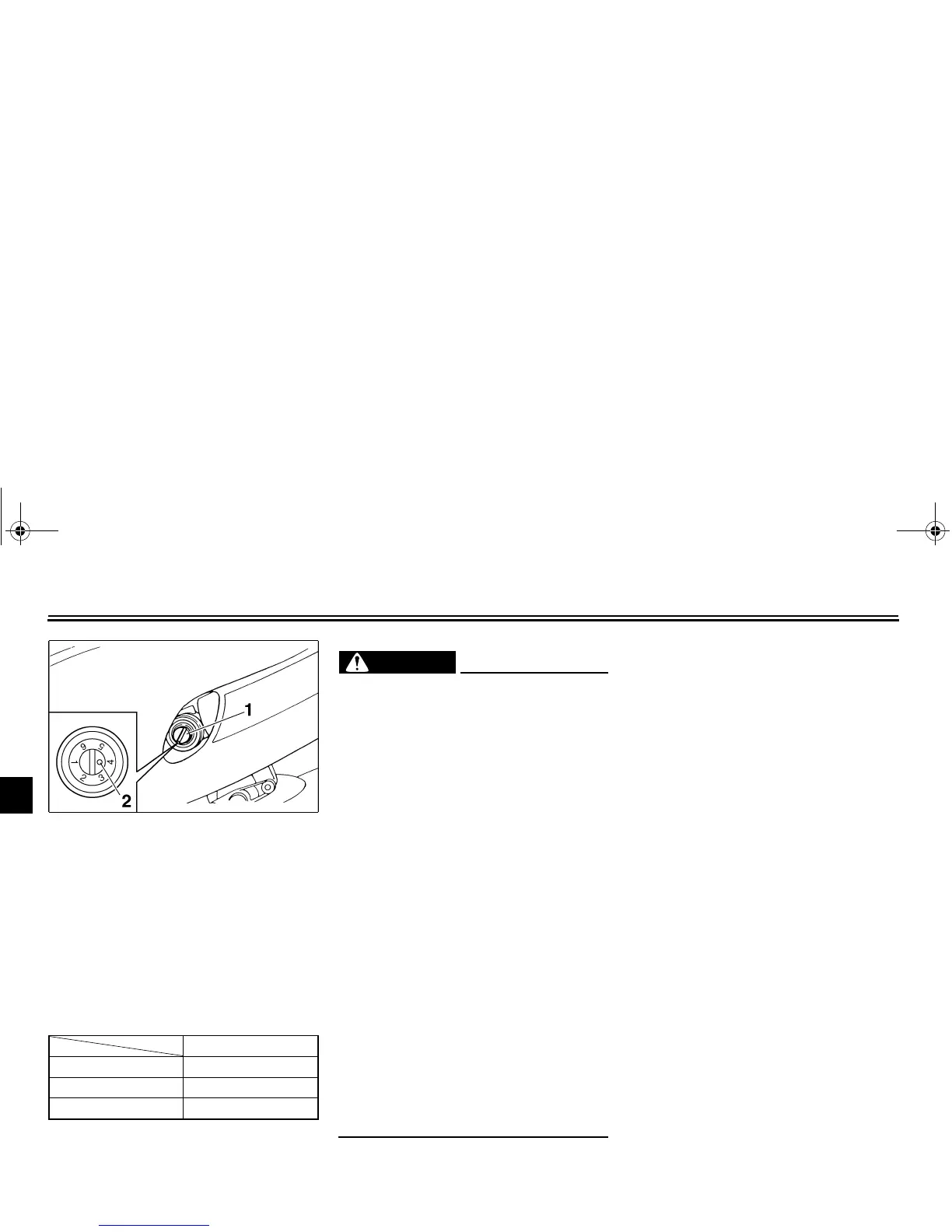

1. Compression damping force adjusting screw
2. Position indicator
Setting
Minimum (soft) 6
Standard 4
Maximum (hard) 1
