4 - 56

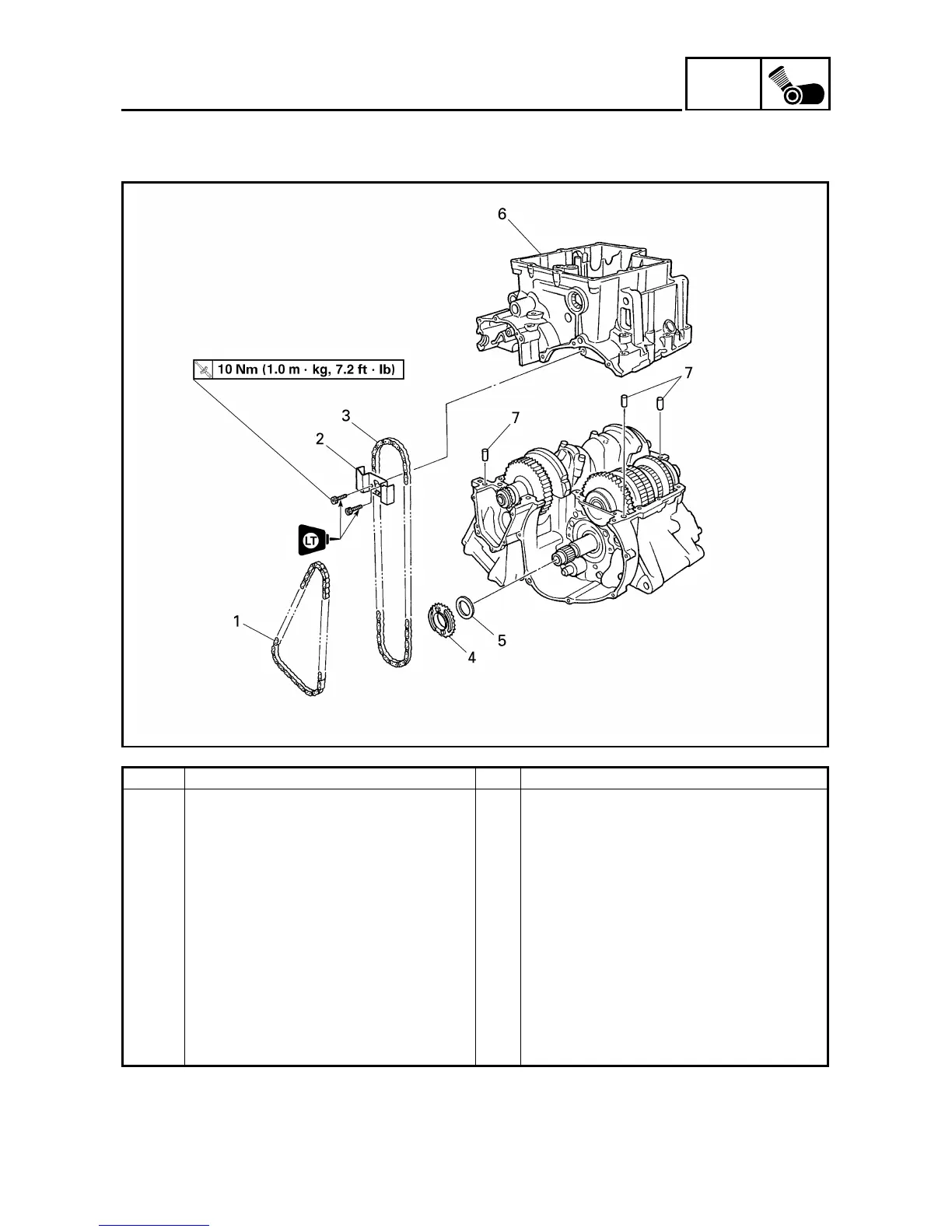

CRANKCASE
CRANKCASE
Order Job/Part Q’ty Remarks
Separating the crankcase Remove the parts in the order listed.
Engine Refer to “ENGINE”.
Cylinder head Refer to “CYLINDER HEAD”.
Pickup coil and pickup coil rotor Refer to “PICKUP COIL”.
Stator coil assembly Refer to “GENERATOR”.
Clutch housing and starter clutch
idle gear
Refer to “CLUTCH”.
Oil/water pump assembly Refer to “OIL PAN AND OIL PUMP”.
1 Timing chain 1
2 Oil/water pump assembly drive
chain guide
1
3 Oil/water pump assembly drive
chain
1
To Next Page
