7 - 61
CHAS
4. Check:
• cap bolt O-ring
Damage/wear
→
Replace.
EB703702

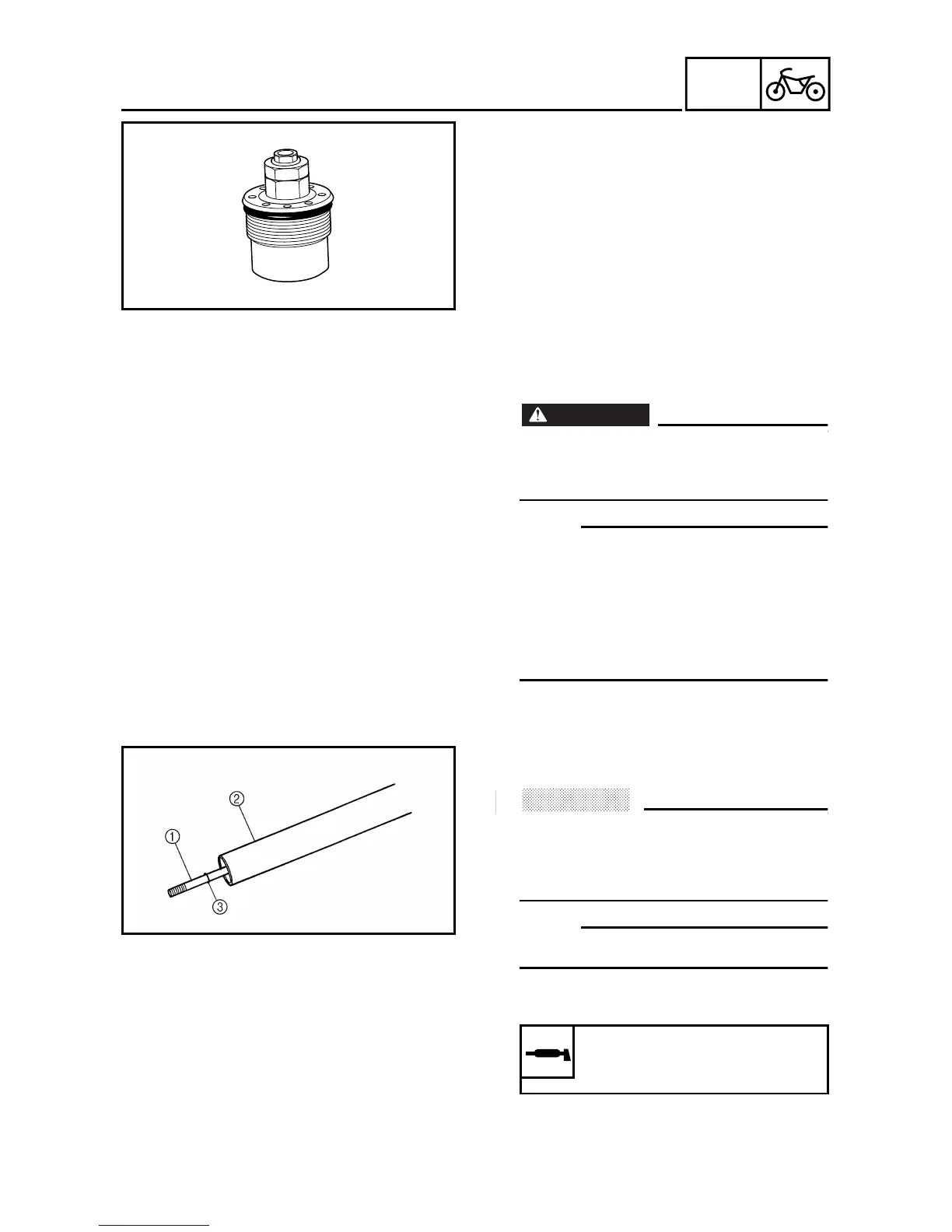

ASSEMBLING THE FRONT FORK LEGS
The following procedure applies to both of
the front fork legs.
WARNING
WARNING
• Make sure that the oil levels in both
front fork legs are equal.
• Uneven oil levels can result in poor
handling and a loss of stability.
NOTE:
• When assembling the front fork leg, be
sure to replace the following parts:
- inner tube bushing
- outer tube bushing
- oil seal
- dust seal
• Before assembling the front fork leg,
make sure that all of the components
are clean.
1. Install:
• damper rod assembly
1
ACHTUNG:
CAUTION:
Allow the damper rod assembly to slide
slowly down the inner tube
2
until it
protrudes from the bottom of the inner
tube. Be careful not to damage the inner
tube.
NOTE:
Be sure that the clip
3
is still correctly
installed.
2. Lubricate:
• inner tube’s outer surface
Recommended lubricant
Yamaha fork and shock oil
M1 or equivalent
FRONT FORK
