TRANSMISSION

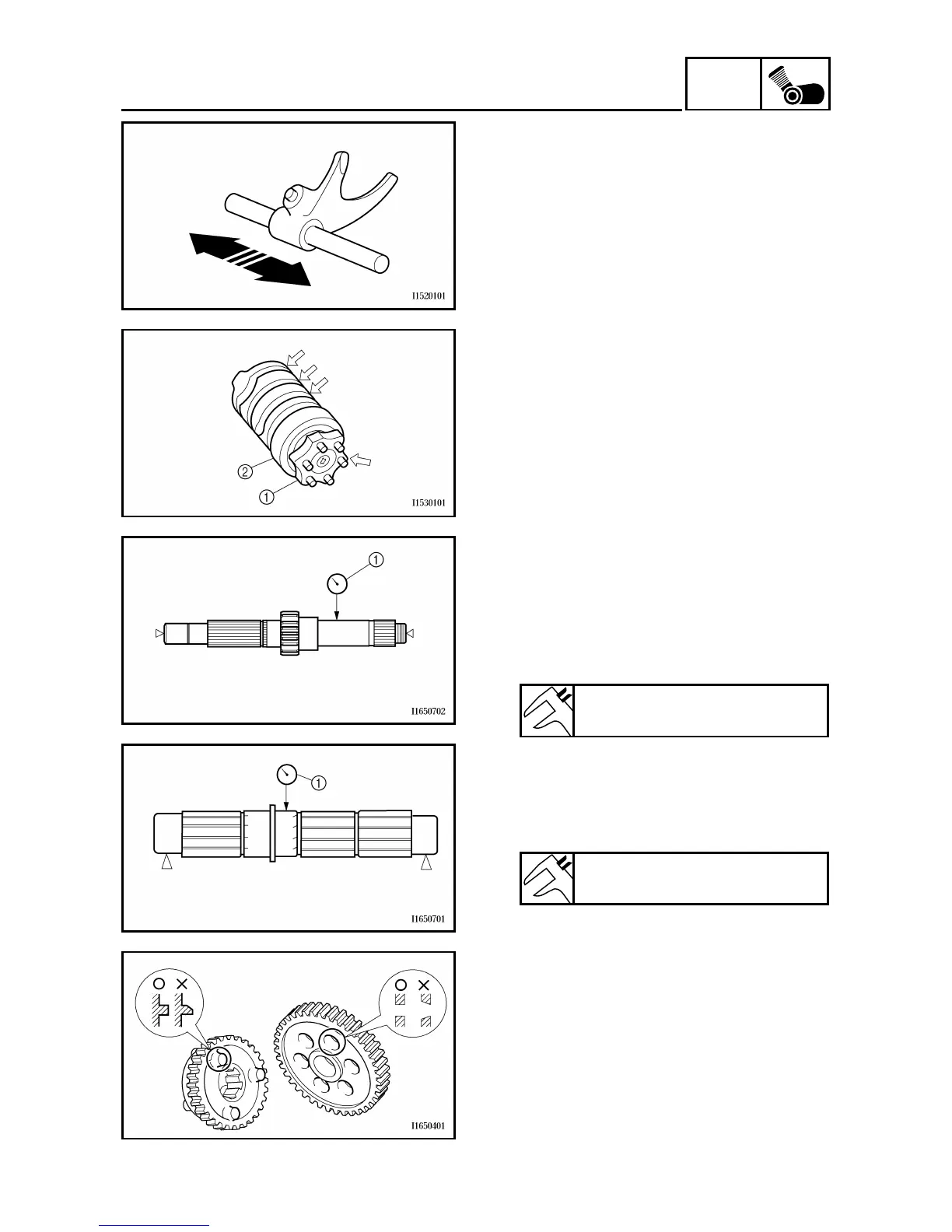

3. Check:
• shift fork movement
(along the shift fork guide bar)
Rough movement → Replace the shift
fork(-s) and shift fork guide bar as a
set.
EB413410
CHECKING THE SHIFT DRUM ASSEMBLY
1. Check:
• shift drum grooves
Damage/scratches/wear → Replace the
shift drum assembly.
• shift drum segment 1
Damage/wear → Replace the shift
drum assembly.
• shift drum bearing 2
Damage/pitting → Replace the shift
drum assembly.
EB413422
CHECKING THE TRANSMISSION
1. Measure:
• main axle runout
(with a centering device and dial
gauge 1)
Out of specification → Replace the
main axle.
Maximum main axle runout
0.08 mm (0.003 in)
2. Measure:
• drive axle runout
(with a centering device and dial
gauge 1)
Out of specification → Replace the
drive axle.
Maximum drive axle runout
0.08 mm (0.003 in)
3. Check:
• transmission gears
Blue discoloration/pitting/wear →
Replace the defective gear(-s).
• transmission gear dogs
Cracks/damage/rounded edges →
Replace the defective gear(-s).
To Next Page
