FUEL INJECTION AND GOVERNOR SYSTEMS

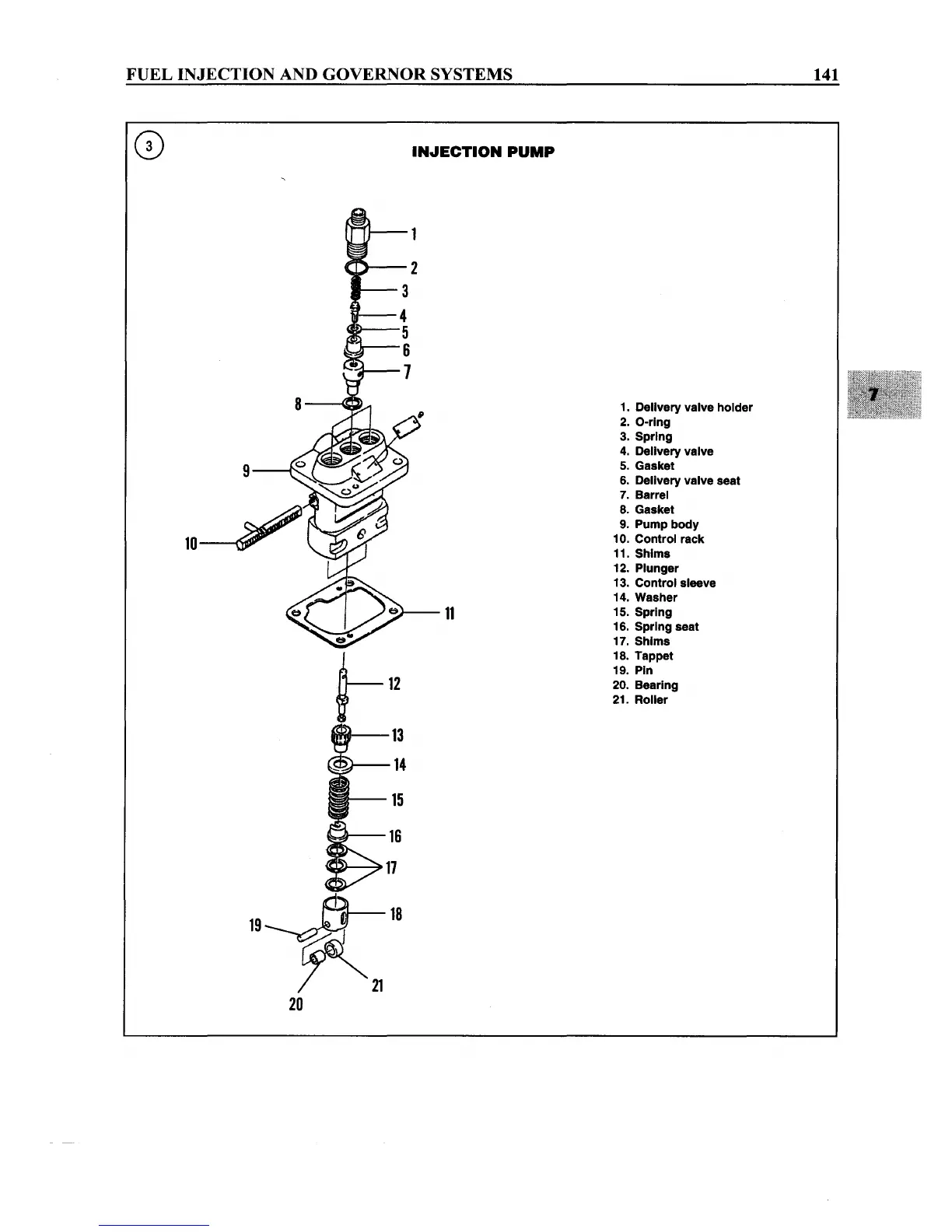

IN.JECTION PUMP
141
9-----i,
10~
t-
12
1iM---13
" ........ ~-14
15
---16
~-~17
19~18
~~
20
11
1. Delivery valve holder
2.
a-ring
3. Spring
4. Delivery valve
5. Gasket
6. Delivery valve seat
7. Barrel
8. Gasket
9. Pump body
10. Control rack
11. Shims
12. Plunger
13. Control sleeve
14. Washer
15. Spring
16. Spring seat
17. Shims
18. Tappet
19. Pin
20. Bearing
21. Roller
