ELECTRICAL SYSTEM

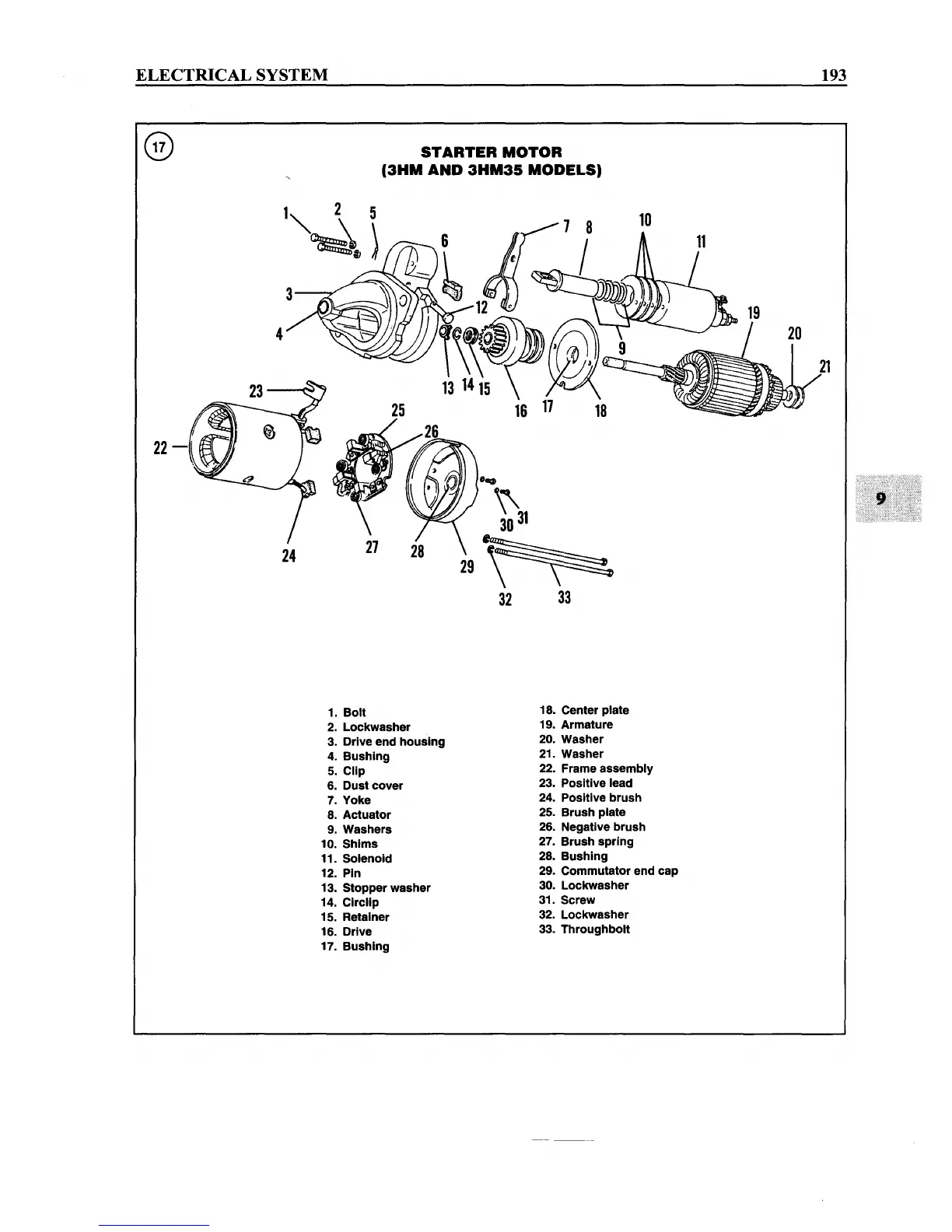

STARTER MOTOR
(3HM AND 3HM35 MODELS)
193
24
1. Bolt
2. Lockwasher
3. Drive end housing
4. Bushing
5. Clip
6. Dust cover
7. Yoke
8. Actuator
9. Washers
10. Shims
11. Solenoid
12. Pin
13. Stopper washer
14. Circllp
15. Retainer
16. Drive
17. Bushing
..
\\
30
31
29~
32 33
18. Center plate
19. Armature
20. Washer
21. Washer
22. Frame assembly
23. Positive lead
24. Positive brush
25. Brush plate
26. Negative brush
27. Brush spring
28. Bushing
29. Commutator end cap
30. Lockwasher
31. Screw
32. Lockwasher
33. Throughbolt
