192

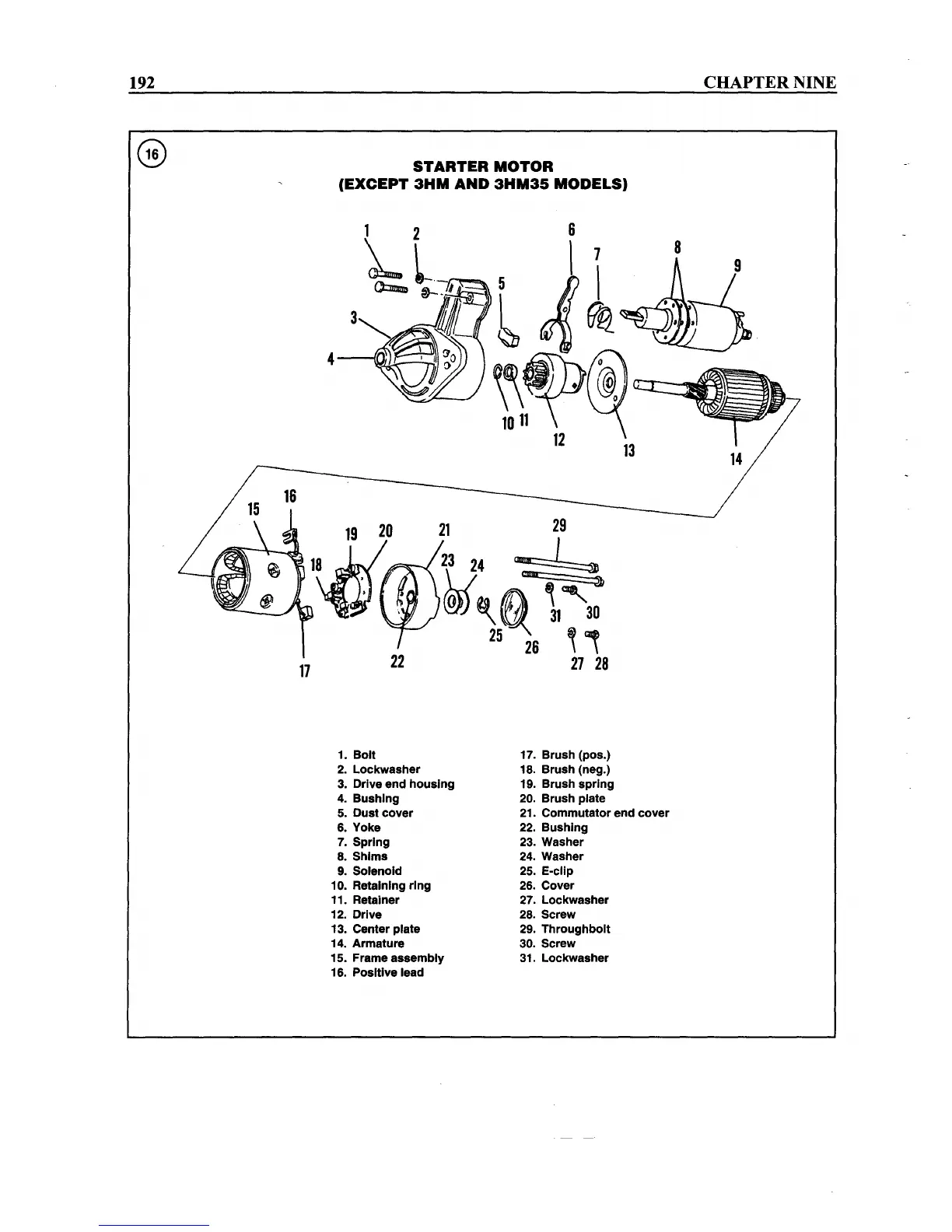

STARTER MOTOR
(EXCEPT 3HM AND 3HM35 MODELS)
CHAPTER NINE
17
4--caJ1::::t:
22
21 29
23 24 ~
W~Q\"\:
25 26 ~,
27 28
8
1. Bolt
2. Lockwasher
3. Drive end housing
4. Bushing
5. Dust cover
6. Yoke
7. Spring
8. Shims
9. Solenoid
10. Retaining ring
11. Retainer
12. Drive
13. Center plate
14. Armature
15. Frame assembly
16. Positive lead
17. Brush (pos.)
18. Brush (neg.)
19. Brush spring
20. Brush plate
21. Commutator end cover
22. Bushing
23. Washer
24. Washer
25. E-clip
26. Cover
27. Lockwasher
28. Screw
29. Throughbolt
30. Screw
31. Lockwasher
