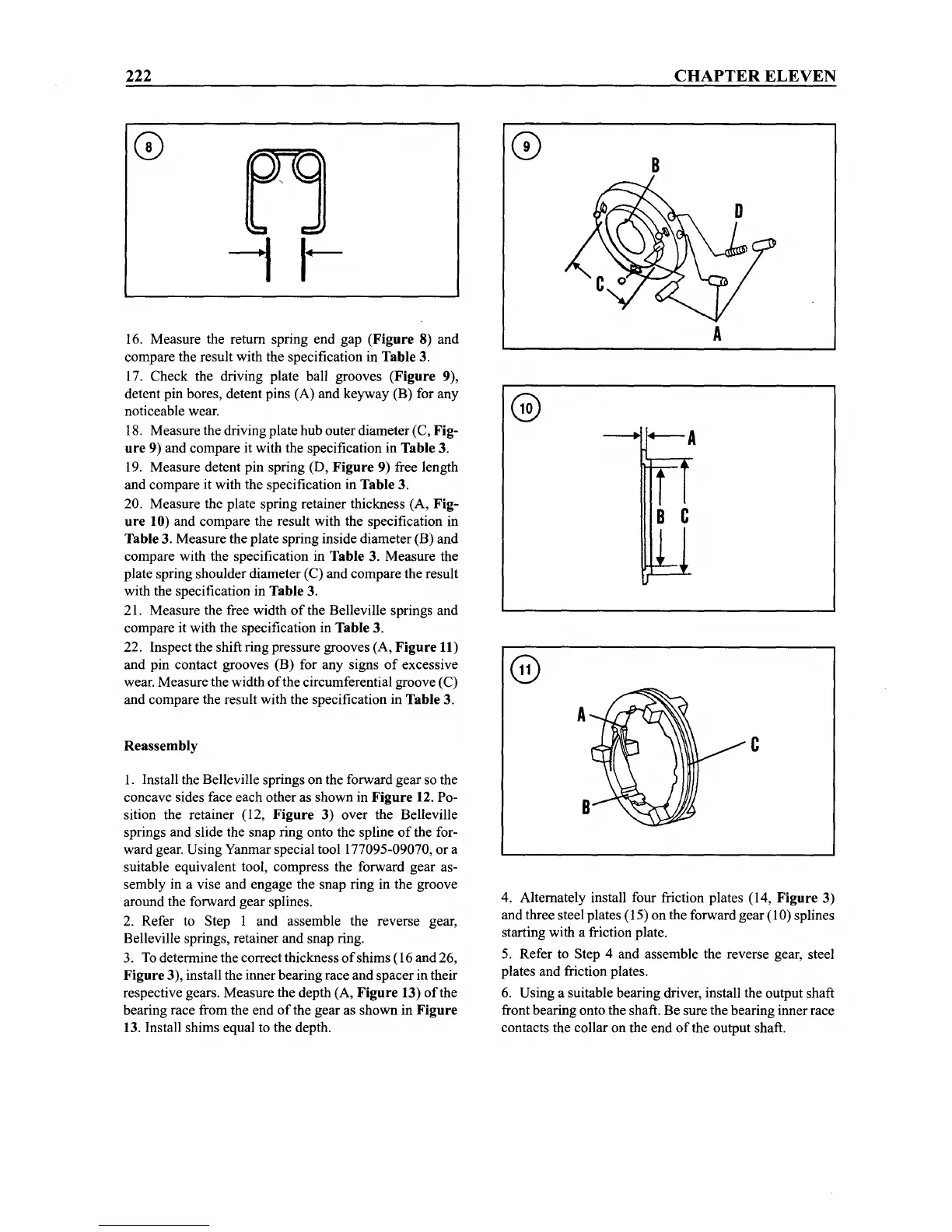

222 CHAPTER ELEVEN
B
A
4. Alternately install four friction plates (14, Figure 3)
and three steel plates (15) on the forward gear (10) splines
starting with a friction plate.
5. Refer to Step 4 and assemble the reverse gear, steel
plates and friction plates.
6. Using a suitable bearing driver, install the output shaft
front bearing onto the shaft. Be sure the bearing inner race
contacts the collar on the end
of
the output shaft.
16. Measure the return spring end gap (Figure 8) and
compare the result with the specification in Table 3.
17. Check the driving plate ball grooves (Figure 9),
detent pin bores, detent pins (A) and keyway (B) for any
noticeable wear.
18. Measure the driving plate hub outer diameter (C, Fig-
ure 9) and compare it with the specification in Table 3.
19. Measure detent pin spring (D, Figure 9) free length
and compare it with the specification in Table 3.
20. Measure the plate spring retainer thickness (A, Fig-
ure 10) and compare the result with the specification in
Table 3. Measure the plate spring inside diameter (B) and
compare with the specification in Table 3. Measure the
plate spring shoulder diameter (C) and compare the result
with the specification in Table 3.
21. Measure the free width
of
the Belleville springs and
compare it with the specification in Table 3.
22. Inspect the shift ring pressure grooves (A, Figure 11)
and pin contact grooves (B) for any signs
of
excessive
wear. Measure the width
of
the circumferential groove (C)
and compare the result with the specification in Table 3.
Reassembly
1. Install the Belleville springs on the forward gear so the
concave sides face each other as shown in Figure 12. Po-
sition the retainer (12, Figure 3) over the Belleville
springs and slide the snap ring onto the spline
of
the for-
ward gear. Using Yanmar special tool 177095-09070, or a
suitable equivalent tool, compress the forward gear as-
sembly in a vise and engage the snap ring in the groove
around the forward gear splines.
2. Refer to Step 1 and assemble the reverse gear,
Belleville springs, retainer and snap ring.
3. Todetermine the correct thickness
of
shims (16 and 26,
Figure 3), install the innerbearing race and spacer in their
respective gears. Measure the depth (A, Figure 13)
of
the
bearing race from the end
of
the gear as shown in Figure
13. Install shims equal to the depth.
A
c
