90 CHAPTER FIVE

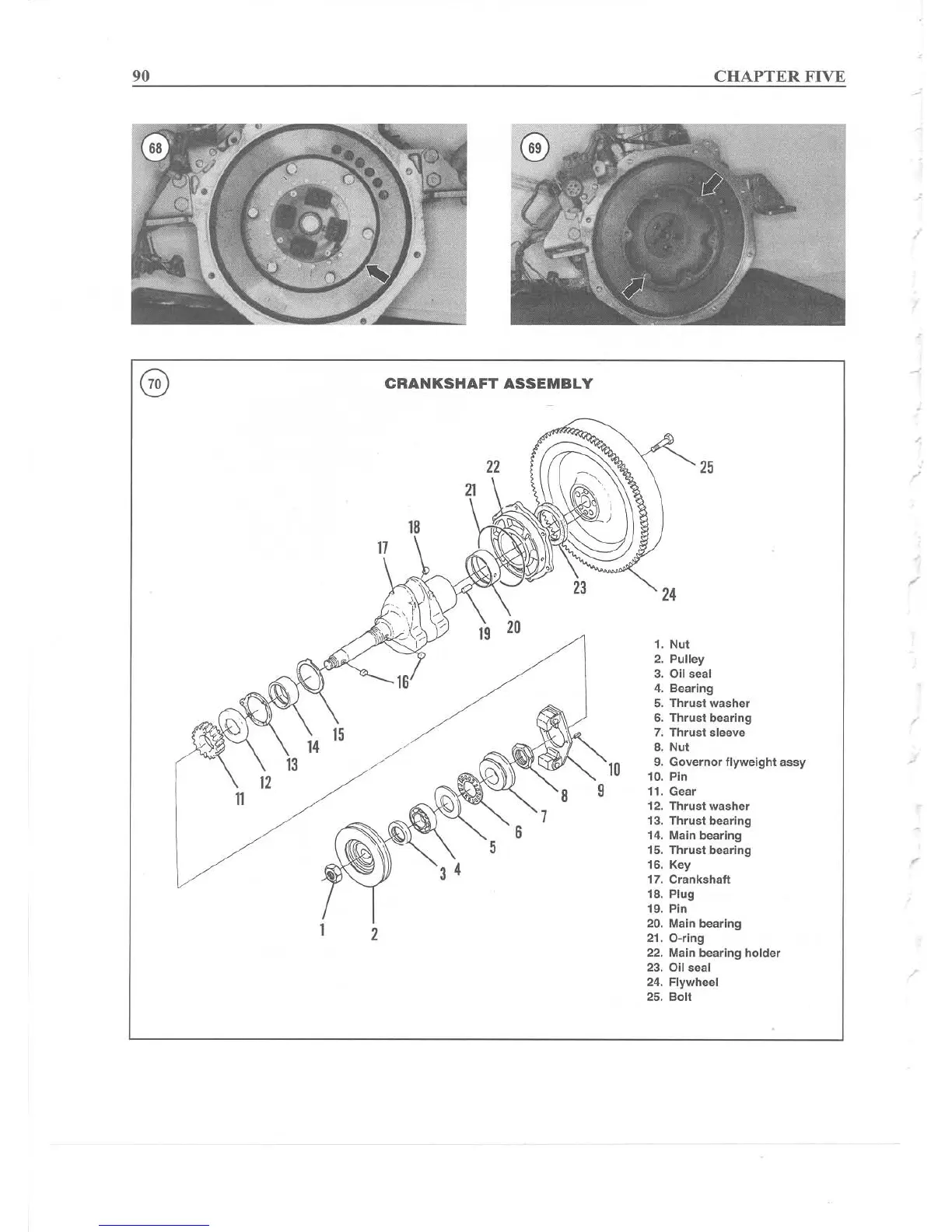

CRANKSHAFT ASSEMBLY
/
25
24
1. Nut
2. Pulley
3.011 seal
4. Bear ing
5. Thrust washer
6. Thrust bearing
7. Thrust sleeve
8.
Nut
9. Governor f lyweight assy
10. PIn
11. Gear
12. Thrust washer
13. Thrust bearing
14. Main bearing
15. Th rust bearing
16. Key
17.
Crankshaft
18. Plug
19. Pin
20. Main bearing
21. O-ring
22. Main
bearing holder
23. Oil seal
24. Flywheel
25. Boll
10
9
7
6
5
2
17
14 15 / /
1~ / / / ~ ~ ~
11
