PRODUCT OVERVIEW
12
6LT Series Operation Manual

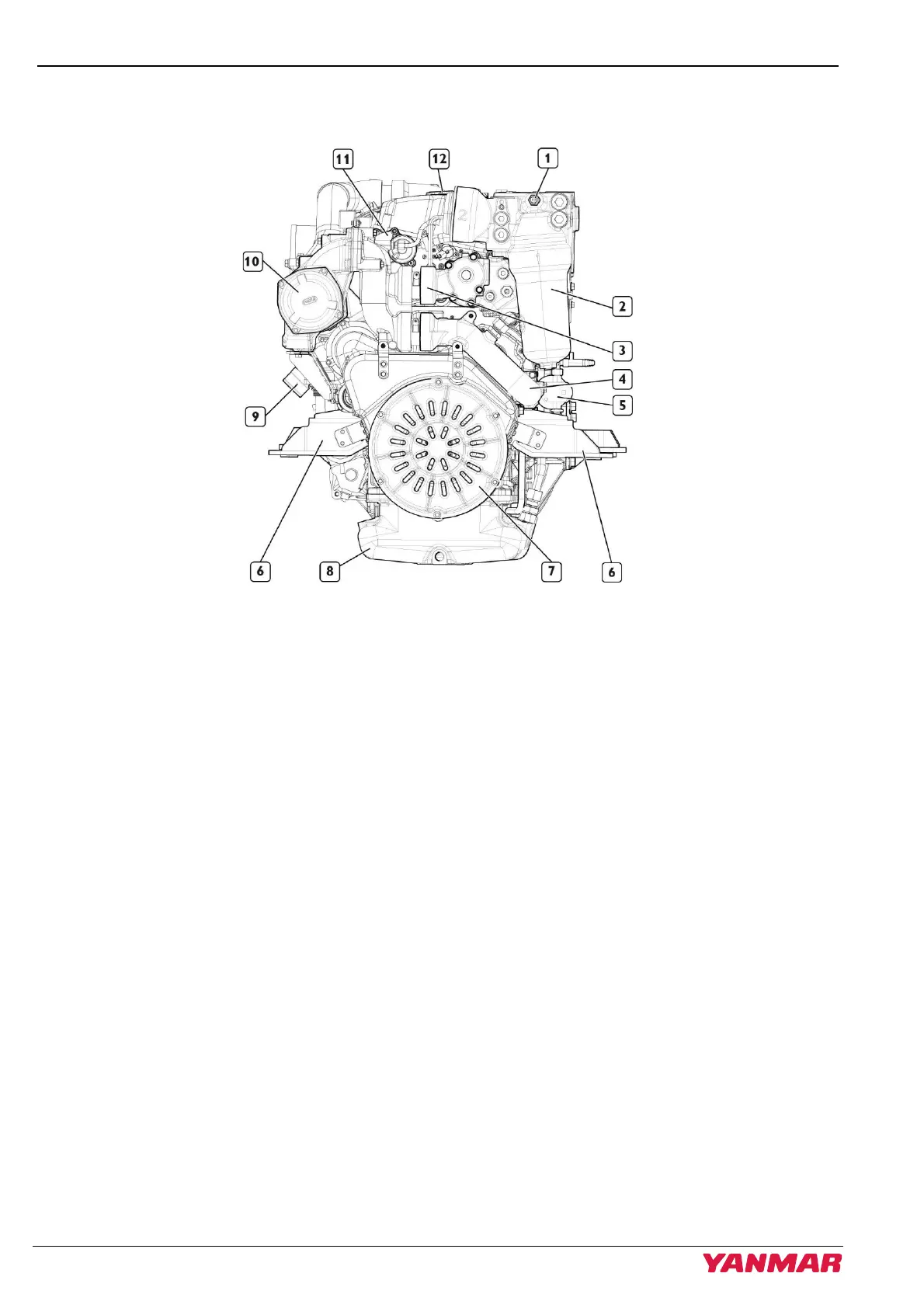

Front view
1 Coolant expansion tank
2 Oil filter
3 Thermostat body
4 Coolant inlet pipe going to engine water
pump
5 Oil evacuation pump
6 Engine mounts
7 Pulley on crankshaft
8 Oil sump
9 Seawater pump inlet
10 Engine coolant-seawater heat exchanger
11 Blow-by gas valve
12 Oil filler cap
Figure 3
