INSPECTION AND MAINTENANCE
6LT Series Operation Manual
57

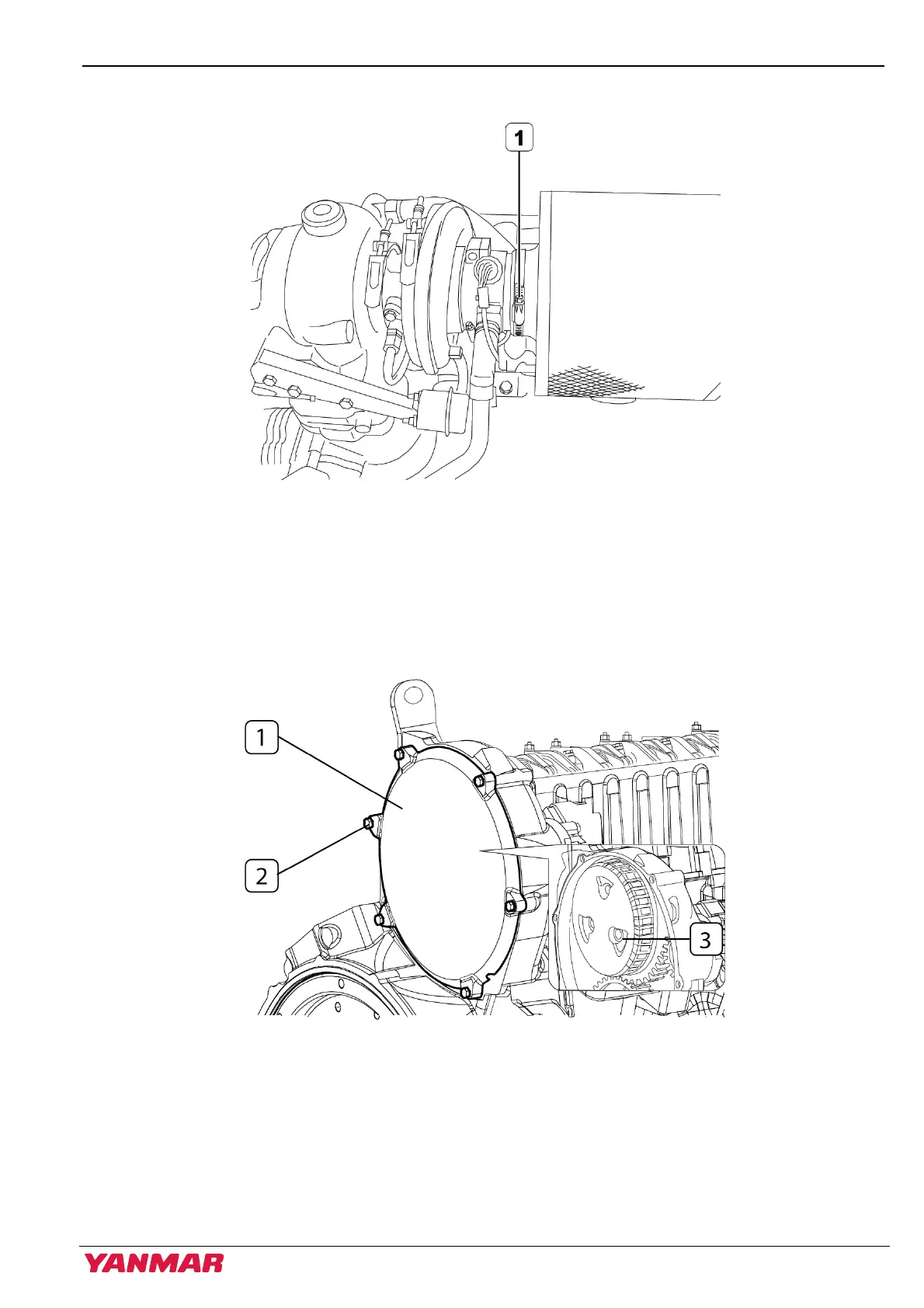

CHANGE AIR FILTER
Figure 13
• Remove the filter after removing the clamp (1) indicated in the figure.
• Replace the part.
• Restore the correct operating conditions after having placed the filter in its seat.
CHANGE OIL VAPOR FILTERS
Figure 14
Only proceed when the engine is not turning and is at low temperature so as to prevent the risk of burns:
• Unscrew the screws (2) and remove the cover (1). Remove the centrifugal filter (3) below and replace it.
• Close the cover (1) and tighten the screws (2).
ATTENTION: The blow-by body must be fit in perfect alignment with the camshaft to prevent damaging the
gasket.
