Yanmar SD60 - Removing Propeller

PERIODIC MAINTENANCE
SD60 Operation Manual 27
Removing Propeller

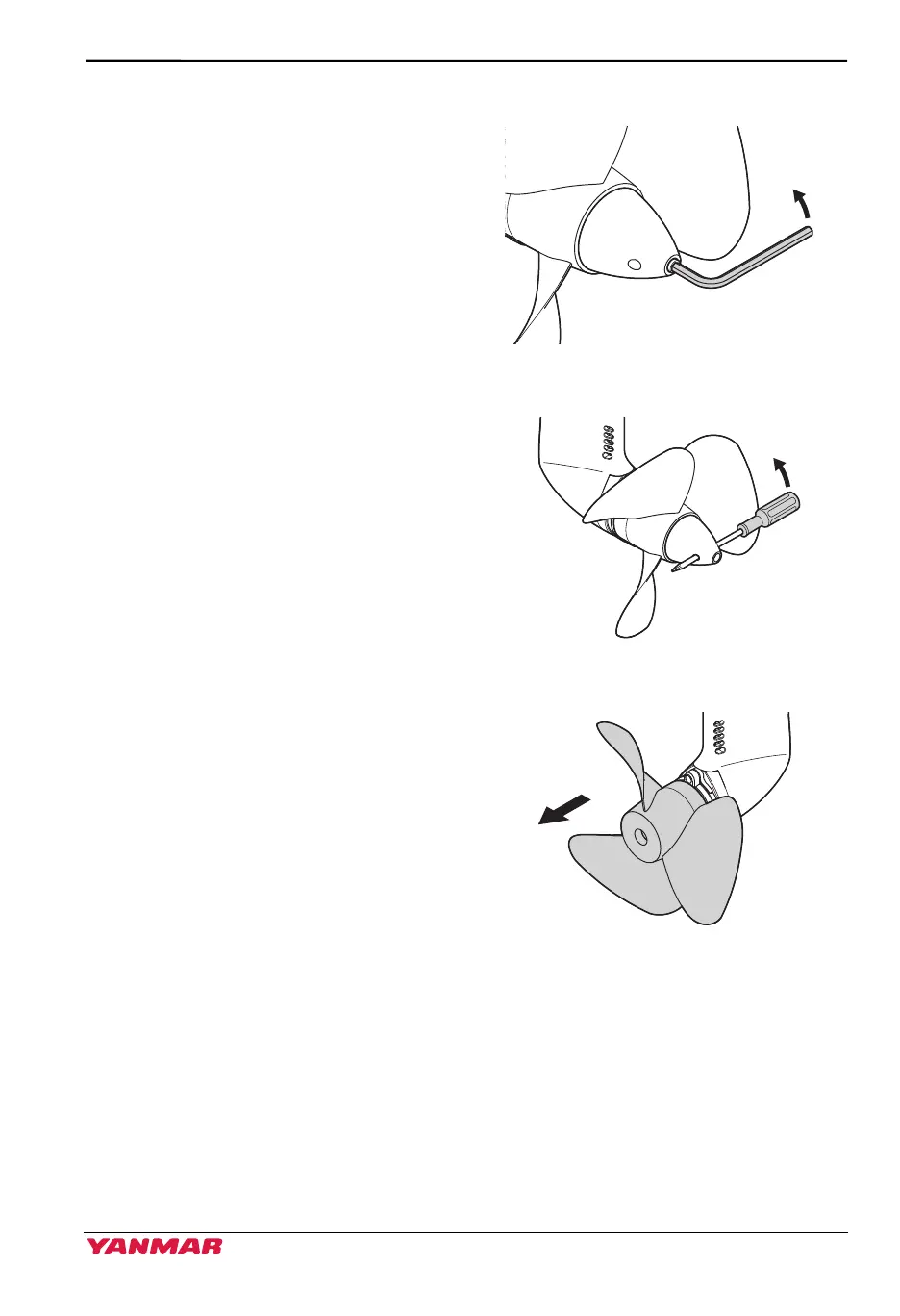

1. Place a block of wood between the
propeller blade and the hull.
Using a 6 mm allen wrench, loosen and
remove the locking screw of the bullet.
Figure 13
2. Insert a suitable tool into the hole.
Loosen and remove the propeller
spinner nut.
Figure 14
3. Remove the wooden block.
Remove the propeller.
If necessary, use a plastic hammer and
gently tap to remove.
Figure 15
050908-01X00
050909-01X00
050910-01X00
