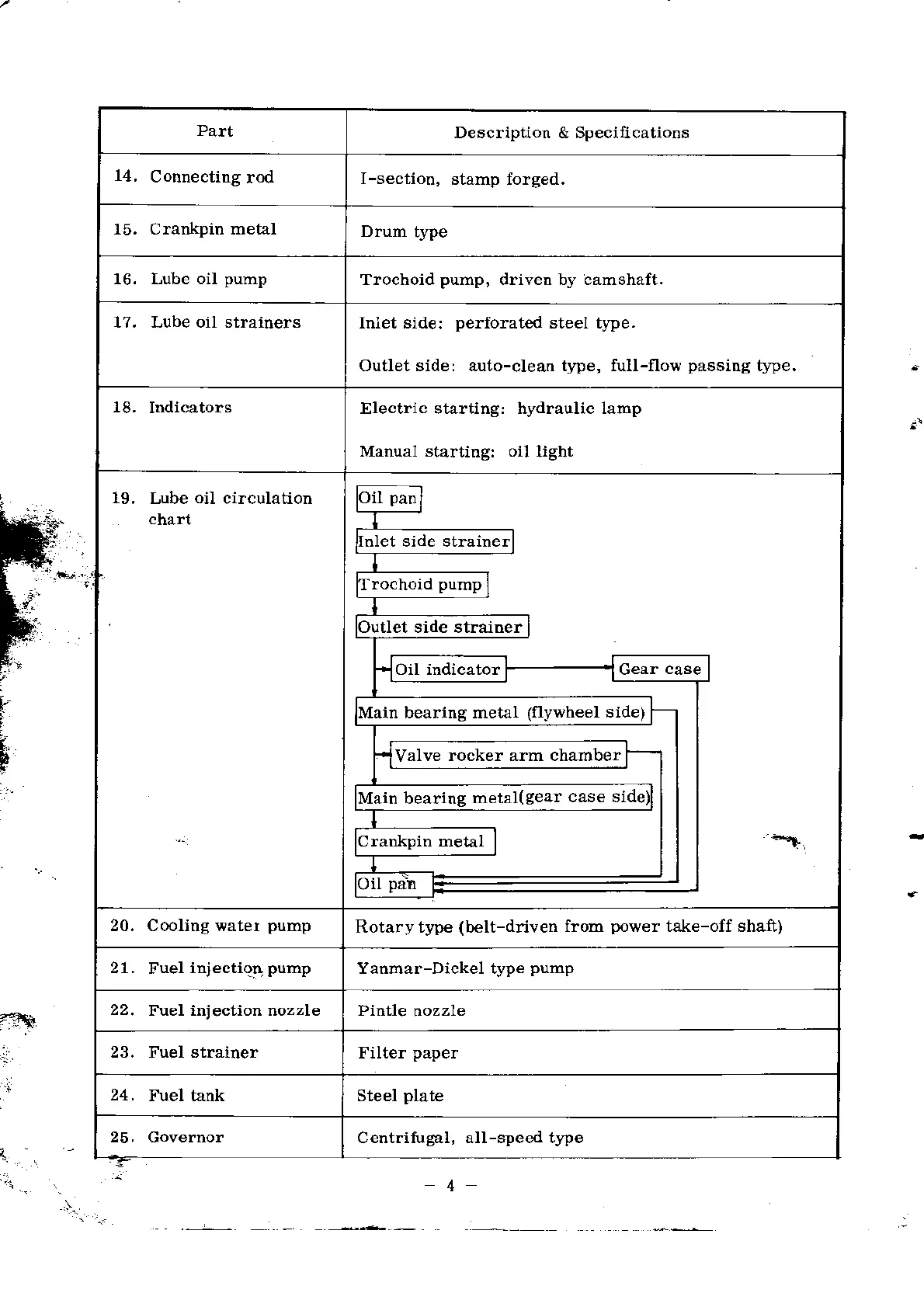

Part
Description & Speciacations
14,
Connecting
rod
I-section,
stamp forged.
15. Crankpin metal
Drum type
16. Lube oil
pump
Trochoid
pump,
driven by camshaft.
17. Lube oil strainers
Iniet side:
perforated
steel t!?e.
Outlet side: auto-clean tlpe, full-flow
passing
tlTe.
18.
Indicators
Electric starting: hydraulic lamp
Manual startingr oil
light
19.
Lube
oil
circulation
chart
nlet side strainer
rochoid
pump
Outlet side strainer
Main bearing metal
(flywheel side)
Valve
rocker arm chamber
Main bearing
metal(gear
case side
Crankpin metal
20. Cooling water
pump
Rotary type
(belt-driven from
power
take-off shaft)
21.
Fuel
itrjectio!
pump
Yanmar-Dickel type
pump
22.
Fuel injection nozzle Pintle
nozzle
Fuel strainer
FiIter
paper
24.
Fuel tank Steel
plate
25. Governor
Centritugal, all-speed tJpe
