E18

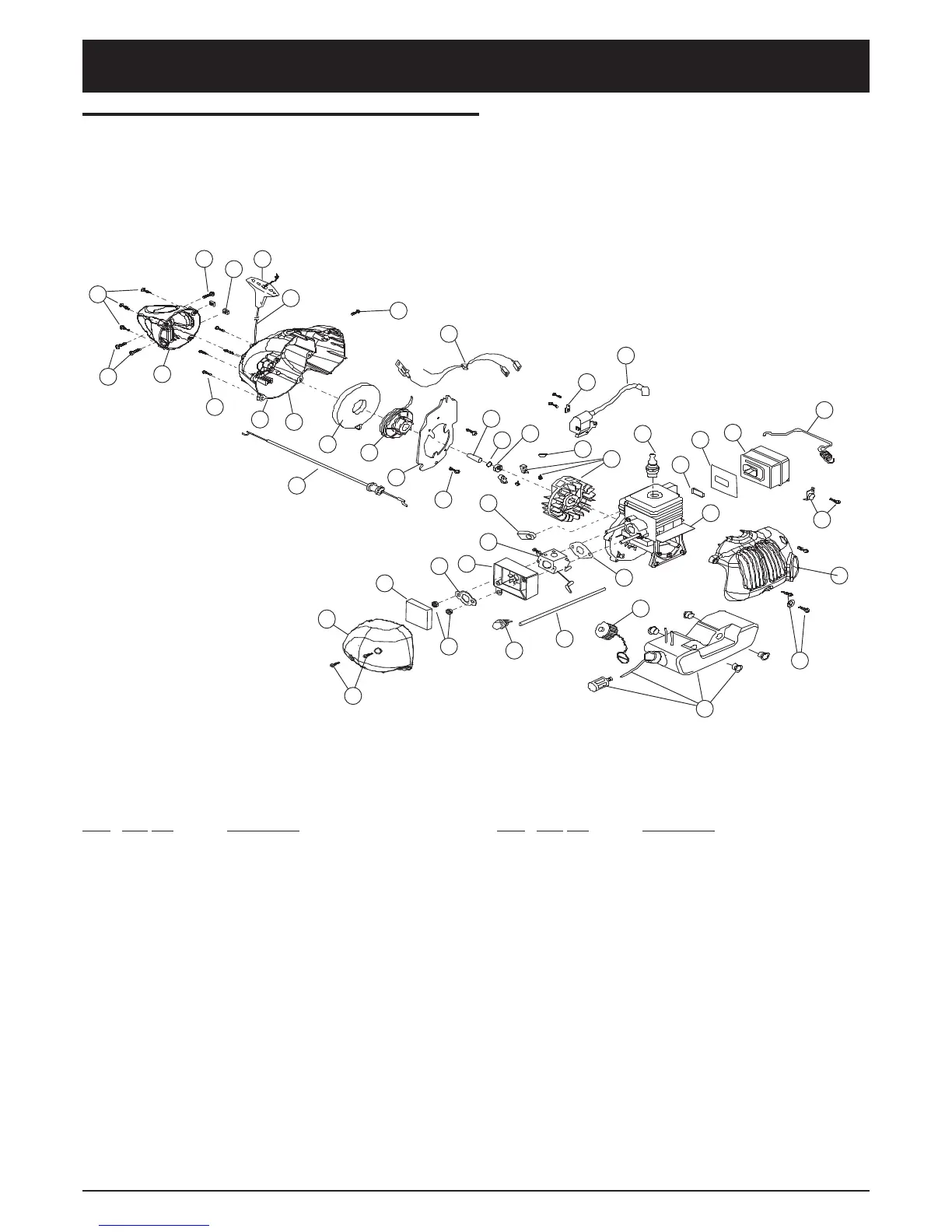

PARTS LIST
ENGINE PARTS - MODEL MCT33360E
2-CYCLE GAS TRIMMER
Item Part No. Description
23 MC-9142-310002 Primer
24 MC-9129-320002 Hose
25 MC-9295-320001 Spark Plug
26 MC-9014-330303 Gasket
27 MC-9014-330304 Muffler Gasket
28 MC-9200-330301 Muffler
29 MC-9104-330301 Spark Arrestor
30 MC-9024-330301 Muffler Mount Spring
31 MC-9288-310001 Mod Assembly w/Hardware
32 MC-9041-330301 Terminal Tab
33 MC-9124-330301 Spacer
34 MC-9WFB-0.37 Washer
35 MC-9NC-7/16 Nut
36 753-04721 Flywheel Assembly
37 MC-9012-330301 Grommet
38 MC-9221-310001 Flywheel Key
39 MC-9228-330309 Fuel Tank Assembly (includes 40)
40 MC-9228-320006 Fuel Cap
41 MC-9038-332601 Engine Cover
42 753-04722 Engine Cover Hardware
43 MC-6SDAB-05-02 Screw
44 MC-6SDABB05-14 Screw
45 MC-6NDB-05 Nut
46 753-04727 Short Block (includes 25 & 38
37
1
3
6
8
10
4
5
9
11
12
13
17
14
16
33
34
35
21
22
23
24
27
25
32
40
31
20
44
7
41
38
Item Part No. Description
1 753-04714 Clutch Housing (includes 2 & 43-45)
2 753-04715 Screw
3 753-04716 Starter Housing Assembly (includes 4-13)
4 MC-9017-332604 Starter Housing
5 753-04717 Screw
6 753-04718 Screw
7 MC-9068-320002 Starter Handle
8 MC-9194-320001 Starter Rope
9 MC-9010-330301 Switch & Wire Assembly
10 MC-9228-310111 Spring
11 MC-9299-330301 Starter Pulley
12 MC-9187-332601 Pulley Retainer
13 753-04719 Screw
14 MC-9010-332601 Throttle Cable
15 753-04720 Screw
16 MC-9017-332603 Air Cleaner Cover
17 MC-9252-320001 Air Filter
18 MC-9014-330101 Gasket
19 MC-9NHZ-10/24 Nut
20 MC-9081-330301 Air Box
21 MC-9287-330302 Carburetor Assembly
22 MC-9014-320004 Carburetor Gasket
30
26
28
45
43
2
15
19
18
29
36
39
42
46
