E19
PARTS LIST
13
10
5
4
3
2
Item Part No. Description
1 MC-9228-332617 Shaft Assembly (includes 2)
2 MC-9111-332606 Flex Shaft
3 MC-9059-332601 Rubber Grip
4 753-04722 Grip Assembly
5 MC-9010-332602 Lead Wires
6 MC-9059-332602 Wire Cover
7 MC-9228-330346 Harness Clamp
8 MC-9149-330301 Harness
9 MC-9228-330345 J-Handle Assembly (includes 10-12)
10 MC-9068-330309 J-Handle
11 753-04728 Sponge Handle & Plugs
12 753-04729 J-Handle Hardware
13 MC-9228-A10110 Shield Assembly (includes 14 & 15)
14 MC-9125-331001 Shield Hardware
15 753-04725 Blade w/Hardware
16 MC-9110-A10801 Gearbox
17 MC-9228-330109 StringHead Kit (includes 18 & 19)
18 MC-9072-330101 Spool
19 MC-9024-330101 Spring
20 MC-9228-330110 Bump Knob Assembly (includes 21)
21 MC-9134-330101 Knob Cap
17
18
19
16
9
6
1
8
11
12
20
14
7
21
15

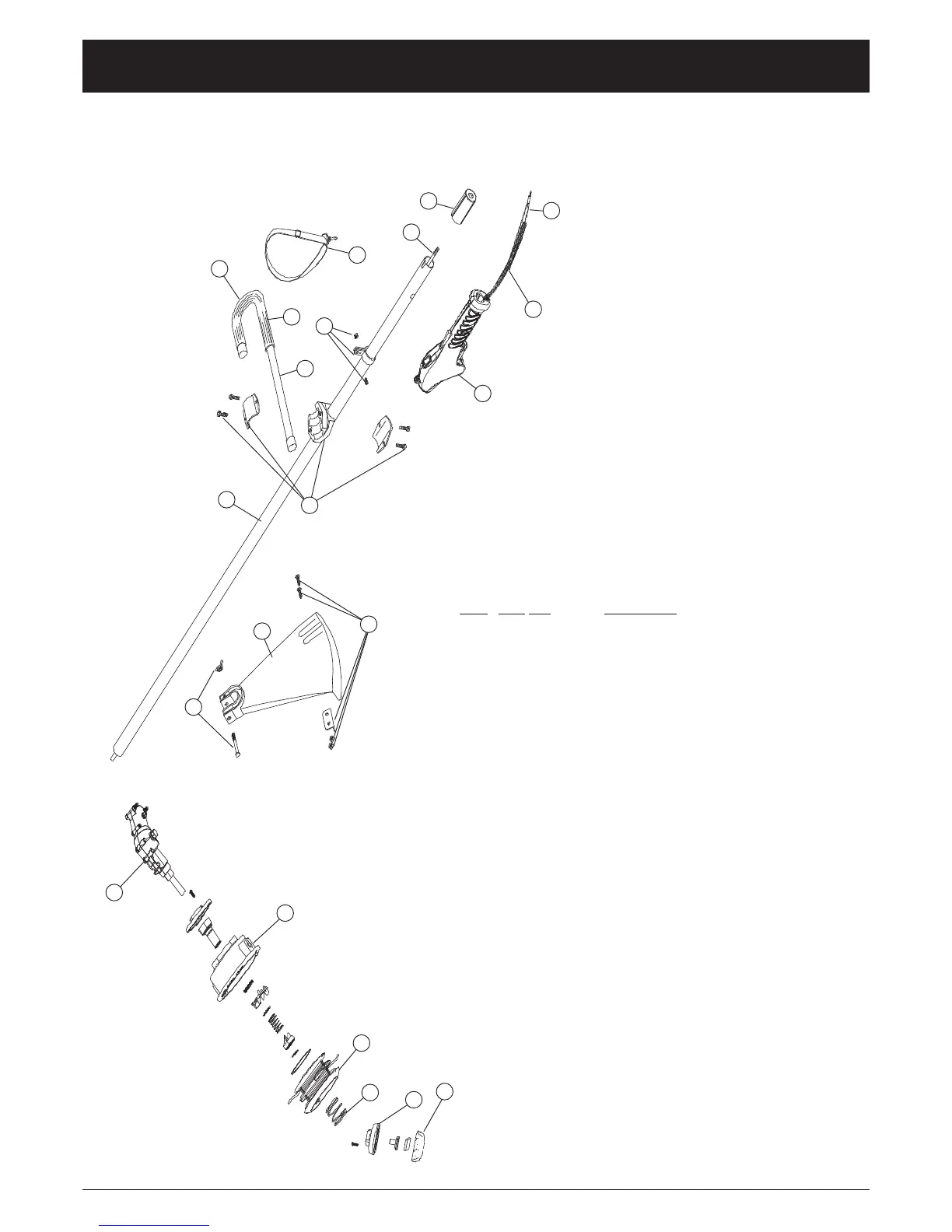

BOOM & TRIMMER PARTS - MODEL MCT333707
2-CYCLE GAS TRIMMER
