Yardistry YM11895 - Page 12

12 support@yardistrystructures.com

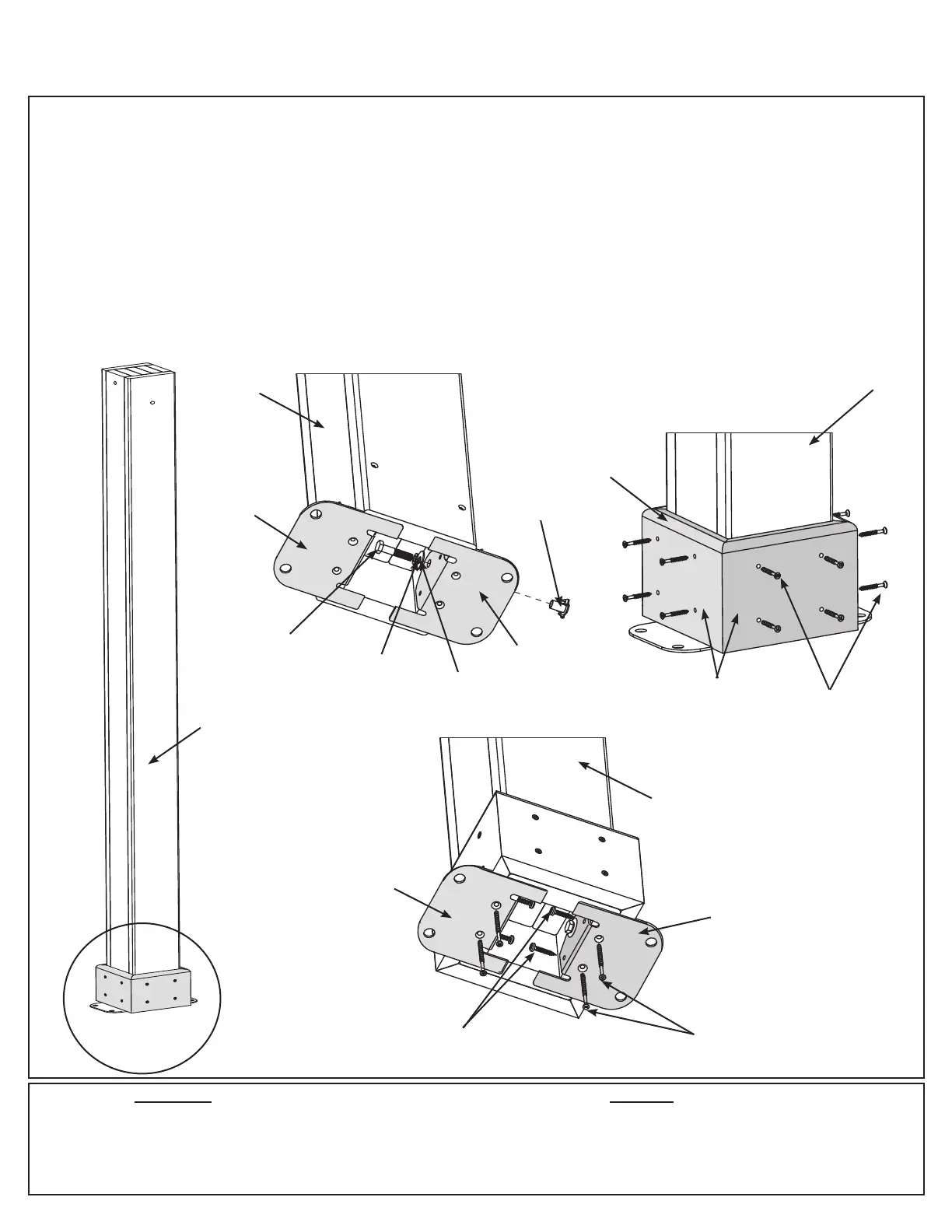

A: At the bottom of each (752) Post insert two 5/16” T-Nuts as shown in g. 2.1 and 2.2.
B: At the bottom of each (752) Post place two Post Mounts tight to the bottom and inside faces as shown in g. 2.1
and 2.2. Loosely attach with one 5/16 x 1-1/4” Hex Bolt (with 5/16” lock washer and 1/4-5/16” large washer) per
mount so they connect to the T-Nuts.
C: On each side of the Posts, place one (738) Plinth ush to the bottom and attach with four #8 x 1-1/2” Wood
Screws per plinth. Rounded edges on top. (g. 2.1 and 2.3)
D: From the bottom of each Post Mount attach to posts with two #8 x 1-1/2” Wood Screws per mount and then from
the inside with two #10 x 1-1/4” Pan Screws per mount These screws are installed at a slight angle. Tighten all
bolts. There will be four Post Assemblies. (g. 2.4)
Step 2: Post Assemblies
HardwareWood Parts
Fig. 2.2
(738) Plinth
4 x (752) Post
16 x (738) Plinth
Top
Bottom
#8 x 1-1/2” Wood Screws
(x 2 per Post Mount, from
bottom)
#8 x 1-1/2”
Wood Screws
(x 4 per Plinth)
Post
Mount
Fig. 2.3
16 x #10 x 1-1/4” Pan Screw
80 x #8 x 1-1/2” Wood Screw
8 x Post Mount
8 x 5/16” T-Nut
8 x 5/16 x 1-1/4” Hex Bolt
(with 5/16” lock washer, 1/4-5/16” large washer)
Fig. 2.1
Post
Mount
(752)
Post
Rounded
Edge on Top
Fig. 2.4
Post
Mount
#10 x 1-1/4” Pan Screws (x 2
per Post Mount, from inside)
1/4 - 5/16”
Large Washer
5/16” Lock
Washer
5/16 x 1-1/4”
Hex Bolt
5/16” T-Nut (x 2
per Post)
Post
Mount
(752)
Post
(752)
Post
(752)
Post
