Yardistry YM11895 - Page 18

18 support@yardistrystructures.com

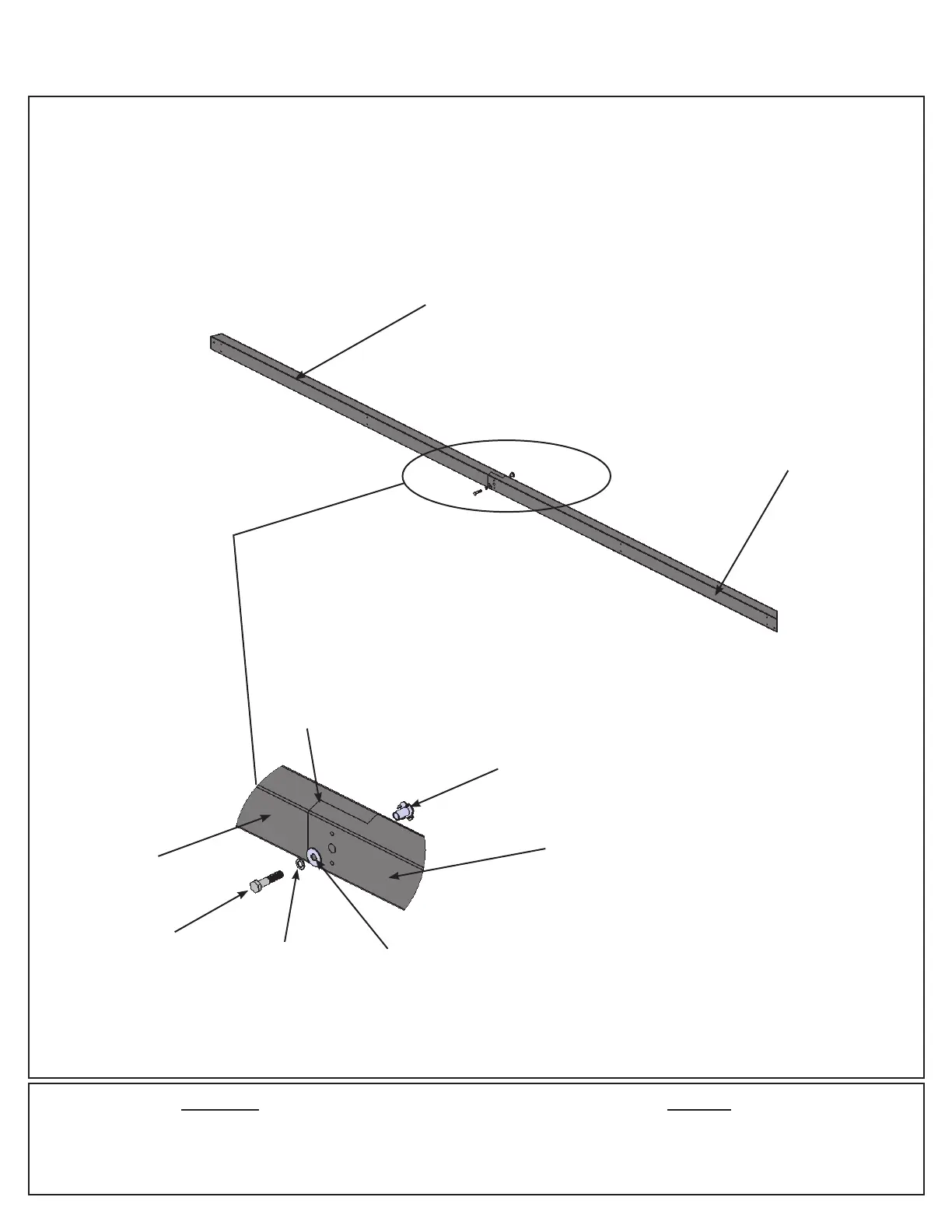

A: Tightly connect one (731) Fascia Left Short and one (730) Fascia Right Short using one 5/16 x 1-1/4” Hex
Bolt (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in g. 6.1 and 6.2.
B: Repeat Step A three more times to make four Fascia Beam Assemblies.
Step 6: Fascia Beam Assembly
Fig. 6.1
Fig. 6.2
HardwareWood Parts
4 x (731) Fascia Left Short
4 x (730) Fascia Right Short
4 x 5/16 x 1-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
(730) Fascia
RIght Short
(731) Fascia
Left Short
(730) Fascia
RIght Short
(731)
Fascia Left
Short
1/4-5/16”
Large
Washer
5/16”
T-nut
5/16 x 1-1/4”
Hex Bolt
Tight
5/16” Lock
Washer
