Step 9: Attach Roof Panels
Part 2

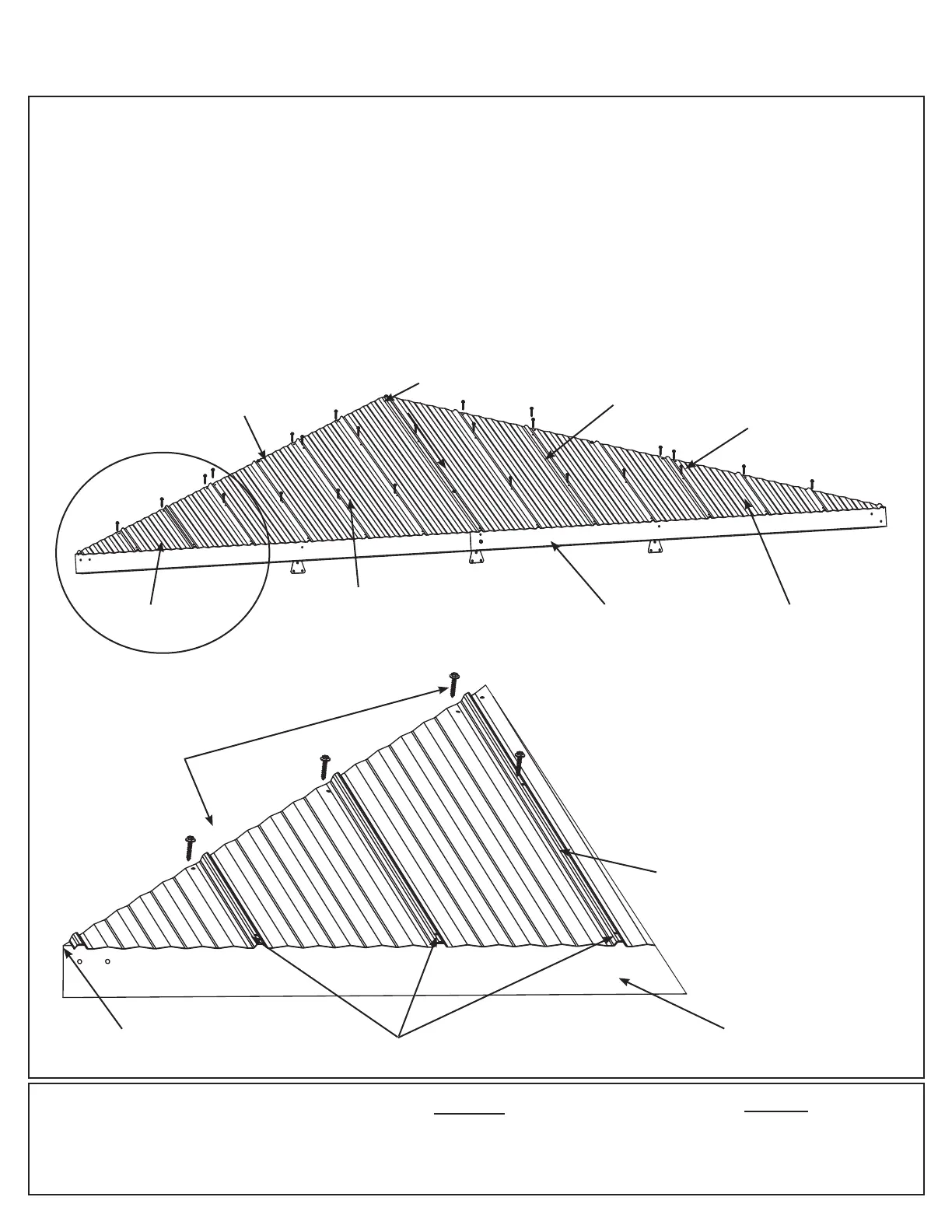

E: Place one Short Panel Left on Roof Rafter Assembly so it overlaps the Long Panel Left and it is ush to the
sides of (729) Corner LT and a slight overhang at the bottom of the Fascia Beam Assembly. There should be no
overhanging at the corners. (g. 9.3 and 9.4)
F: Place one Short Panel Right on Roof Rafter Assembly so it overlaps the Long Panel Right and it is ush to
the side of (737) Corner RT and a slight overhang at the bottom of the Fascia Beam Assembly. There should be
no overhanging at the corners. (g. 9.3 and 9.4)
G: Attach all panels to Roof Rafter Assembly with 25 #8 x 1” Roong Screws in locations shown in g. 9.3. Do
not place any screws along the bottom row. Be sure not to overtighten screws.
H: Repeat Steps E - G for all four Roof Rafter Assemblies.
