Yardistry YM11895 - Page 31

31 support@yardistrystructures.com
Peak
Cap
Carriage Bolt
Fig. 13.3
Peak
Loop

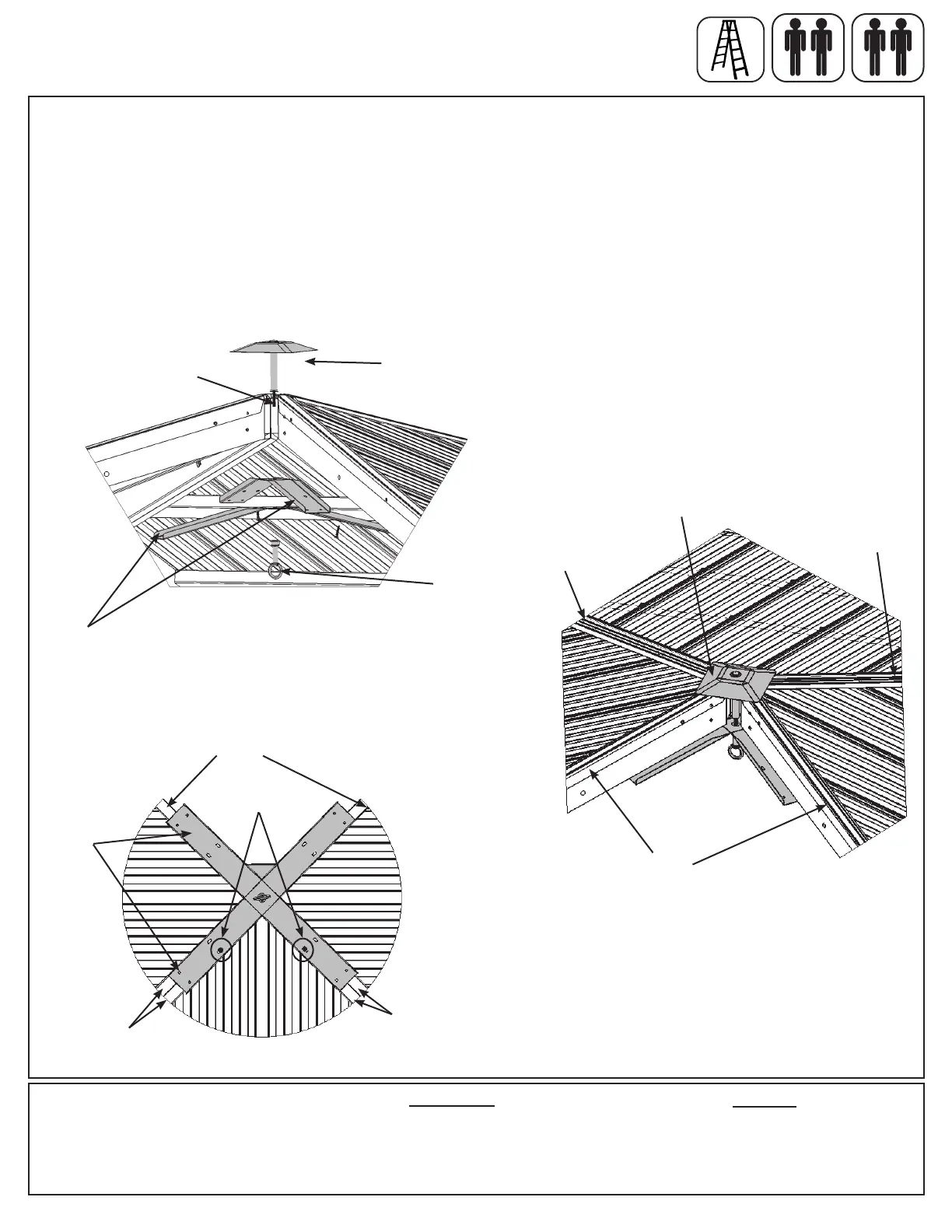

A: Insert Roof Peak Assembly in gap between Roof Panels. Peak Cap to be lined up with (729) Corner LT and
(737) Corner RT. (g. 13.1 and 13.2)
B: Insert both Roof Peak Brackets through Carriage Bolt and attach Peak Loop to Carriage Bolt and twist to
tighten loosely.
C: Loosely attach both Roof Peak Brackets to (729) Corner LT and (737) Corner RT in the slotted holes with two
#10 x 1-1/4” Pan Screws as shown in g. 13.3.
Fig. 13.1
Roof
Peak
Bracket
Roof Peak
Assemlby
Components
2 x Roof Peak Brackets
Step 13: Attach Roof Peak to Roof Panels
x 3
Fig. 13.2
Roof
Peak
Bracket
#10 x 1-1/4” Pan
Screw x 2
Hardware
2 x #10 x 1-1/4” Pan Screw
Corner
LT & RT
Corner
LT & RT
Corner
LT & RT
Corner
LT & RT
Corner
LT & RT
Corner
LT & RT
