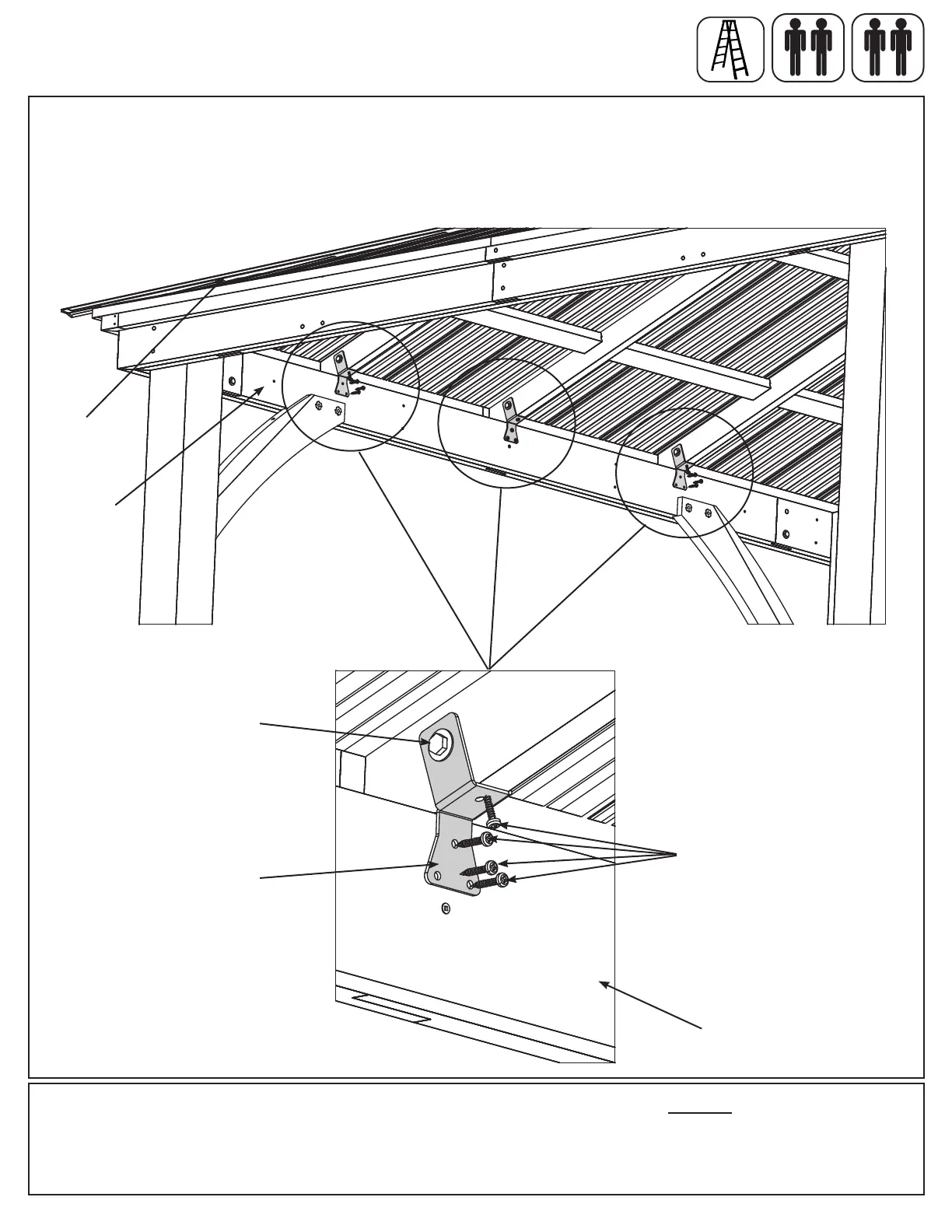

A: From inside the assembly attach Rafter Beam Brackets to Beam Assemblies and rafters with four #10 x 1-1/4”
Pan Screws per bracket. (g. 17.1 and 17.2)
B: Tighten all bolts in Rafter Beam Brackets. (g. 17.1 and 17.2)
Hardware
48 x #10 x 1-1/4” Pan Screw
x 3
Step 17: Secure Rafter Beam Brackets
Inside View
Beam
Assembly
Fig. 17.1
Roof Panel
Assembly
Fig. 17.2
Rafter Beam
Bracket
#10 x 1-1/4”
Pan Screw
Beam
Assembly
Tighten all
Rafter Beam
Bracket bolts
