Step 5: Frame Assembly and Anchoring
Part 2
Note: The bevelled ends on each gusset should always face away from the wood it is attaching to.
C: Make sure each Short Side Assembly is square, top of Beam Assembly is ush to the top of the Post Assembly
and angle of Beam Assembly is ush to the side of the Post Assembly, then facing one Short Beam Assembly
from the outside place one (1017) Short Gusset RT on the right hand side so the top ts tight to the Short Beam
Assembly and the bottom ts tight to the Post Assembly. Attach gusset to Short Beam Assembly with two 5/16 x
3-3/4” Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut). Pre-drill with a 1/8” drill bit then
attach gusset to Post Assembly with three 1/4 x 1-15/16” Lag Screws (with 1/4-5/16” large washer). (F5.4 and F5.5)
D: Repeat Step C on the left hand side with one (1016) Short Gusset LT. (F5.4 and F5.5)
E: Repeat Steps C and D for second Short Side Assembly.

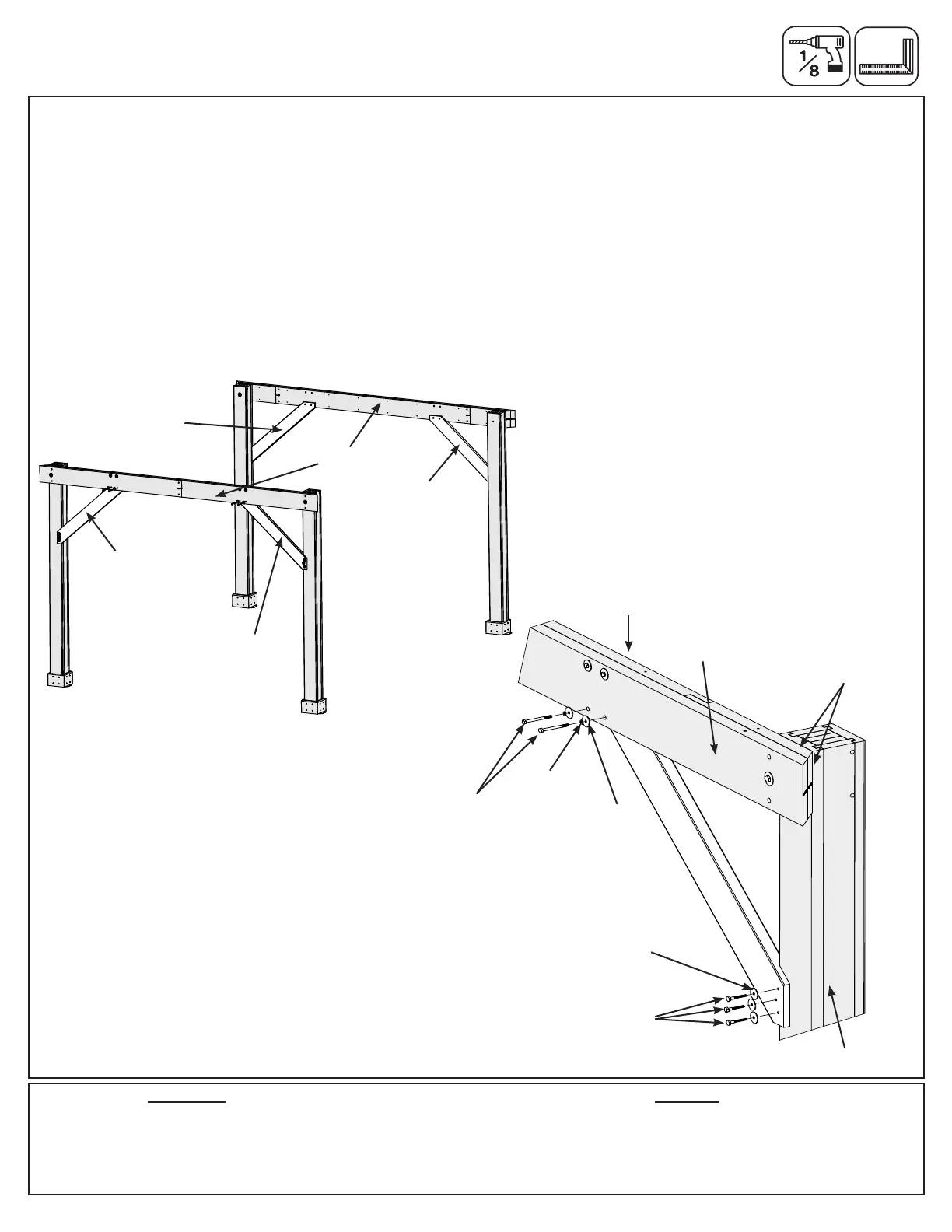

F5.4
2 x (1016) Short Gusset LT
2 x (1017) Short Gusset RT
HardwareWood Parts
12 x 1/4 x 1-15/16” Lag Screw (1/4-5/16” large washer)
8 x 5/16 x 3-3/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
F5.5
Post
Assembly
Short Side
Assembly
5/16”
T-nut
(hidden)
5/16” Lock
Washer
1/4 x
1-15/16”
Lag Screw
1/4-5/16”
Large Washer
5/16 x 3-3/4”
Hex Bolt
Short Beam
Assembly
1/4-5/16”
Large Washer
(1017) Short
Gusset RT
(1016) Short
Gusset LT
Flush
(1017) Short
Gusset RT
(1016) Short
Gusset LT
To Next Page
