24 support@yardistrystructures.com
F5.9
F5.8

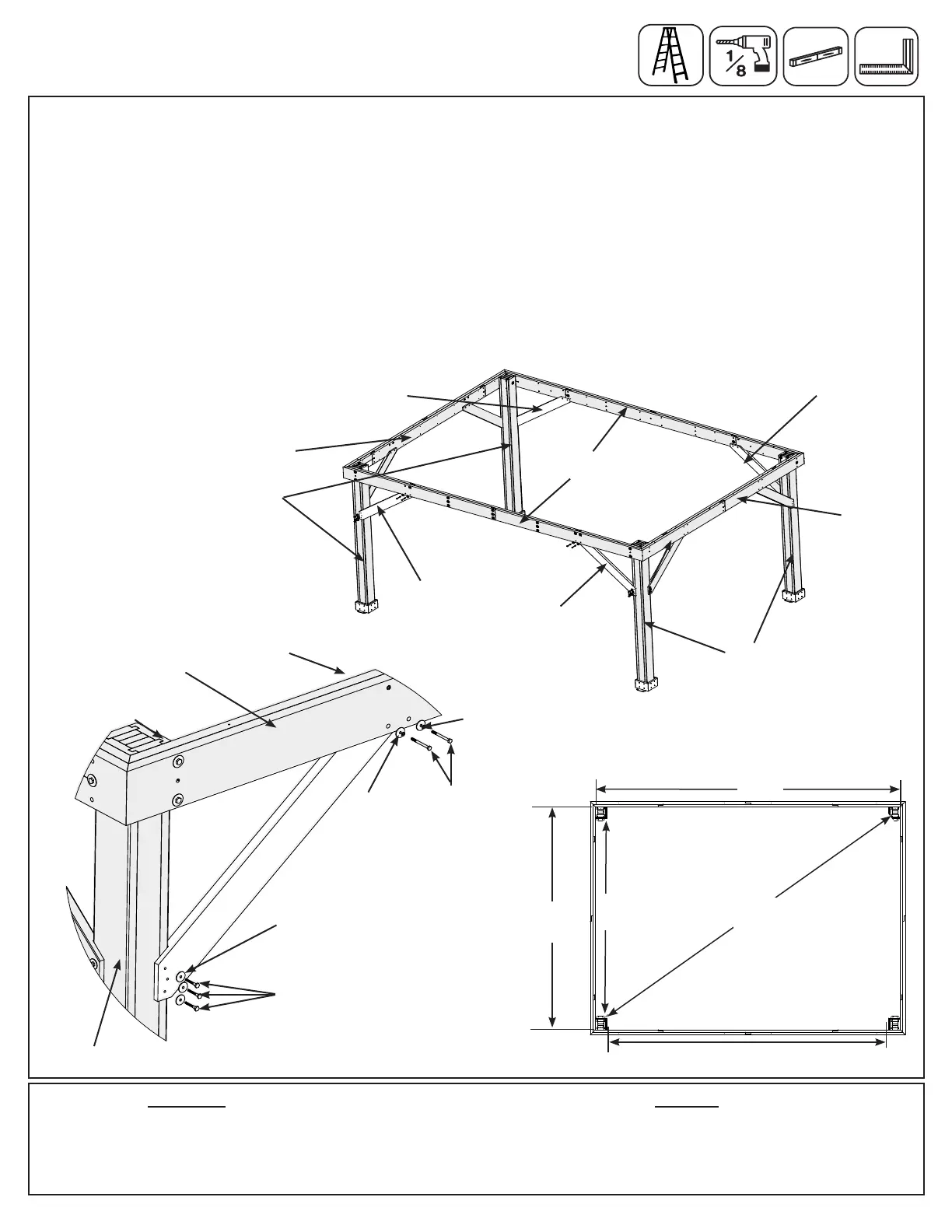

Step 5: Frame Assembly and Anchoring
Part 4
Note: The bevelled ends on each gusset should always face away from the wood it is attaching to.
H: Make sure the Frame Assembly is square and level then facing one Long Beam Assembly from the outside
place one (1012) Straight Gusset Right on the right hand side Post Assembly so the top ts tight to the Long Beam
Assembly and the bottom ts tight to the Post Assembly. Attach gusset to Long Beam Assembly with two 5/16 x
3-3/4” Hex Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut). Pre-drill with a 1/8” drill bit then
attach gusset to Post Assembly with three 1/4 x 1-15/16” Lag Screws (with 1/4-5/16” large washer). (F5.8, F5.9
and F5.10)
I: Repeat Step H to install (1011) Straight Gusset Left on the left hand side Post Assembly. (F5.8 and F5.9)
J: Repeat Steps H and I for the second Long Beam Assembly. (F5.8 and F5.9)
Long Beam
Assembly
5/16” Lock
Washer
Long Beam
Assembly
1/4-5/16”
Large Washer
5/16 x 3-3/4”
Hex Bolt
2 x (1012) Straight Gusset Right
2 x (1011) Straight Gusset Left
HardwareWood Parts
12 x 1/4 x 1-15/16” Lag Screw (1/4-5/16” large washer)
8 x 5/16 x 3-3/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Post
Assembly
(1011) Straight
Gusset Left
(1012) Straight
Gusset Right
(1011) Straight
Gusset Left
(1012) Straight
Gusset Right
Post
Assembly
Post
Assembly
Short Side
Assembly
Short Side
Assembly
F5.10
1/4 x
1-15/16”
Lag Screw
5/16”
T-nut
(hidden)
1/4-5/16”
Large Washer
4.19
7
8
13'-8
2.97
9' - 8-7/8"
Plinth to Plinth
3.31
to Plinth
14'-10
"
8
4.53
Outside Plinth
Posts
"
3
10' - 10-3/8"
Outside Posts
5.20
17'-1"
Post to Post
Post to Post
10’ 10-5/16”
3.31 m
Plinth to Plinth
9’ 8-13/16”
2.967 m
Post to Post
14’ 10-3/8”
4.531 m
Plinth to Plinth
13’ 8-7/8”
4.188 m
Post to Post
17’ 3/16”
5.186 m
