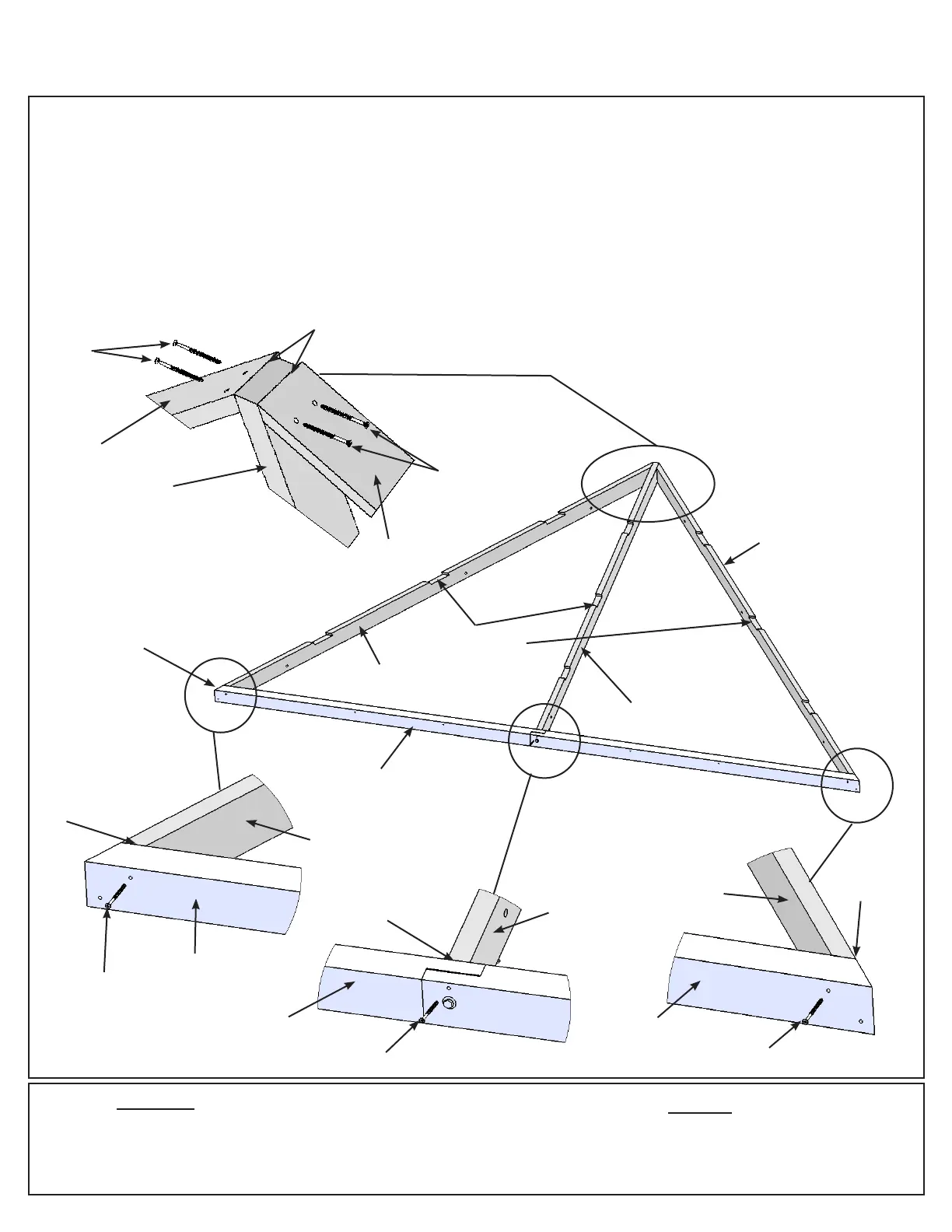

A: On each side of one (634) Rafter place one (624) Rafter Corner Left and one (623) Rafter Corner Right so
the tops and edges are ush then attach with two #8 x 2-1/4” Wood Screws per side. (F7.1 and F7.2)
B: Place Fascia Beam Assembly from Step 6 on the bottom of (624) Rafter Corner Left, (623) Rafter Corner
Right and (634) Rafter so the sides are ush then attach with one #8 x 2-1/4” Wood Screw at each end and one
#8 x 2-1/2” Wood Screw in the middle. (F7.1, F7.3, F7.4 and F7.5)
C: Repeat Steps A and B to make a second Small Roof Assembly.
Hardware
Wood Parts
#8 x 2-1/4”
Wood Screws
(634)
Rafter
Fascia Beam
Assembly
Step 7: Small Roof Assembly
Part 1
F7.1
12 x #8 x 2-1/4” Wood Screw
2 x #8 x 2-1/2” Wood Screw
2 x (634) Rafter
2 x (623) Rafter Corner Right
2 x (624) Rafter Corner Left
F7.3
F7.4
Note notches
facing up
Flush
Fascia Beam
Assembly
Fascia Beam
Assembly
Flush
(634)
Rafter
#8 x 2-1/4”
Wood Screws
#8 x 2-1/4”
Wood Screws
Flush
F7.2
(624) Rafter
Corner Left
(624) Rafter
Corner Left
(623) Rafter
Corner Right
(623) Rafter
Corner Right
Note angle
side up
(634)
Rafter
(623) Rafter
Corner Right
#8 x 2-1/4”
Wood
Screws
F7.5
Fascia Beam
Assembly
(624) Rafter
Corner Left
Flush
#8 x 2-1/2”
Wood Screws
