Yardistry YM11915 - Page 42

42 support@yardistrystructures.com
30
30
Hardware
F12.9
16 x #8 x 1-1/2” Wood Screw

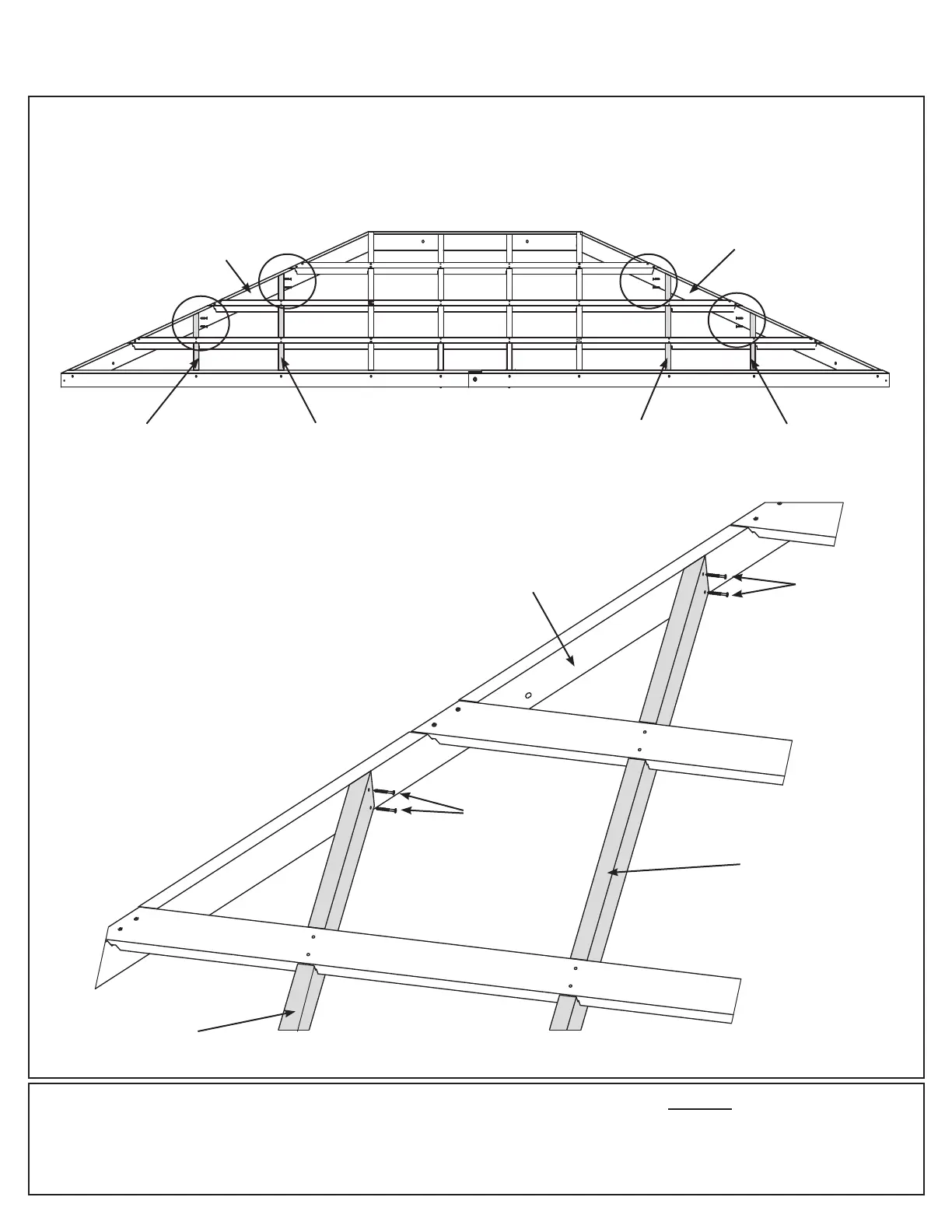

F: Attach (629) Rafter Short RT and (632) Rafter Centre RT to (623) Rafter Corner Right and (631) Rafter Centre
LT and (630) Rafter Short LT to (624) Rafter Corner Left with two #8 x 1-1/2” Wood Screw per rafter. Complete
for each Large Roof Assembly. (F12.9 and F12.10)
#8 x 1-1/2”
Wood Screws
(624) Rafter
Corner Left
(623) Rafter
Corner Right
F12.10
(624) Rafter
Corner Left
(629) Rafter
Short RT
(632) Rafter
Centre RT
#8 x 1-1/2”
Wood Screws
(630) Rafter
Short LT
(631) Rafter
Centre LT
(630) Rafter
Short LT
(631) Rafter
Centre LT
Step 12: Large Roof Assembly
Part 5
