Step 15: Attach Roof Edges - Large Roof Assemblies
Hardware
F15.1
46 x #8 x 1” Roong Screw

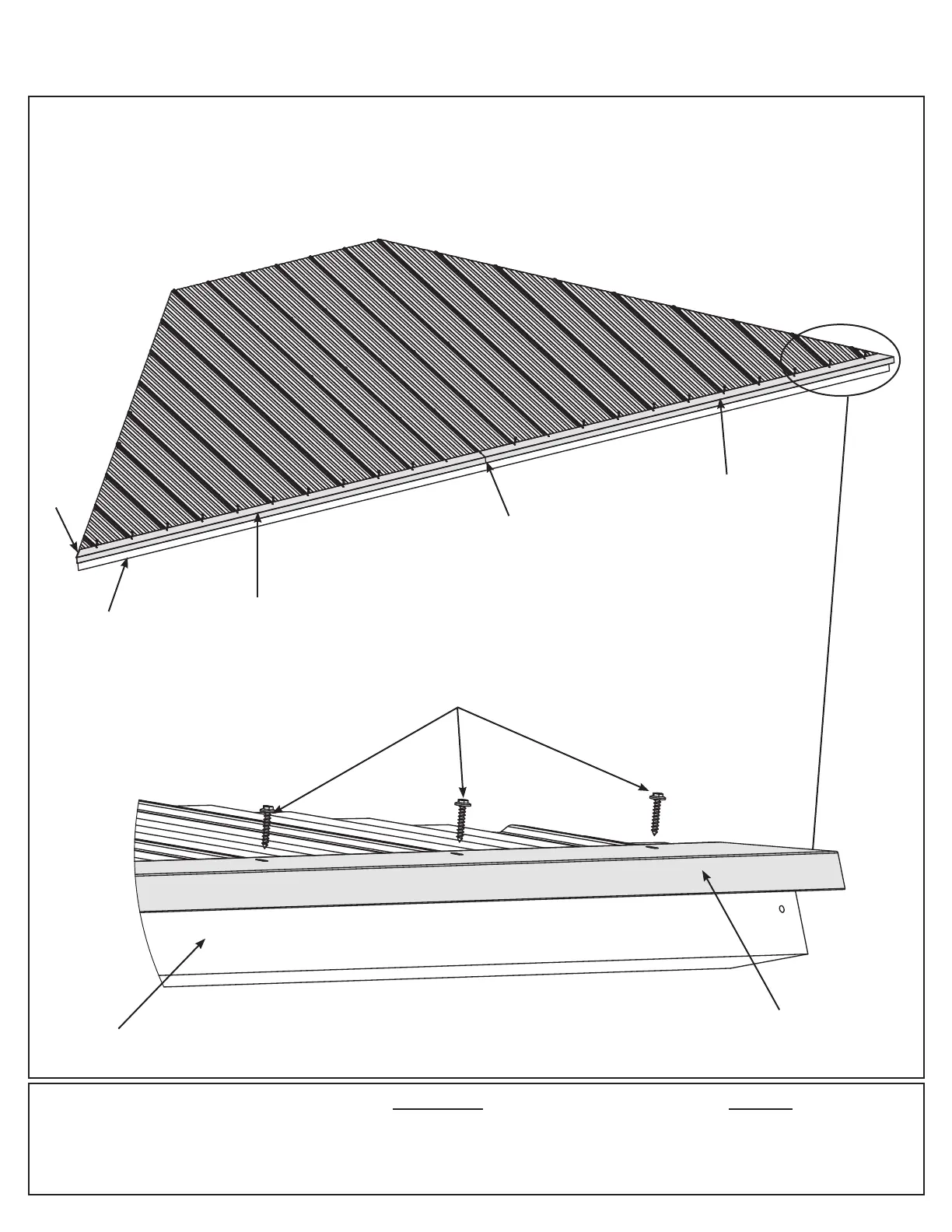

A: Place one Roof Edge Left 96.2 and one Roof Edge Right 96.2 on the bottom of each Large Roof Assembly so
the ends are ush with the outside ends of the Large Fascia Beam Assembly and meet tight in the centre. Attach
both Roof Edges with 23 #8 x 1” Roong Screws per Large Roof Assembly. (F15.1 and F15.2)
Components:
2 x Roof Edge Right 96.2
2 x Roof Edge Left 96.2
F15.2
Top
Bottom
#8x 1” Roong
Screws (x 23)
Large Fascia
Beam Assembly
Roof Edge
Left 96.2
Roof Edge
Right 96.2
Tight at centre
Flush
Large Fascia
Beam Assembly
Roof Edge
Right 96.2
