Yardistry YM11915 - Step 17: Peak Cap Assembly

50 support@yardistrystructures.com
47
47
Carriage Bolt
F17.1
Components:
1 x Peak Cap Assembly
Step 17: Peak Cap Assembly
F17.2
Contoured
Washer
Peak
Post
Hardware
3 x Carriage Bolt
3 x Contoured Washer
3 x Peak Post
3 x Spring Clip
Spring
Clip

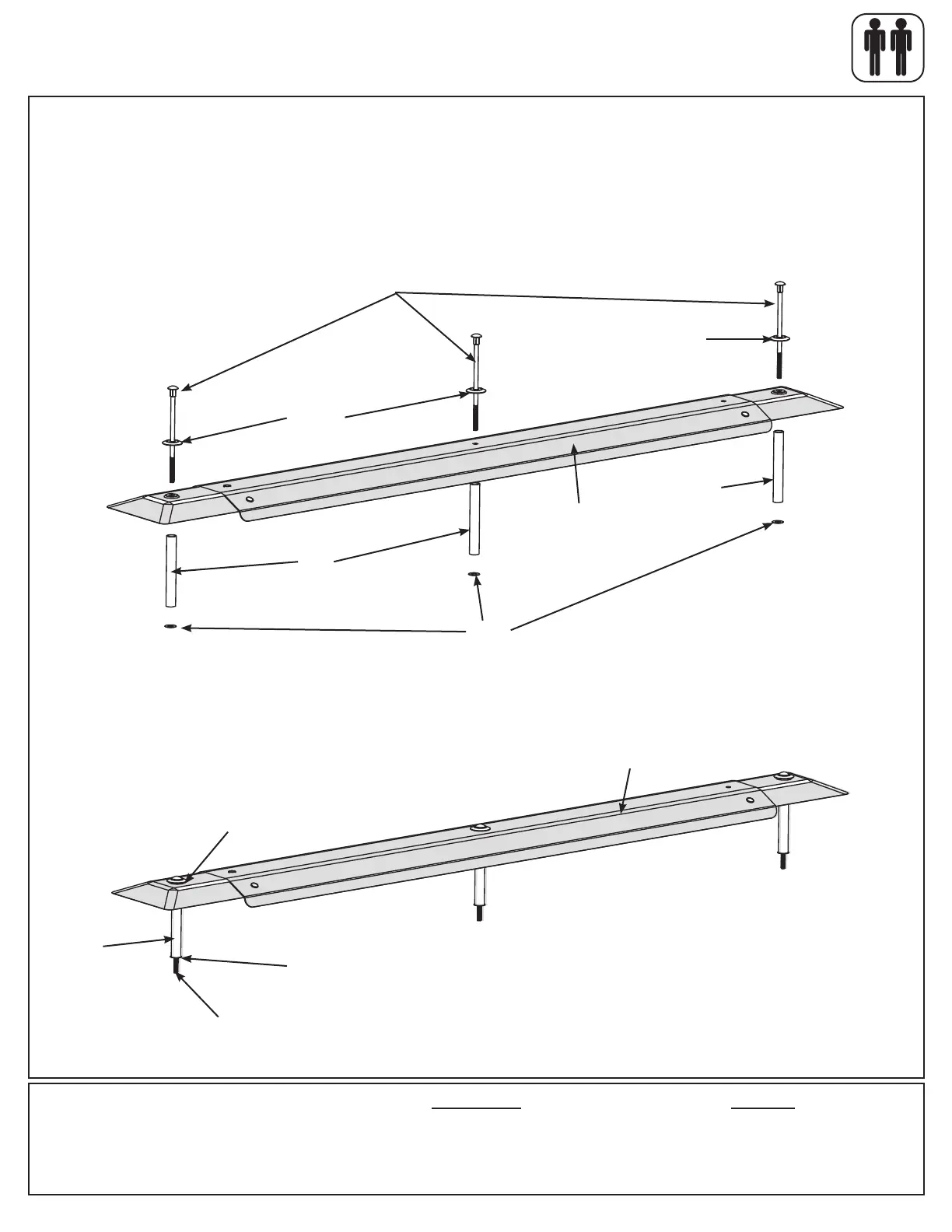

A: Insert three Carriage Bolts with Contoured Washers through the top of Peak Cap Assembly. Place one
Peak Post over each Carriage Bolt and secure with Spring Clips. The Spring Clip holds the assembly together.
(F17.1 and F17.2)
Contoured
Washer
Carriage
Bolt
Peak Cap
Assembly
Contoured
Washer
Peak
Post
Peak Cap
Assembly
Spring
Clip
Peak
Post
