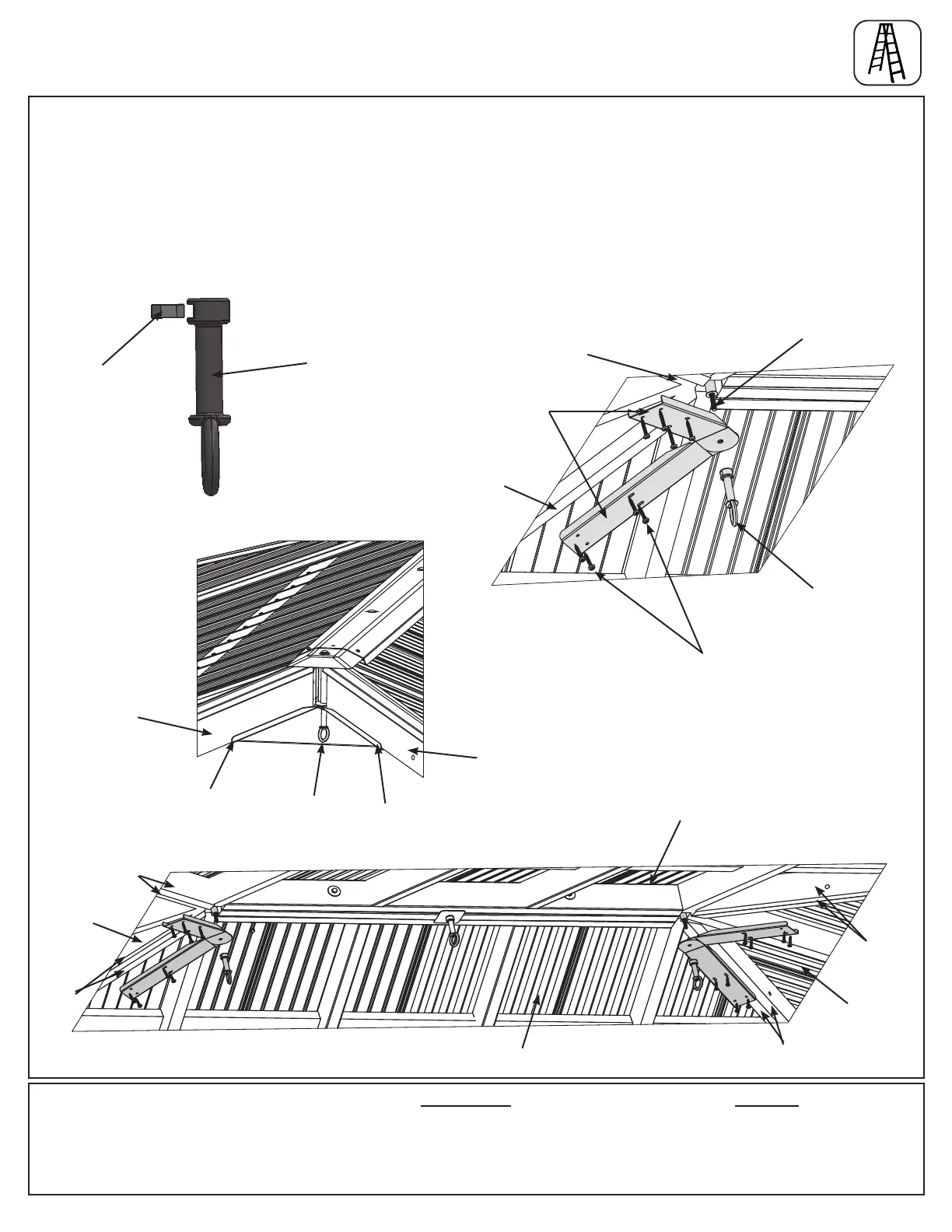

Yardistry YM11915 - Step 24: Secure Roof Peak Detail

60 support@yardistrystructures.com
X
X
X
58
51
Peak
Loop
1/4” Nut
A: Insert one 1/4” Nut into two Peak Loops. Be careful nut is loose and will fall out until attached to Carriage
Bolt. (F24.1)
B: Insert two Roof Peak Brackets through each end Carriage Bolt, so they t over the Rafter Corners, and attach
Peak Loops to Carriage Bolts then twist to tighten. (F24.2, F24.3 and F24.4)
C: Attach each set of Roof Peak Brackets to the Rafter Corners of the connected Large and Small Roof
Assemblies in the slotted holes with four #10 x 1-1/4” Pan Screws per bracket. (F24.2, F24.3 and F24.4)
F24.1
Components:
2 x Peak Loop
2 x 1/4” Nut
4 x Roof Peak Bracket
Step 24: Secure Roof Peak Detail
F24.3
F24.4
F24.2
Carriage Bolt
Peak
Loop
Rafter
Corner
Rafter
Corner
Rafter
Corner
Rafter
Corner
Peak
Loop
Roof Peak
Bracket
Roof Peak
Bracket
Roof Peak
Bracket
#10 x 1-1/4” Pan Screw
x 4 per bracket
Rafter
Corner
Rafter
Corner
Rafter
Corner
Rafter
Corner
Small
Roof
Assembly
Hardware
16 x #10 x 1-1/4” Pan Screw
Small Roof
Assembly
Large Roof Assembly
Large Roof
Assembly
