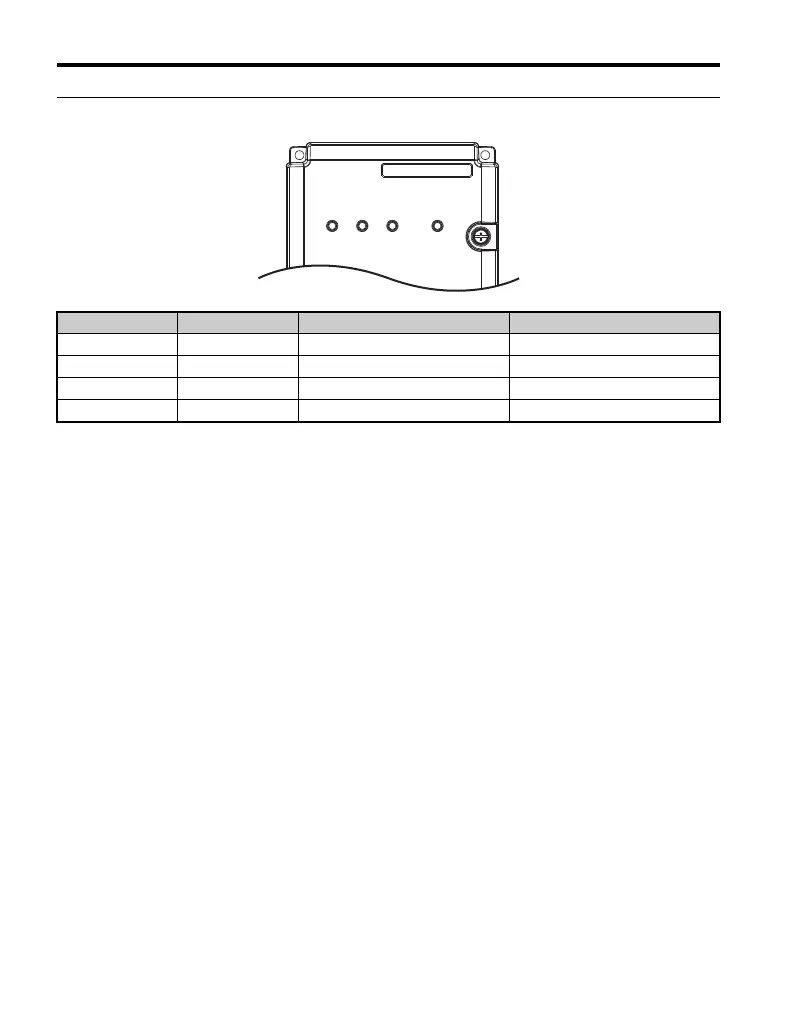

◆ CDBR Braking Unit LED Display
LED Color Lit Off
MASTER Green CDBR is functioning as Master CDBR is functioning as Slave
SLAVE Green CDBR is functioning as Slave CDBR is functioning as Master
DISABLE Red Fault has occurred Normal operation
CHARGE Red CDBR is powered on −
MASTER SLAVE DISABLE CHARGE
