9 INSTALLING AN NS115 Module
E-9

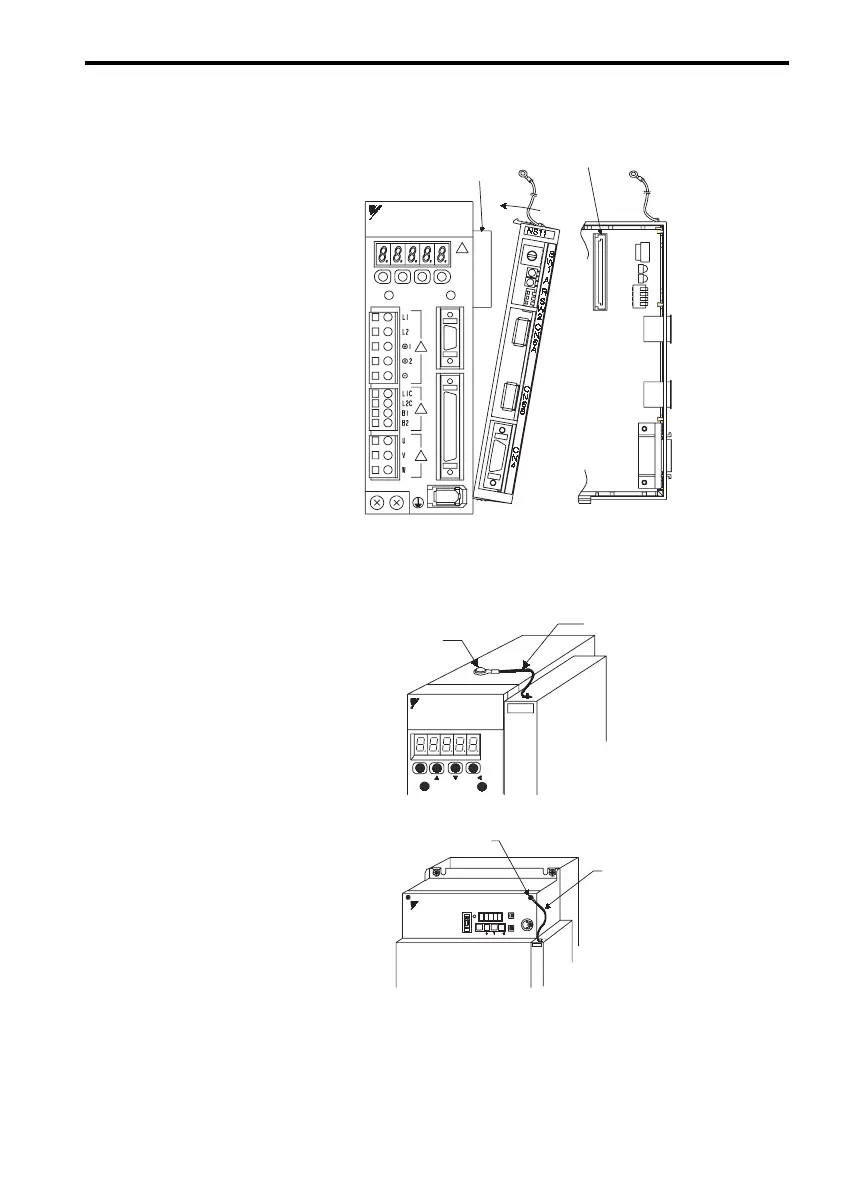

2. Mount an NS115 Module.
3. For grounding, connect the ground wire of the NS115
Module to the terminal marked
“G” on the
SERVOPACK.
CN10
Connector (to SERVOPACK)
SGDH-
SERVOPACK
YASKAWA
5
Ground wire
G
For the SERVOPACK (30 W to 5.0 kW)
MODE/SET
DATA/
CHARGE
POWER
SGDH-
SERVOPACK
YASKAWA
NS115
SGDH-
SERVOPACK 200 V
YASKAWA
G
Ground wire
For the SERVOPACK (6.0 kW to 7.5 kW)
NS100
