E-10

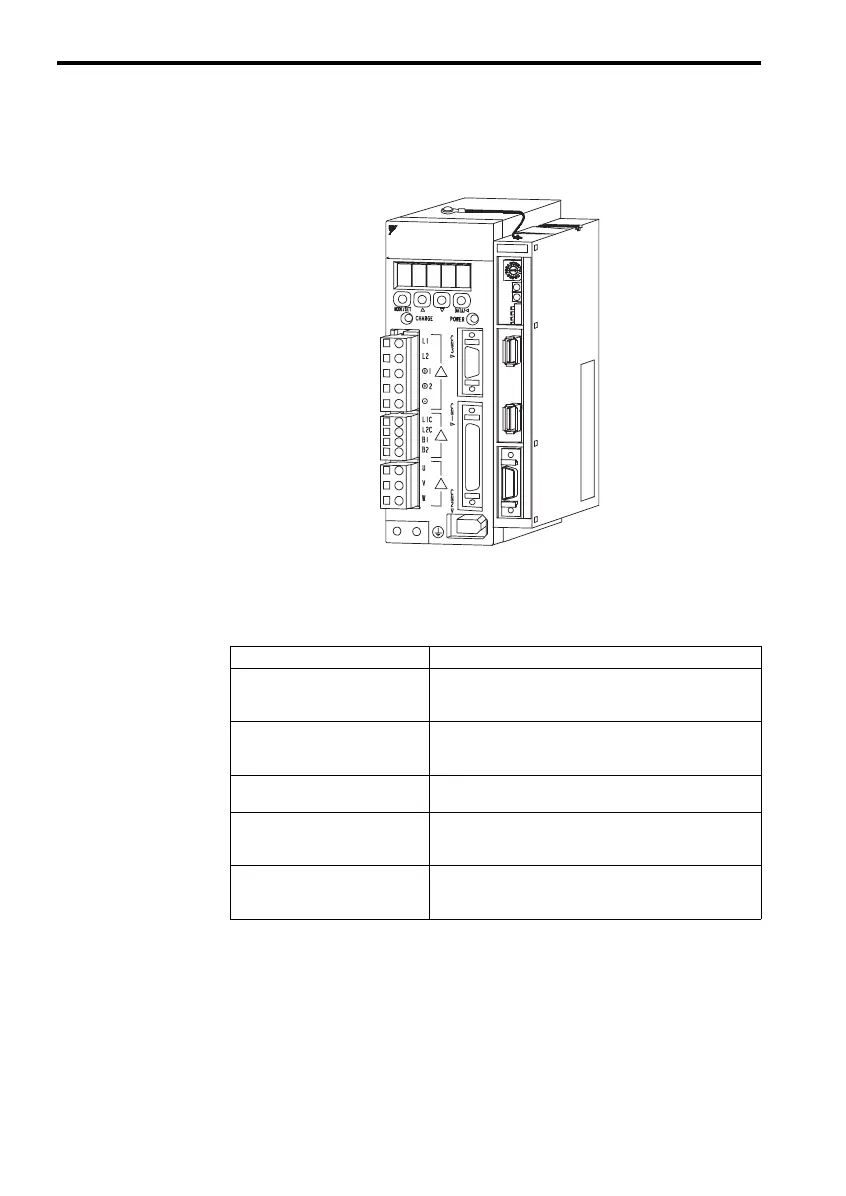

The following diagram shows the SERVOPACK with the NS115 Module correctly
mounted.
Installation Sites
For installation sites, use proper care with the following notes.
Situation Notes on Installation
When installed in a control panel Design the control panel size, unit layout, and cooling method
so that the temperature around the periphery of the SERVO-
PACK does not exceed 55°C.
When installed near a heating unit Suppress radiation heat from the heating unit and a tempera-
ture rise caused by convection so that the temperature around
the periphery of the SERVOPACK does not exceed 55°C.
When installed near a source of
vibration
Install a vibration isolator underneath the SERVOPACK to
prevent it from receiving vibration.
When installed in a place receiving
corrosive gases
Corrosive gases do not immediately affect the SERVOPACK
but will eventually cause contactor-related devices to malfunc-
tion. Take appropriate action to protect against corrosive gases.
Others Avoid installation in a hot and humid place or where excessive
dust or iron powder is present in the air. Install in a place
where the altitude is 1000 m or less.
