10.5 I/O Signal Cables for SERVOPACKs
10.5.1 For Σ-7S Analog Voltage/Pulse Train Reference SERVOPACKs
10-16

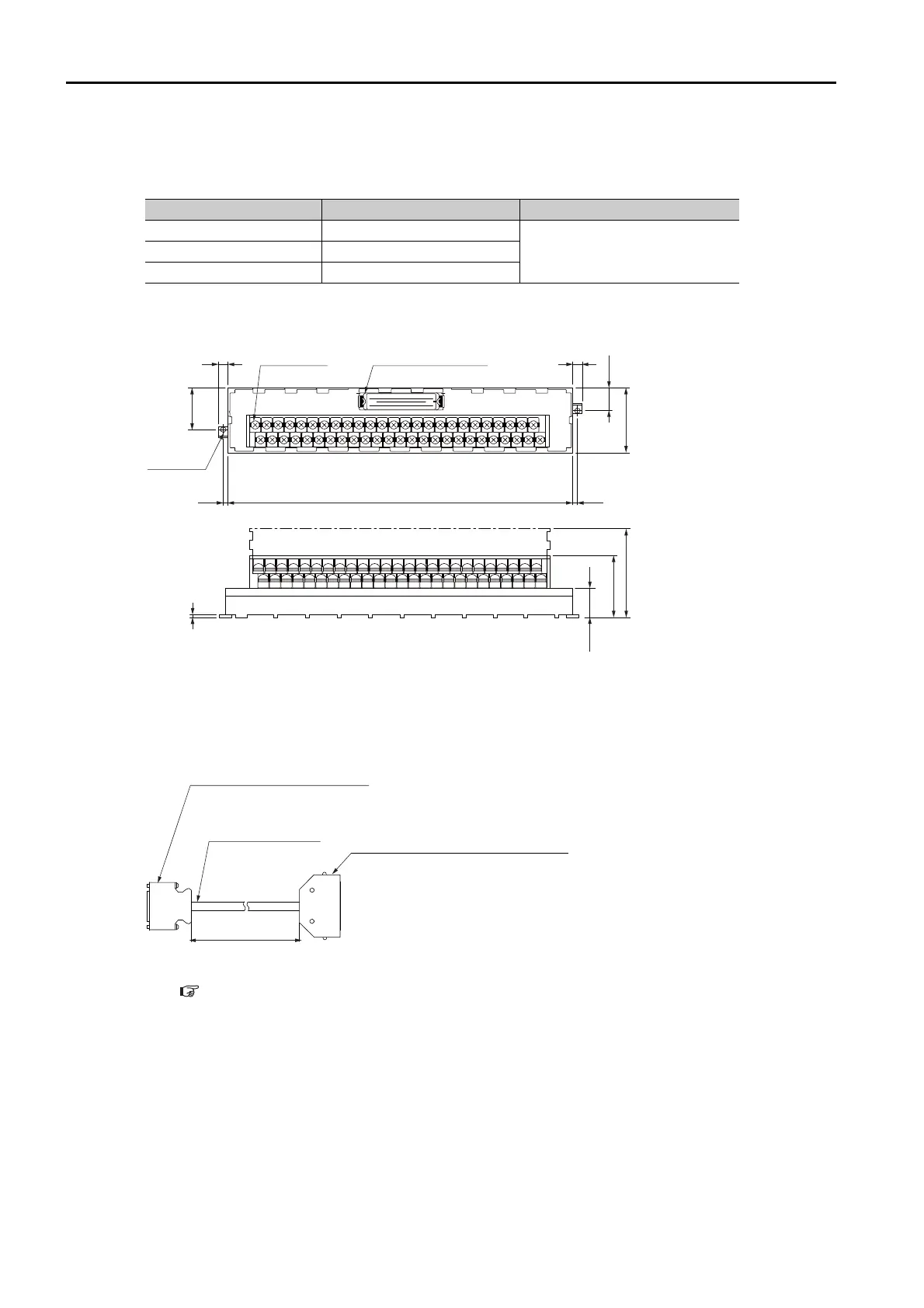

Connector-Terminal Block Converter Unit
 Selection Table
 Dimensional Drawing
 Dimensional Drawing of Enclosed Cable
Note: The same pin numbers are used for the SERVOPACK connector and the terminal block. To assemble your
own cables, refer to the following section for the wiring specifications.
 Wiring Specifications on page 10-14
Order Number Length of Enclosed Cable (L) Inquires
JUSP-TA50PG-E 0.5 m
Yaskawa Controls Co., Ltd. JUSP-TA50PG-1-E 1 m
JUSP-TA50PG-2-E 2 m
1
19
33
16
32
50
1
1
2
49
50
MR-50RMD2G+
7
7
15.5
45
3.5
3.5
29.5
2 × 3.5 dia.
holes
247.5
2
20.5
43.5
(62)
Unit: mm
With terminal block
cover open
Can be mounted to DIN rail.
Connector Plug (50P)
Terminal block (50P)
M3.5 screws
L
AWG28, 25P
UL20276 VW-1SC
Unit: mm
MR-50L+ (Honda Tsushin Kogyo Co., Ltd.)
Case
MRP-50F01 (Honda Tsushin Kogyo Co., Ltd.)
Terminal Block Converter Unit connector (50P)
Cable (black)
10350-52Z0-008 (3M Japan Limited)
Shell
10150-6000EL (3M Japan Limited)
SERVOPACK connector (50P)
