YASKAWA E-V Series Selection Manual

10.11 Serial Command Cables (Connector Kit Only)
10-37
10
Cables and User-Assembled Wiring Materials for SERVOPACKs
10.11 Serial Command Cables (Connector Kit Only)
Use these Cables to connect INDEXER Modules to host controllers.
The Connector Kit that is used is given below. Consult Yaskawa Controls Co., Ltd. for the
cable.
Selection Table
* From 3M Japan Limited
• Wire Sizes

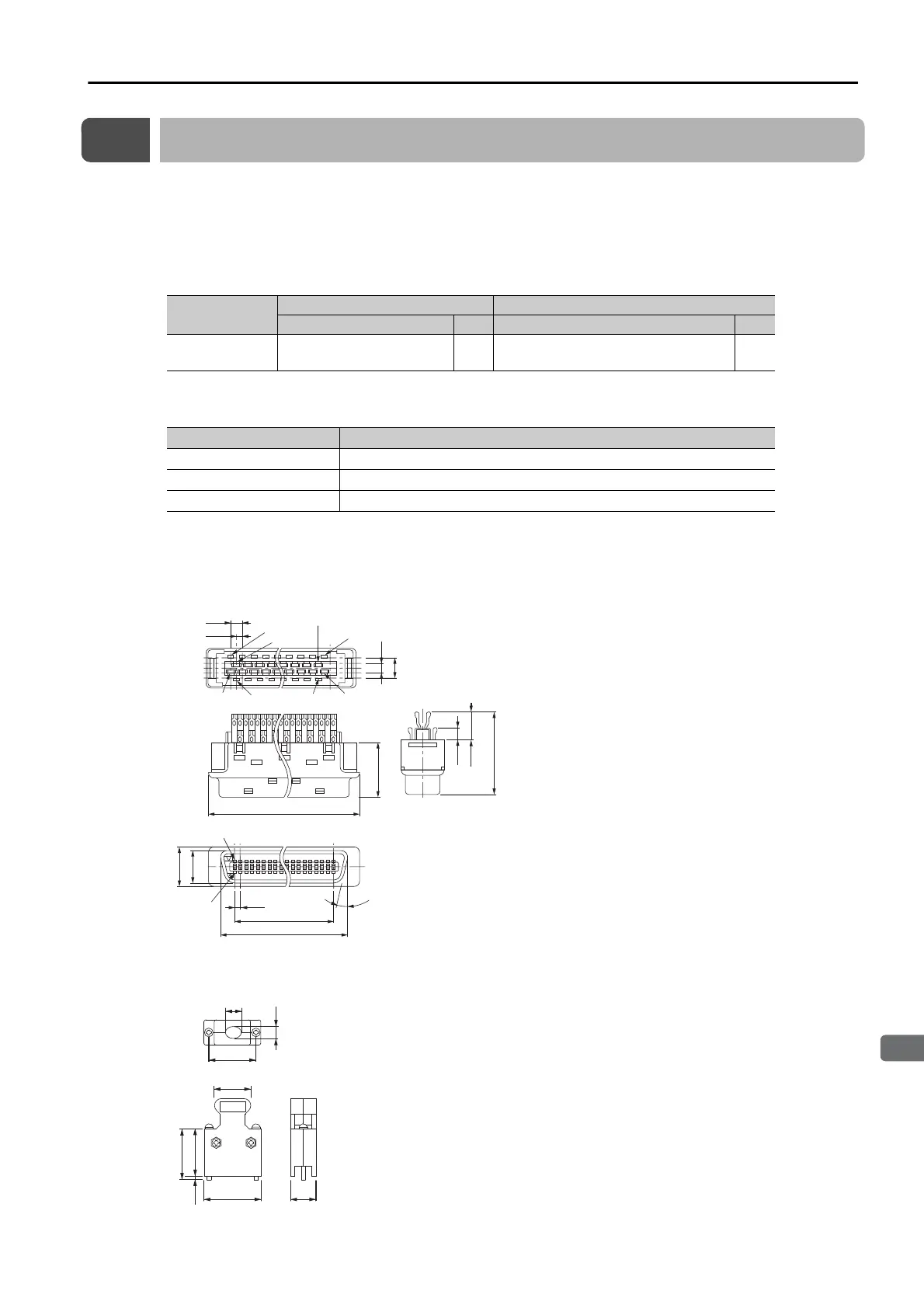

Dimensional Drawings
 Connector
 Case
Connector Kit
Model Number
Case Connector
Model Qty Model Qty
JZSP-CHI9-1 10314-52A0-008* 1 set
10114-3000PE*
(soldered)
1
Item Specification
Cable Use a twisted-pair or screened twisted-pair cable.
Applicable Wires AWG24, AWG26, AWG28, or AWG30
Cable Finished Diameter 16 mm max.
2.54
Pin 8
1.27
Pin 8
Pin 1
13.6
7.62
15°
1.27
18.2
5.1
(6.8)
19.5
(2.9)
2.3
12.7
Pin 9
Pin 1
Pin 2
Pin 6
Pin 7
Pin 14
Pin 13
9.1
7.5
Unit: mm
3M
12.7
29.5
18.2
23.6
8.5
39.0
23.8
7.0
(5.2)
Unit: mm
