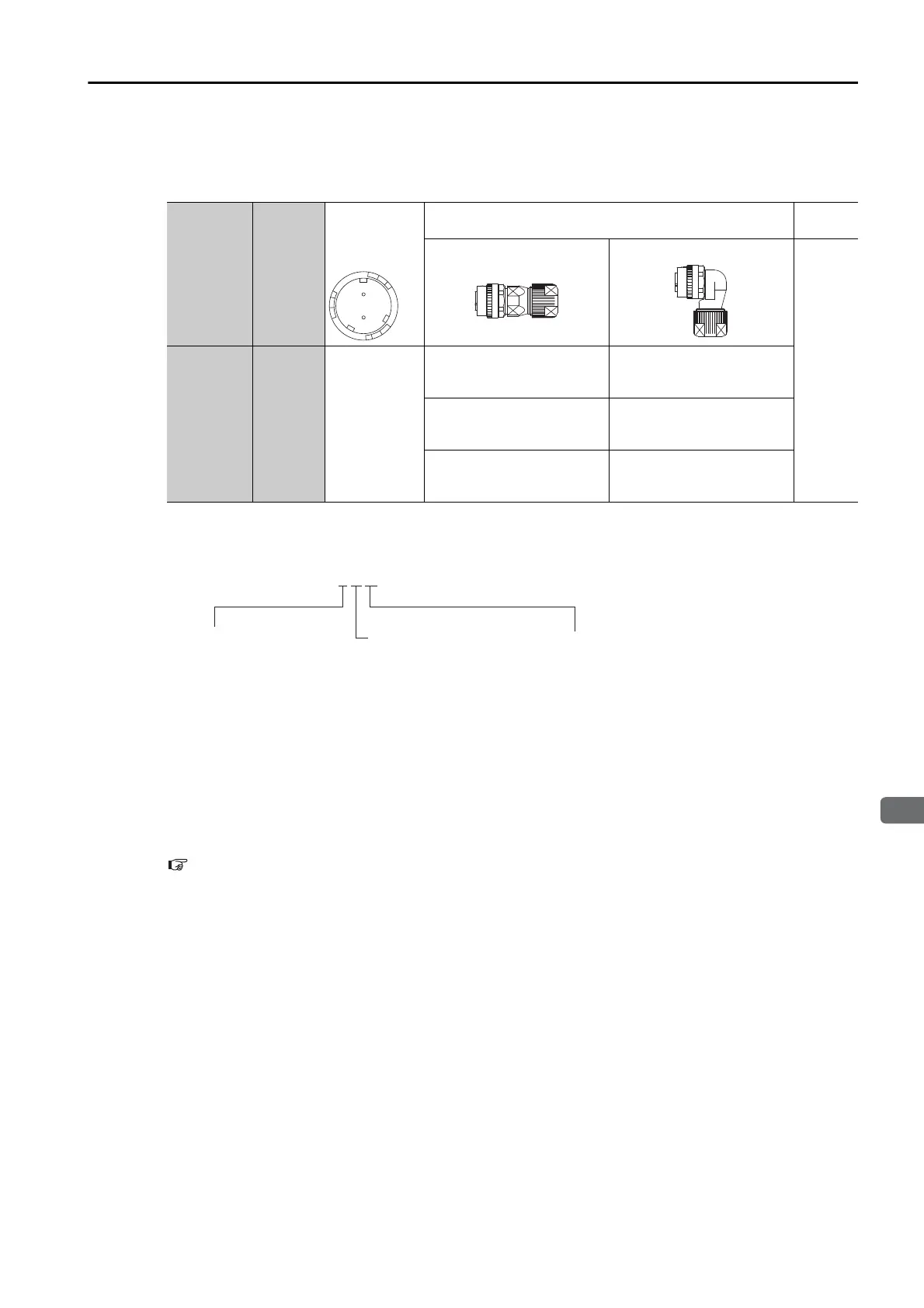

4.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
4.3.3 IP67-Structure/European-Safety-Standard-Compliant Servomotor Connectors for 1.5 kW to 7.0 kW
4
Cables and User-Assembled Wiring Materials for SGM7A Rotary Servomotors
4-19
For Servomotors with Holding Brakes
A Servomotor Connector and Brake Power Supply Connector are required.
The Servomotor Connector is also used for Servomotors without Holding Brakes.
Note: 1. Yaskawa does not specify what wiring materials to use. Use appropriate wiring materials for the current
specifications and connectors.
2. Brake Power Supply Connector Kits are available from Yaskawa Controls Co., Ltd. Use the following model
numbers.
*1. M-size Connector Kits are available as a standard products.
*2. A 357J-50448T Crimping Tool from DDK Ltd. is required.
For Built-in Cooling Fan
A cooling fan is built into the SGM7A-70 Servomotor.
Refer to the following section for the built-in cooling fan connector specifications for the
SGM7A-70 Servomotor.
For Built-in Cooling Fan on page 4-15
Servomo-
tor Model
Capacity
Servomotor
Connector
Model
(Receptacle)
Order Number
Manu-
facturer
Straight Plug
Right-Angle Plug
DDK
Ltd.
SGM7A-15
SGM7A-20
SGM7A-25
SGM7A-30
SGM7A-40
SGM7A-50
1.5 kW to
5.0 kW
CM10-R2P-D
CM10-SP2S-S-D
Applicable cable diameter:
4.0 mm to 6.0 mm
CM10-AP2S-S-D
Applicable cable diameter:
4.0 mm to 6.0 mm
CM10-SP2S-M-D
Applicable cable diameter:
6.0 mm to 9.0 mm
CM10-AP2S-M-D
Applicable cable diameter:
6.0 mm to 9.0 mm
CM10-SP2S-L-D
Applicable cable diameter:
9.0 mm to 11.6 mm
CM10-AP2S-L-D
Applicable cable diameter:
9.0 mm to 11.6 mm
1
2
J Z S P - C V B 9 - S M S2 - E
Connector Shape
S: Straight plug
A: Right-angle plug
Contact Pin Type
S2: Soldered
C3: Crimped
*2
Bush Size
*1
S: S size (4.0 mm to 6.0 mm dia.)
M: M size (6.0 mm to 9.0 mm dia.)
L: L size (9.0 mm to 11.6 mm dia.)
