4.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
4.3.4 Cables without Connectors
4
Cables and User-Assembled Wiring Materials for SGM7A Rotary Servomotors
4-21
SGM7A-08 or -10 (750 W or 1.0 kW)
* Replace the boxes () in the order number with the cable length (05, 10, 15, 20, 30, 40, or 50).
Item Standard Cable Flexible Cable
Order Number*
JZSP-CSM91--E
(maximum length: 50 m)
JZSP-CSM81--E
(maximum length: 50 m)
Specifications
UL2517 (rated temperature:105°C)
AWG16 × 4C, AWG20 × 2C
UL2517 (rated temperature:105°C)
AWG16 × 4C, AWG22 × 2C
Power lines: AWG16 (1.31 mm
2
)
Outer diameter of insulating sheath:
2.15 mm
Power lines: AWG16 (1.31 mm
2
)
Outer diameter of insulating sheath:
2.35 mm
Holding brake lines: AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.6 mm
Holding brake lines: AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath:
1.37 mm
Finished Diameter 8 mm ±0.3 mm

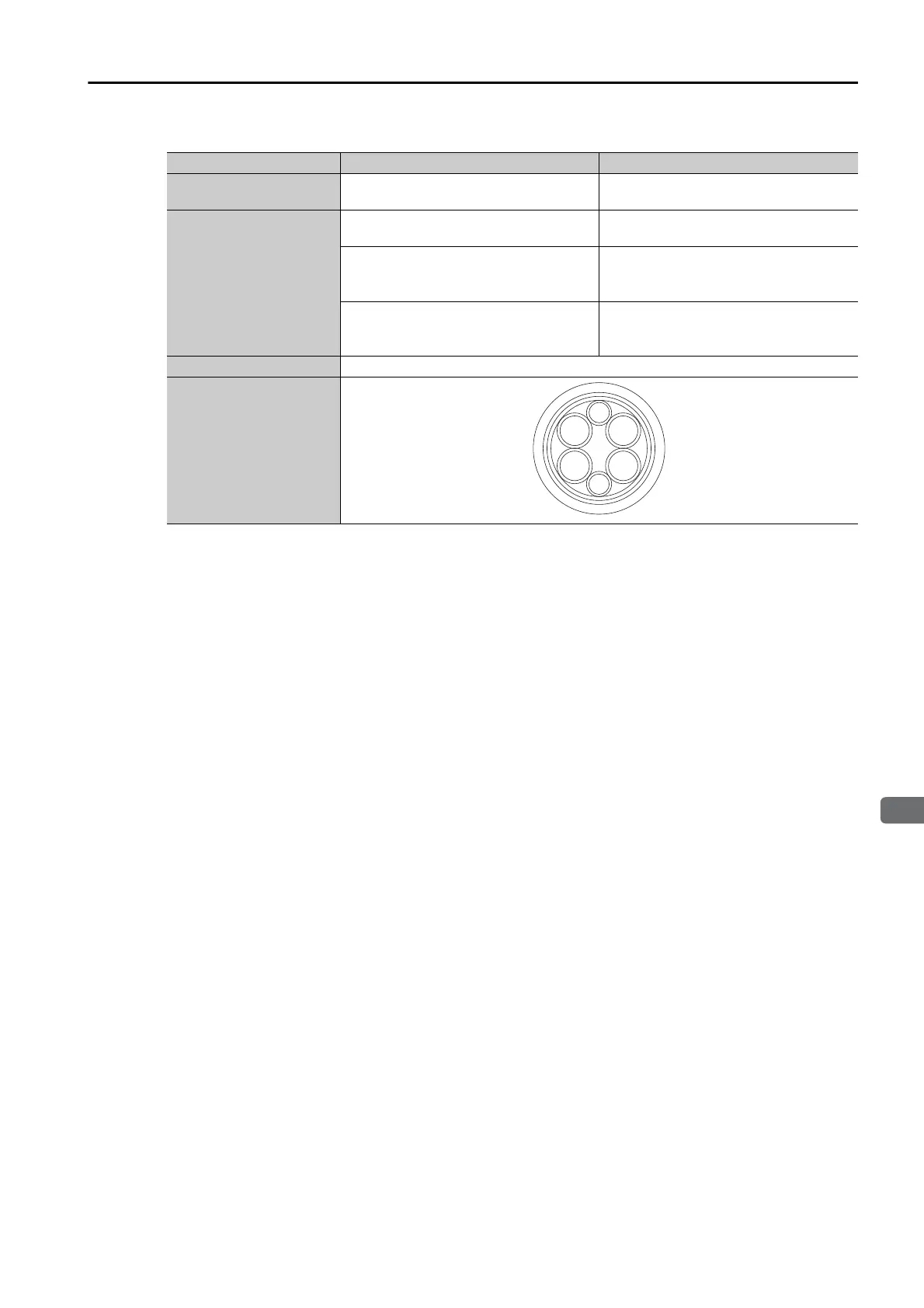

Internal Structure and
Lead Colors
Black
Blue White
Red
Black
Green
/yellow
To Next Page
