10 Attachment
YASKAWA TOMPC71061753A YASKAWA AC Drive GA500 Installation and Operation Instruction 301

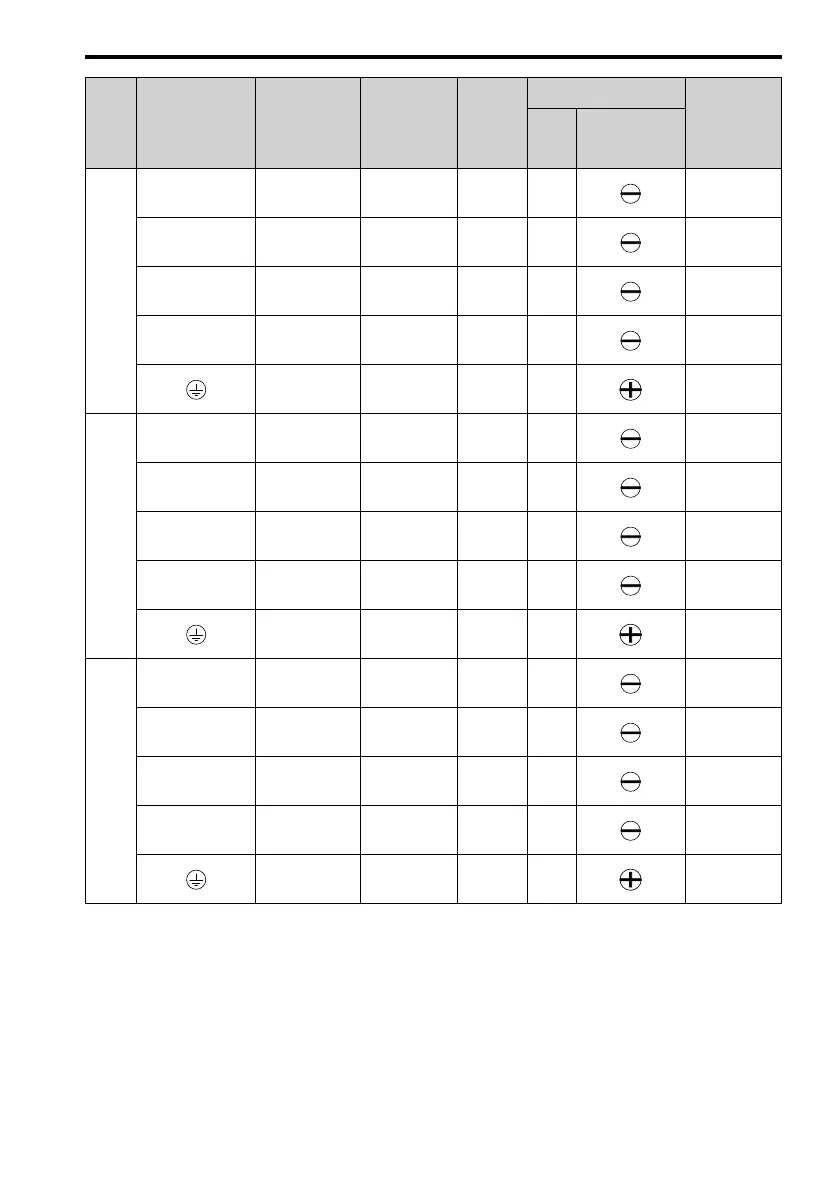

Model Terminal
Recommen
ded Gauge
AWG, kcmil
Applicable
Gauge
AWG, kcmil
Wire
Stripping
Length
*1
mm
Terminal Screw
Tightening
Torque
N∙m (in∙lb)
Size Shape
B006
L/L1, N/L2 12 14 - 10 8 M3
0.5 - 0.6
(4.4 - 5.3)
U/T1, V/T2, W/T3 14 14 - 12 8 M3
0.5 - 0.6
(4.4 - 5.3)
-, +1 12 14 - 10 8 M3
0.5 - 0.6
(4.4 - 5.3)
B1, B2 14 14 - 12 8 M3
0.5 - 0.6
(4.4 - 5.3)
10
*2
14 - 10
*2
- M4
1.2 - 1.5
(10.6 - 13.3)
B010
L/L1, N/L2 10 12 - 10 8 M3
0.5 - 0.6
(4.4 - 5.3)
U/T1, V/T2, W/T3 14 14 - 12 8 M3
0.5 - 0.6
(4.4 - 5.3)
-, +1 10 12 - 10 8 M3
0.5 - 0.6
(4.4 - 5.3)
B1, B2 14 14 - 12 8 M3
0.5 - 0.6
(4.4 - 5.3)
10
*2
14 - 10
*2
- M4
1.2 - 1.5
(10.6 - 13.3)
B012
L/L1, N/L2 8 14 - 8 10 M4
1.5 - 1.7
(13.5 - 15)
U/T1, V/T2, W/T3 12 14 - 10 10 M4
1.5 - 1.7
(13.5 - 15)
-, +1 8 14 - 8 10 M4
1.5 - 1.7
(13.5 - 15)
B1, B2 14 14 - 12 10 M4
1.5 - 1.7
(13.5 - 15)
10
*2
14 - 10
*2
- M4
1.2 - 1.5
(10.6 - 13.3)
