5 I/O Signal Allocation
5.1 I/O Module Setting
5-7
167646-1CD
HW1481264
Interface Board for Welding
Power Supply

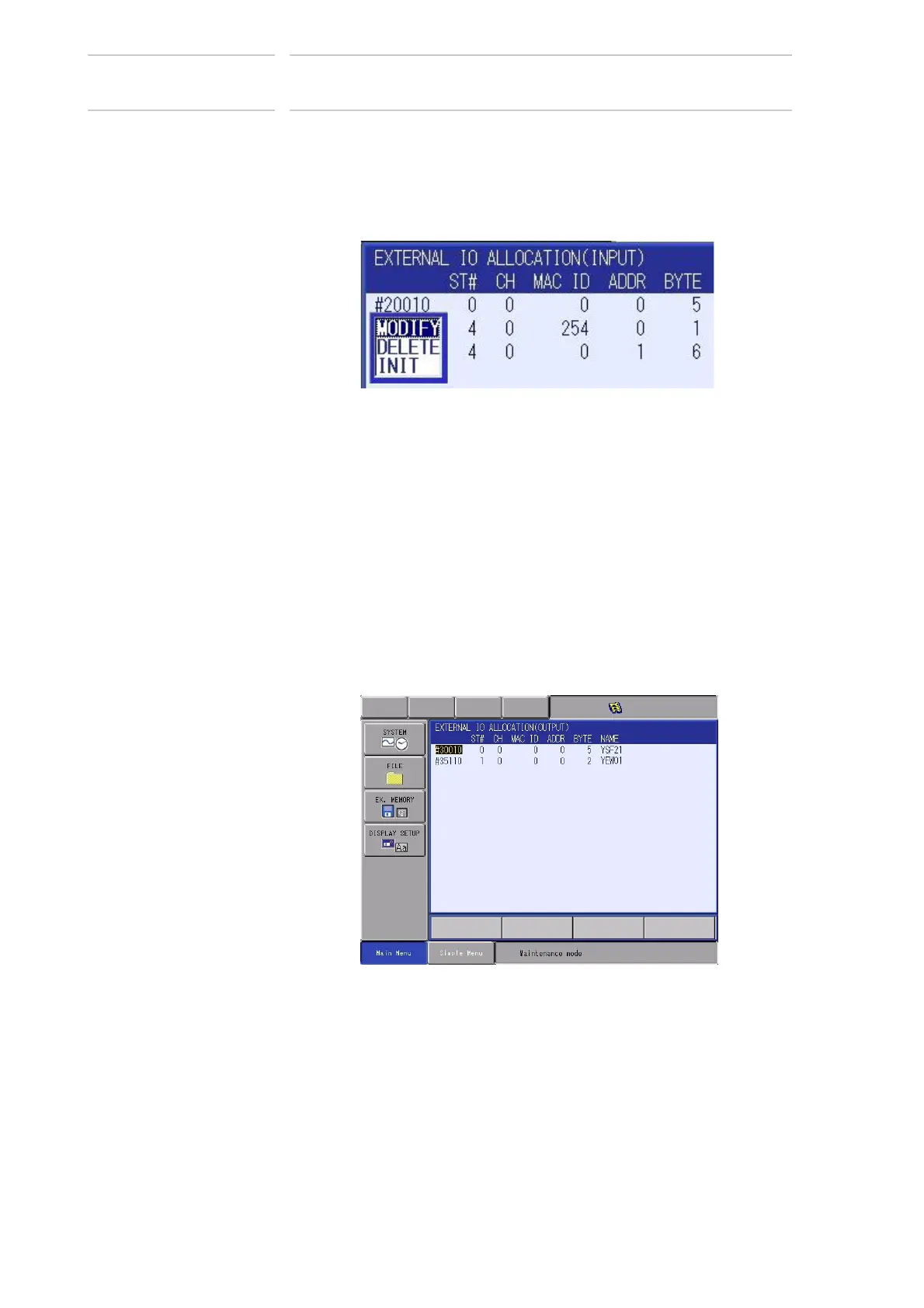

13. Select the external I/O signal number (at the change source) to be
changed.
– The select menu appears.
– Select the {INIT} when add the YEW board to the system, which has
already allocated the external I/O allocation manually.
14. Select {MODIFY], and input the external input signal number (at the
change destination) to be changed.
– The external input signal number is changed.
15. Likewise, select/modify the number of the external input signal.
– Repeat select/modify until it becomes the desired allocation to set
up.
16. Press {ENTER}.
– The allocation window of the external output signal appears.
17. Select/modify the number of the external output signal same as the
external input signal.
– Repeat select/modify until it becomes the desired allocation to set
up.
