5 I/O Signal Allocation
5.1 I/O Module Setting
Interface Board for Welding
Power Supply

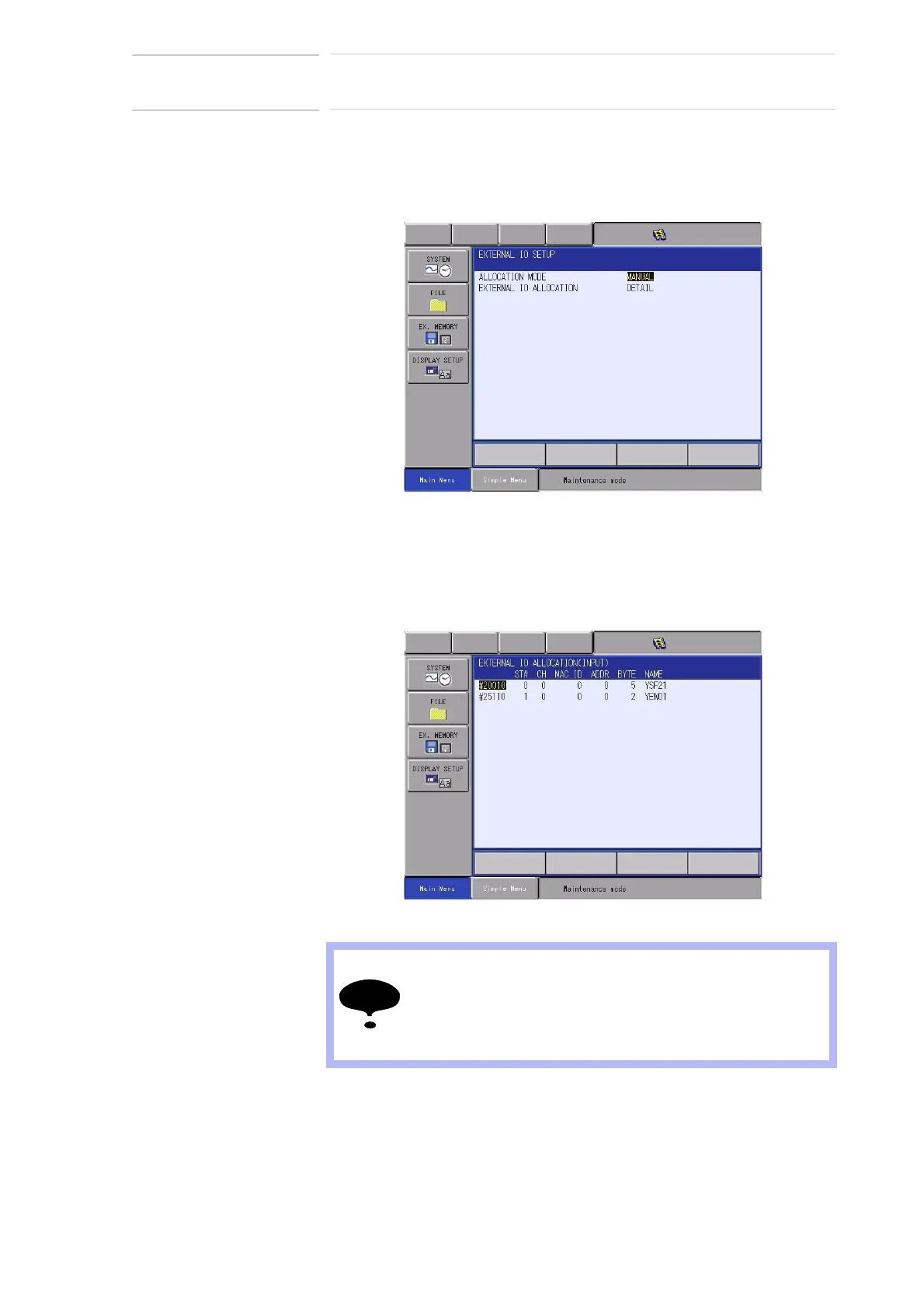

11. Select the allocation mode to set up.
– Select {AUTO} to allocate I/O signal allocation automatically.
Select {MANUAL} to allocate I/O signal allocation manually.
– The selected allocation mode is set up.
12. Select {DETAIL} of {EXTERNAL IO ALLOCATION}.
– When select {AUTO}, the following procedures No.13 to 15 are not
necessary. Operate the procedure from No.16.
– When select {MANUAL}, operate the following procedures No.13 to
15 accordant with the setting manually.
The IO allocation of the XEW board and the YEW board
cannot be changed even if select the {MANUAL} in the
allocation mode.
The error [ERROR 8230: Cannot change the setting for
XEW or YEW board.] occurs if attempt to change.
