4.3 Connection Methods
4-7
(2) Rotate the main power supply switch to the "OFF" position and open the door gen-
tly.

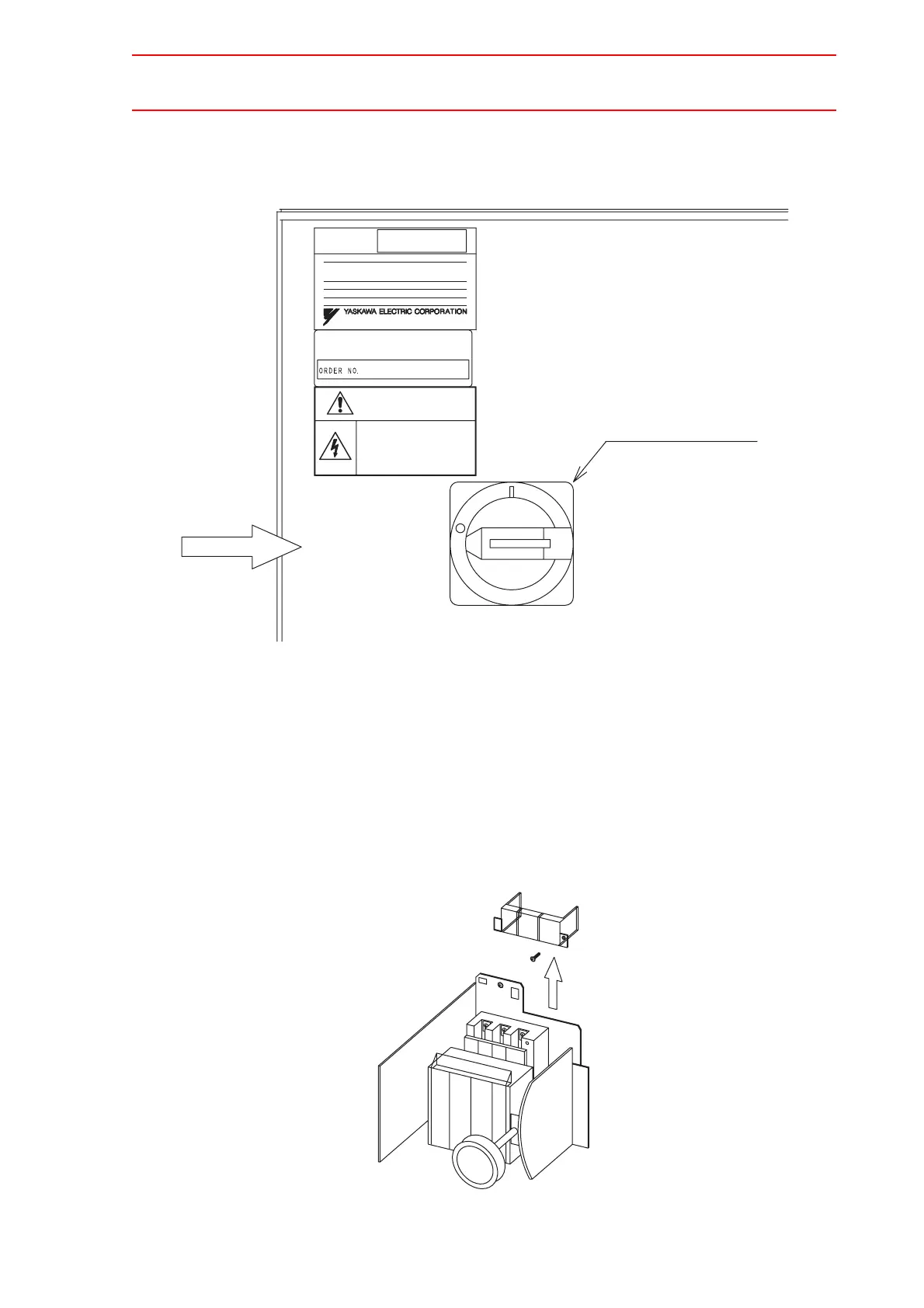

Rotating the main power supply switch to the OFF position.
2. Confirm that the primary power supply is OFF.
3. Make a hole in the plate and run the primary power supply cable through it. It is located
on the top or on the left side of the NX100.
Attach the plate and cable firmly so that it won’t shift or slide out of place.
(1) Remove the primary cover screw of the fuse disconnect switch which is on the
upper left side of the NX100, and pull out the cover upward.
Pulling Out the Cover
kA
kVA
NJ2533-1
MADE!IN!JAPAN
TYPE
480V
SERIAL!No.
DATE
50/60Hz
INTERRUPT!CURRENT
POWER!SUPPLY
NX100/
ERCR-
3PHASE
Main!power!supply!switch
NJ1530
WARNING
High!Voltage
with!power!ON.
Do!not!open!the!door
ON
O
F
F
THE!MANIPULATOR!AND!THE!CONTROLLER
SHOULD!HAVE!SAME!ORDER!NUMBER.
(Fuse!disconnect!switch)
To Next Page
