7.3 CPU Unit
7-13
" Connection wire with Robot User I/O Connector (CN07, 08, 09, 10)

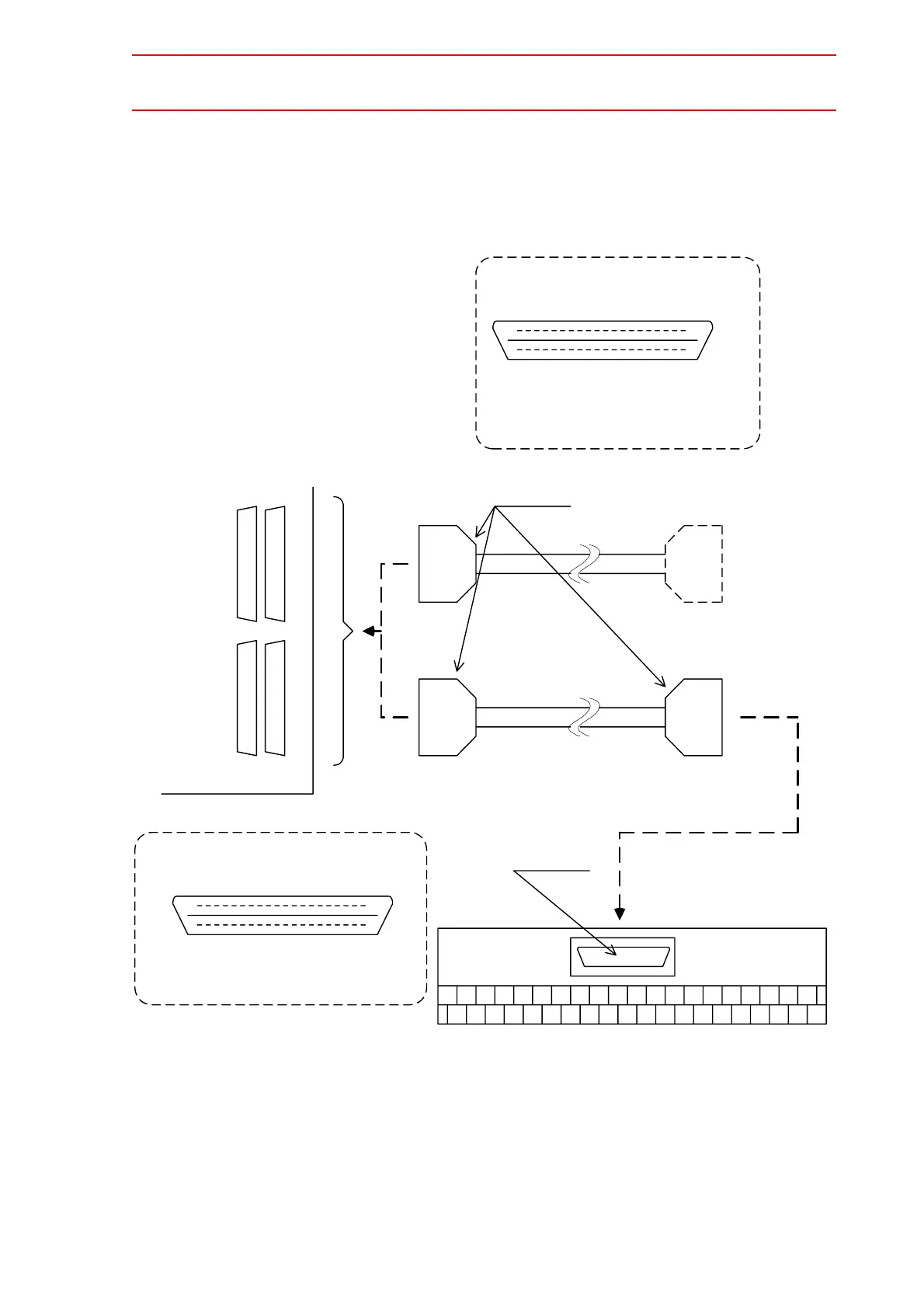

Please refer to the figure below when you manufacture the cable connecting with robot user
I/O connector (CN07, 08, 09, 10) of robot I/F unit (JZNC-NIF01). (The cable side connector
and the I/O terminal block are the options)
Connector A detailed (Cable side)
(JZNC-NIF01)
CN08 CN07
CN10 CN09
Connector Type: FCN-361J040-AU (Fujitsu)
(Soldering pin type)
Food Type: FCN-360C040-B (Fujitsu)
Connector A
CN07,CN08,CN09,CN10, Connector B detailed
Connector Type: FCN-365P040-AU (Fujitsu)
39373533312927252321191715131197531
403836343230282624222018161412108642
I/O Terminal block (Terminal size: M3)
Type: PX7DS-40V6-R (Yoshida
Denki)
Connector B
I/O Cable (form NIF
to Peripheral Device)
I/O Cable (from NIF to
Terminal block)
Robot I/F unit
B20
A20
B1
A1
B20
A20
B1
A1
To Next Page
