7.3 CPU Unit
7-22
" Maintenance Input
If the signal input circuit is short-circuited, the Enable switch (DSW) are disabled.
Usually, use the system with this signal circuit open (nothing connected).
If the circuit for this signal must be used for an unavoidable reason, be sure to use a switch
with a key that is kept under the care of the system manager.

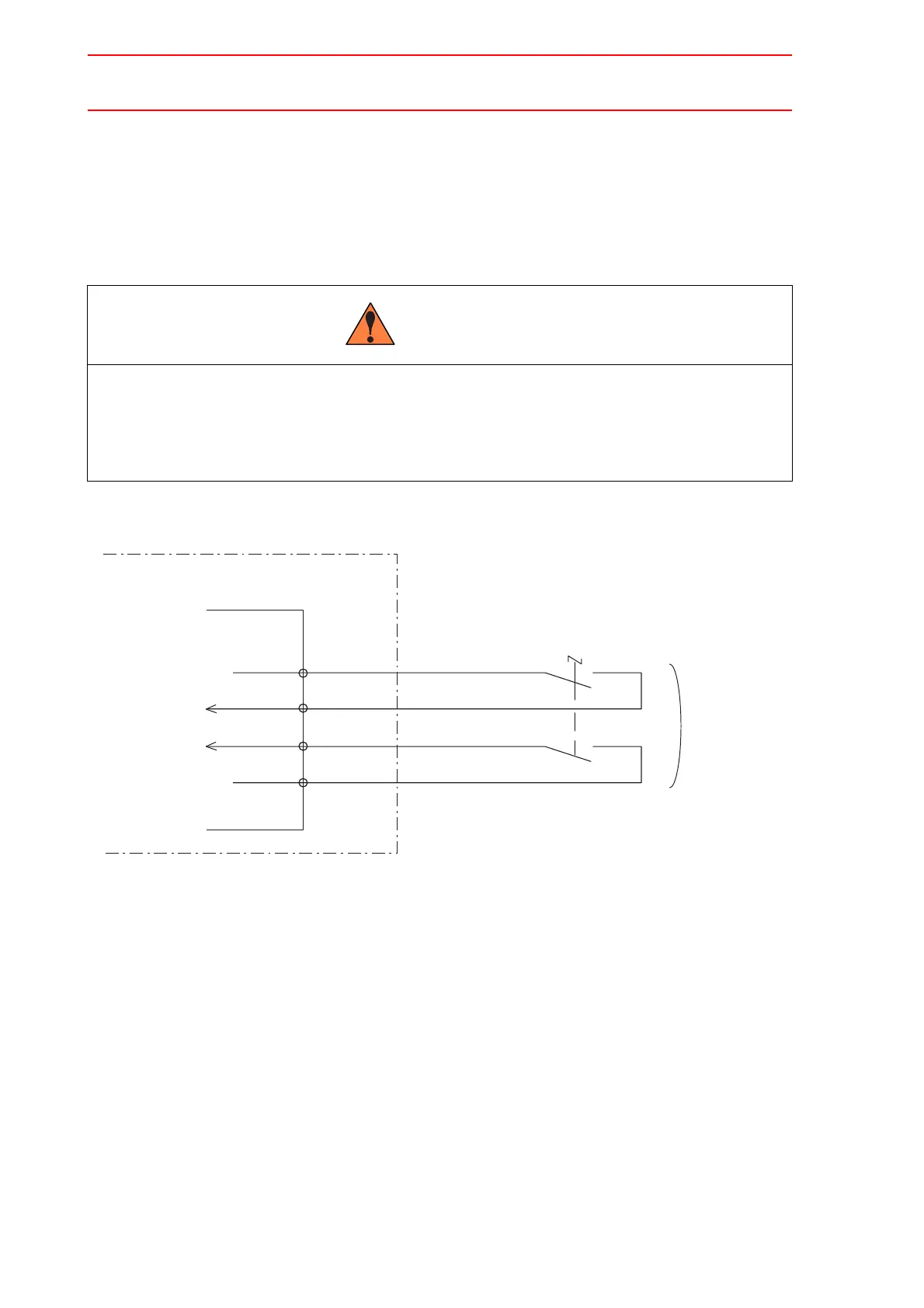

Connection for Maintenance Input
• This signal is used only for maintenance by YASKAWA’s service person-
nel.
For your safety, never use this signal for any purpose.
Failure to observe this instruction may cause major disaster.
WARNING
-13
-14
-15
-16
+24V2
MAINTE1
MAINTE2
024V
Robot!system!input!terminal!block
MXT
NX100
Turn!ON/OFF!
at!the!same!time
(Use!the!switch
!with!key.)
Maintenance!input
To Next Page
