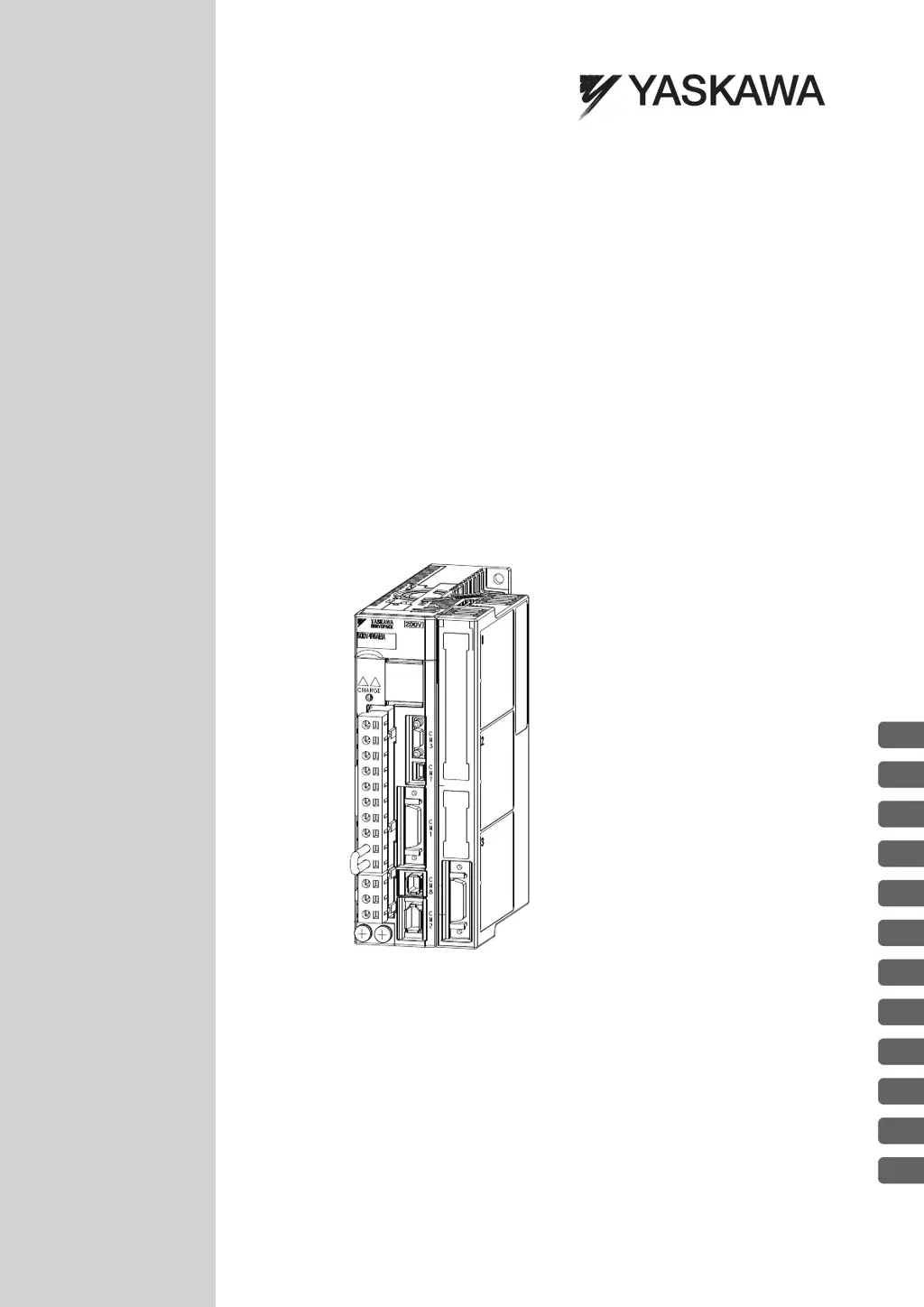

MANUAL NO. YEU SIEP C720829 24A
Σ-V Series
AC Servo Drives
Checking Products
Specifications
Hardware Installation
Applicable Scope
Encoder Interfaces
Hall Sensor Signals Interface
Set-up Procedure for Fully-closed Loop Control
Set-up Procedure for Semi-closed Loop Control
Motor and Scale Parameter File
SERVOPACK with Semi-closed Loop Control for Rotary Motors
SERVOPACK with Semi-closed Loop Control for Linear Motors
Error Lists
1
2
3
4
5
6
7
8
9
10
11
12
USER'S MANUAL
Model: SGDV-OFB03A
Universal Feedback Module Type 3
To properly use the product, read this manual thoroughly
and retain for easy reference, inspection and maintenance.
Ensure the end user receives this manual.
Please check www.yaskawa.eu.com for up-to-date versions.

Table of Contents

Questions and Answers

  • S
    Steven MatthewsAug 12, 2025
    How to fix polarity detection failure A.C50 on YASKAWA S-V Seres?
    • L
      luis86Aug 12, 2025
      If you encounter a 'Polarity Detection Failure A.C50' with your YASKAWA Servo Drives, it could be due to several reasons. First, verify that the resolution and motor phase selection (Pn080.1) settings are correct, referring to the encoder specifications and feedback signal conditions. Also, noise in the scale signal can cause this issue; ensure proper grounding and check the encoder cable. If the motor is experiencing external torque, try to reduce it, or increase the speed loop gain (Pn481). Finally, if the resolution is too rough, consider using the recommended resolution or increasing the command speed (Pn493), noting that this will increase the movement range.
  • G
    georgechristinaAug 20, 2025
    What to do if overtravel is detected during polarity detection A.C51 on YASKAWA S-V Seres?
    • N
      nliuAug 20, 2025
      If you are experiencing an 'Overtravel Detected during Polarity Detection A.C51' alarm with your YASKAWA Servo Drives, this indicates that the OT signal was detected during the polarity detection function. To resolve this, ensure that the motor is positioned where the OT signal is not detected before initiating the function.
  • B
    Bobby MedinaAug 27, 2025
    Why polarity detection failure 2 A.C54 occurs on YASKAWA Servo Drives?
    • D
      Dawn HillAug 27, 2025
      If you are facing a 'Polarity Detection Failure 2 A.C54' with your YASKAWA Servo Drives, it might be due to external torque being applied to the motor. To address this, try increasing the confirmation torque command (Pn495) and the allowable error range (Pn498). Keep in mind that increasing the error range may also increase the motor temperature.
  • K
    Kelly JacksonSep 4, 2025
    What to do if YASKAWA S-V Seres show out of range of motion for polarity detection A.C53?
    • J
      Jennifer PhillipsSep 4, 2025
      If you encounter an 'Out of Range of Motion for Polarity Detection A.C53' error with your YASKAWA Servo Drives, it means the movement range during detection has been exceeded. If the range (Pn494) is at its default value, investigate why the motor might have moved unexpectedly and take appropriate corrective actions.

YASKAWA S-V Seres Specifications

General IconGeneral
SeriesS-V Series
ManufacturerYASKAWA
CategoryServo Drives
FeedbackIncremental encoder, Absolute encoder
TypeServo Drives
Communication InterfaceMECHATROLINK-II, MECHATROLINK-III, EtherCAT
Protection FeaturesOvervoltage protection, Undervoltage protection
