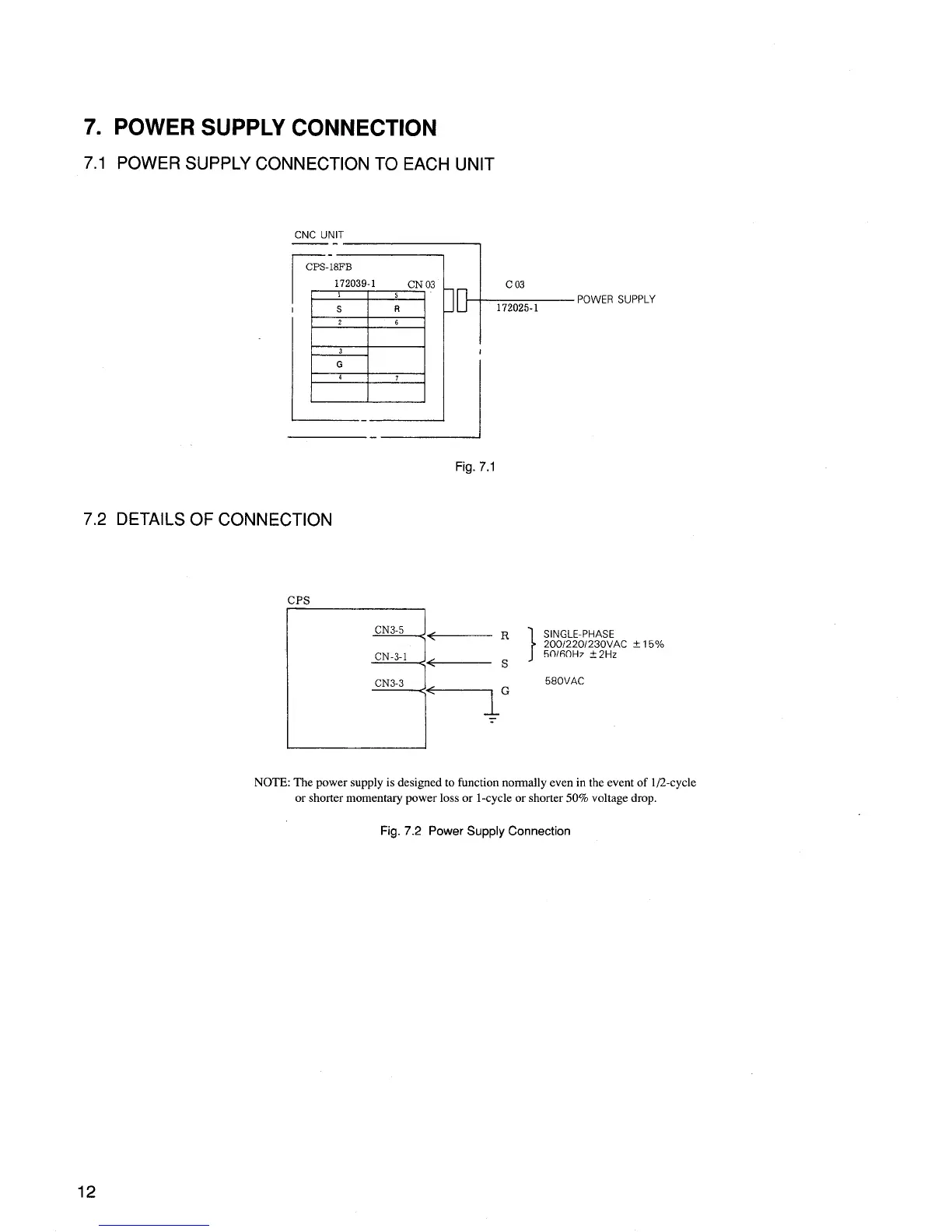

YASKAWA YASNAC J50

7. POWER SUPPLY CONNECTION
7.1 POWER SUPPLY CONNECTION TO EACH UNIT
CNC UNIT
—-~
—.
CPS-18FB
172039-1
CN 03
m
w
3
G
4
7
ld-----
C03
POWER
172025-1
I
Fig. 7.1
7.2 DETAILS OF CONNECTION
:Ps
1
T
CN3-3-T-G
T
SUPPLY
SINGLE-PHASE
200/220/230VAC f 15°A
!i13/IW)H7 +2Hz
580VAC
NOTE: The power supply is designed to function normally even in the event of l/2-cycle
or shorter momentary power loss or 1-cycle or shorter 50% voltage drop.
Fig. 7.2 Power Supply Connection
