e. When “1,” 112,”“3,” ‘14,!!IORGI! kev~ ~re

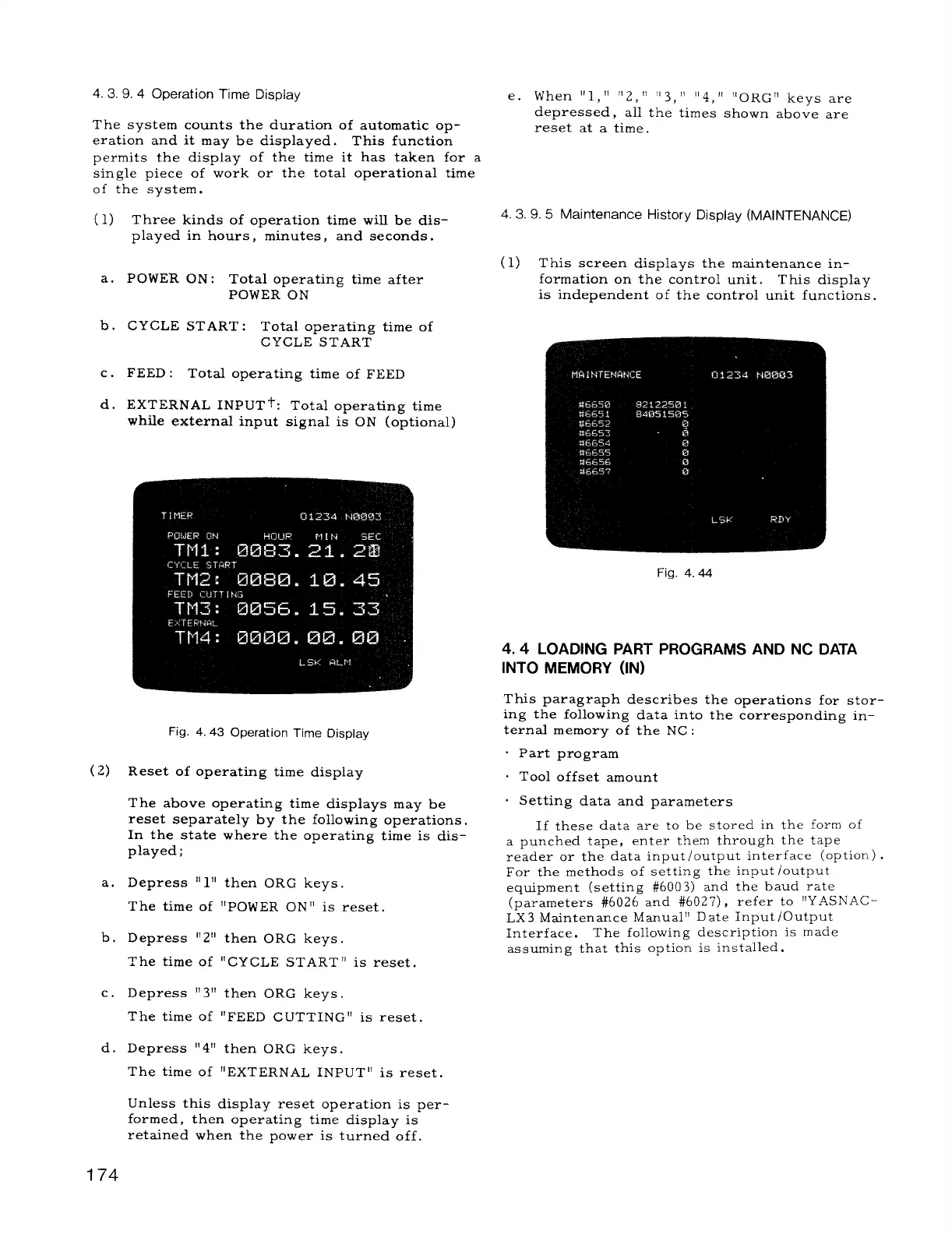

4.3.9, 4 Operation Time Display
The system counts the duration of automatic op-
eration and it may be displayed. This function
permits the display of the time it has taken for a
single piece of work or the total operational time
of the system.
depressed,
all the times shown above are
reset at a time.
(1) Three kinds of operation time will be dis-
4. 3.9.5 Maintenance History Display (MAINTENANCE)
played in hours, minutes, and seconds.
(1) This screen displays the maintenance in-
s. POWER ON:
Total operating time after
formation on the control unit.
This display
POWER ON is independent of the control unit functions.
b . CYCLE START: Total operating time of
CYCLE START
c.
FEED :
Total operating time of FEED
d. EXTERNAL INPUT ‘f: Total operating time
while external input signal is ON (optional)
Fig. 4.44
4.4 LOADING PART PROGRAMS AND NC DATA
INTO MEMORY (IN)
(2)
a.
b.
c.
d.
174
Fig. 4.43 operation Time Display
Reset of operating time display
The above operating time displays may be
reset separately by the following operations.
In the state where the operating time is dis-
played;
Depress ‘1lrlthen ORG keys.
The time of “POWER ON” is reset.
Depress 112!!then ORG keys .
The time of “CYCLE START”
Depress ‘1311then ORG keys .
is reset.
The time of “FEED CUTTING” is reset.
Depress “4” then ORG keys.
The time of “EXTERNAL INPUT” is reset.
Unless this display reset operation is per-
formed, then operating time display is
retained when the power is turned off.
This paragraph describes the operations for stor-
ing the following data into the corresponding in–
ternal memory of the NC :
. Part program
. Tool offset amount
. Setting data and parameters
If these data are to be stored in the form of
a punched tape, enter them through the tape
reader or the data input/output interface (option).
For the methods of setting the input/output
equipment (setting #6003) and the baud rate
(parameters #6026 and #6027), refer to “yASNAC-
LX3 Maintenance Manual” Date Input/Output
Interface.
The following description is made
assuming that this option is installed.
To Next Page
